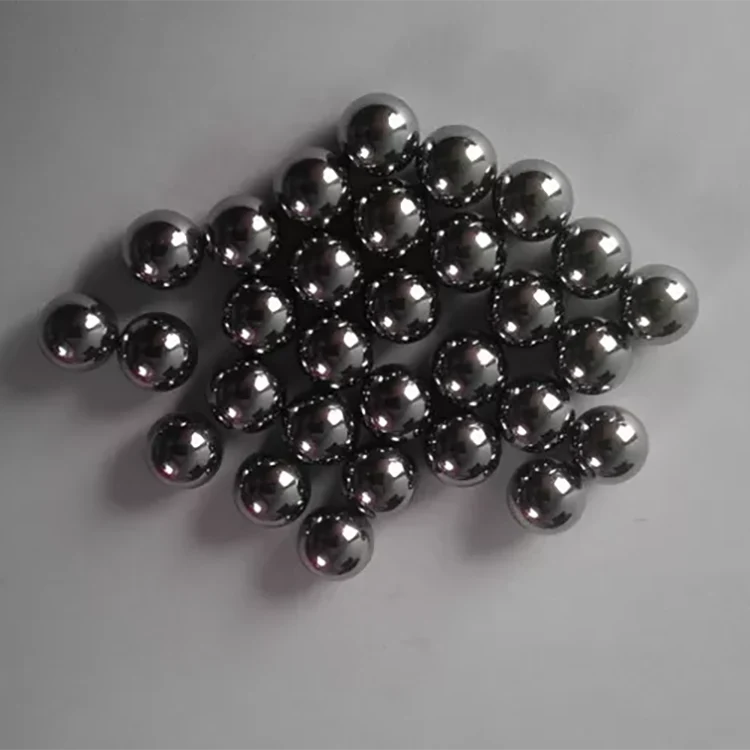

                                    Ceramic Plain Bearings Sic Ceramic Balls
                                    • Ceramic Plain Bearings Sic Ceramic BallsCeramic Plain Bearings Sic Ceramic Balls
                                    • Ceramic Plain Bearings Sic Ceramic BallsCeramic Plain Bearings Sic Ceramic Balls
                                    • Ceramic Plain Bearings Sic Ceramic BallsCeramic Plain Bearings Sic Ceramic Balls

                                    Ceramic Plain Bearings Sic Ceramic Balls

                                    As the professional manufacturers, Top Bearings would like to provide you Ceramic Plain Bearings Sic Ceramic Balls. And we will offer you the best after-sale service and timely delivery.

                                    Send Inquiry

                                    Product Description

                                    As the professional manufacturers, Top Bearings would like to provide you Ceramic Plain Bearings Sic Ceramic Balls. And we will offer you the best after-sale service and timely delivery.


                                    Product Parameter

                                    Material:

                                    Sic Ceramic

                                    Density:

                                    3.2 G/cm3

                                    Grad:

                                    G5-G200

                                    HV Hardness:

                                    2400 HRC

                                    Coefficient Of Expansion:

                                    4.0 10^-6/℃

                                    The Highest Temperature:

                                    800℃

                                    High Light:

                                    full ceramic bearings

                                    ceramic ball bearings



                                    Sic Ceramic Ball

                                    The density of Sic Ceramic Ball is 3.2g/cm3 and it’s the same as Si3N4 ball, at 1400℃, the intension and rigidity almost couldn’t be changed. Sic Ceramic Ball has the self-lubrication that can solve the pollution of lubricate medium. Comparing with Si3N4, Sic Ceramic Ball has higher rigidity, lower anti-press strength and lower rupture toughness.



                                    Staple Material and Manufacturing Presision

                                    Ceramic Balls

                                    Plastic balls

                                    Glass Balls

                                    Stainless Balls

                                    meterial

                                    Zr02,Si3N4,SiC,Al2O3

                                    POM,PE,PP,PA,UPE,PEEK

                                    GLASS

                                    440C,304,316,316L

                                    grad

                                    G5-G200

                                    G100-G1000

                                    G100-G1000

                                    G10-G200



                                    Staple size of the balls

                                    Size(inch)

                                    Size(mm)

                                    Size(inch)

                                    Size(mm)

                                    1.5

                                    1/16"

                                    1.588

                                    2

                                    3/32

                                    2.381

                                    1/8"

                                    3.175

                                    5/32"

                                    3.969

                                    3/16"

                                    4.763

                                    7/32"

                                    5.556

                                    1/4"

                                    6.35

                                    17/64"

                                    6.747

                                    7

                                    9/32"

                                    7.144

                                    5/16"

                                    7.938

                                    11/32"

                                    8.731

                                    3/8"

                                    9.525

                                    13/32"

                                    10.319

                                    7/16"

                                    11.112

                                    29/64"

                                    11.509

                                    15/32"

                                    11.906

                                    12

                                    31/64"

                                    12.303

                                    1/2"

                                    12.7

                                    17/32"

                                    13.494

                                    14

                                    9/16"

                                    14.288

                                    19/32"

                                    15.081

                                    5/8"

                                    15.875

                                    21/32"

                                    16.669

                                    11/16"

                                    17.463

                                    23/32"

                                    18.256

                                    3/4"

                                    19.05

                                    25/32"

                                    19.844

                                    20

                                    13/16"

                                    20.638

                                    7/8"

                                    22.225

                                    15/16"

                                    23.812

                                    1"

                                    25.4

                                    1-1/16"

                                    26.988

                                    1-1/8"

                                    28.575

                                    1-3/16"

                                    30.163

                                    1-1/4"

                                    31.75

                                    1-3/8"

                                    34.925

                                    35

                                    1-1/2"

                                    38.1

                                    1-5/8"

                                    41.275

                                    1-11/16"

                                    42.863

                                    1-7/8"

                                    47.625

                                    2"

                                    50.8



                                    Tolerance and surface roughness of the balls

                                    Grade

                                    Variation of ball diameter

                                    Deviation from (△Sph)

                                    Surface roughness spherical from(Ra)

                                    not over μ m

                                    3

                                    0.08

                                    0.08

                                    0.012

                                    5

                                    0.13

                                    0.13

                                    0.02

                                    10

                                    0.25

                                    0.25

                                    0.025

                                    16

                                    0.4

                                    0.4

                                    0.032

                                    20

                                    0.5

                                    0.5

                                    0.04

                                    28

                                    0.7

                                    0.7

                                    0.05

                                    40

                                    1

                                    1

                                    0.08

                                    60

                                    1.5

                                    1.5

                                    0.1

                                    100

                                    2.5

                                    2.5

                                    0.125

                                    200

                                    5

                                    5

                                    0.2



                                    Ceramic Plain Bearings Sic Ceramic Balls , Higher rigidity Lower Rupture Toughness 0
