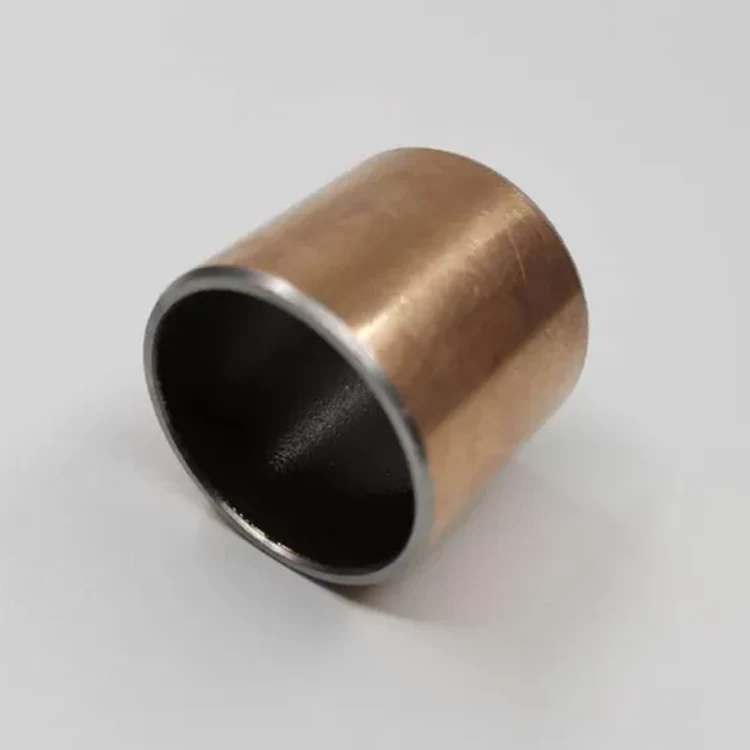

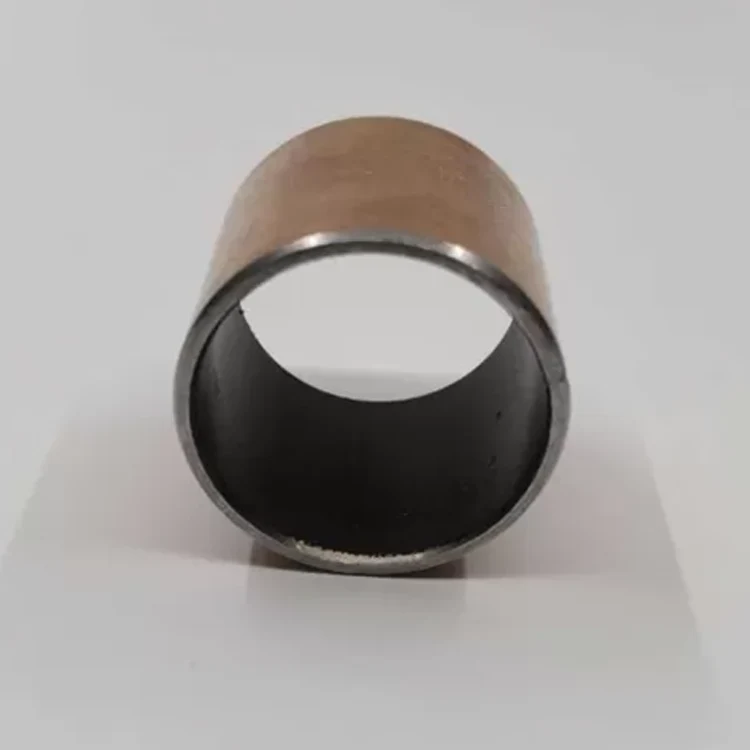

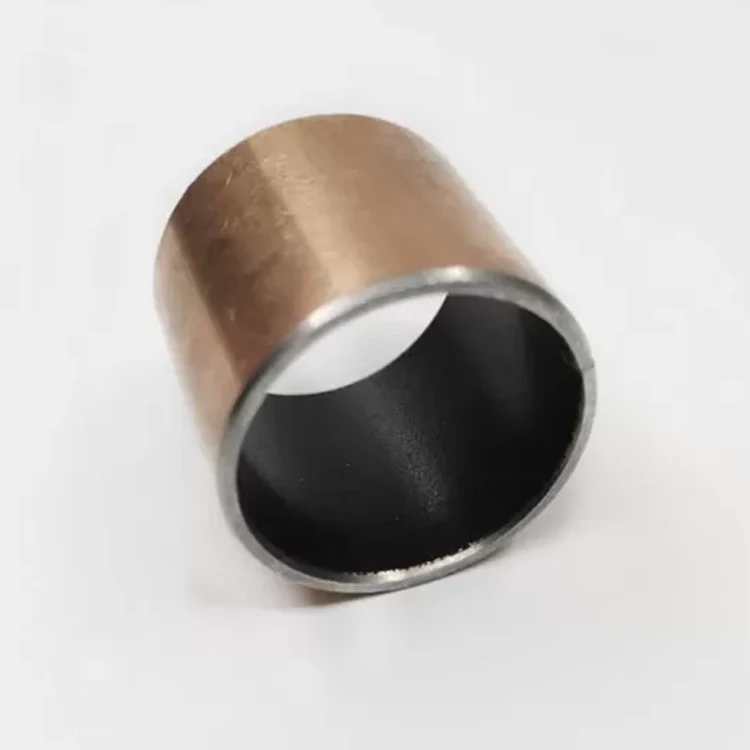

                                    Du Bushing Self Lubricating Bearings Equivalent Garlock
                                    • Du Bushing Self Lubricating Bearings Equivalent GarlockDu Bushing Self Lubricating Bearings Equivalent Garlock
                                    • Du Bushing Self Lubricating Bearings Equivalent GarlockDu Bushing Self Lubricating Bearings Equivalent Garlock
                                    • Du Bushing Self Lubricating Bearings Equivalent GarlockDu Bushing Self Lubricating Bearings Equivalent Garlock

                                    Du Bushing Self Lubricating Bearings Equivalent Garlock

                                    Top Bearings is a professional China Du Bushing Self Lubricating Bearings Equivalent Garlock manufacturers and suppliers, if you are looking for the best Du Bushing Self Lubricating Bearings Equivalent Garlock with low price, consult us now!

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is a professional China Du Bushing Self Lubricating Bearings Equivalent Garlock manufacturers and suppliers, if you are looking for the best Du Bushing Self Lubricating Bearings Equivalent Garlock with low price, consult us now!


                                    Product Parameter

                                    Material:

                                    Carbon Steel + Bronze+ Ptfe

                                    Types:

                                    Low Price Custom Metal Sleeve Flange Bearing Du Sf1 Bush Bushing

                                    Application:

                                    Printing And Dyeing Machines, And Machines Used In The Ocean Industry, Etc.

                                    Certification:

                                    STEEL BACKED BUSHING, DIN 1494 / ISO 3547, LOW-MAINTENANCE

                                    Supply Ability:

                                    Du Bushing Inch Size Dry Bushes Boccole Equivalent Manufacturers Self Lubricating Plain Bearings Suppliers

                                    Packaging Details:

                                    EXPORT CARTON WOOD PALLET WOODEN CASE

                                    High Light:

                                    Equivalent Garlock Self Lubricating Bearings, Self Lubricating Du Bushing, ISO16949 Self Lubricating Bearings



                                    Self Lubricating Inch Size Boccole Equivalent Garlock Bearings.

                                    Du Bushing Inch Size Dry Bushes Boccole Equivalent, Garlock DU bushing bearings DU boccole material or equivalent, glacier Garlock bearings.


                                    Bushing Outside OD*Inside Dia*Length

                                    TOP BEARING is always focusing on Garlock bearings, by satisfying the ever-increasing demands of modernization of customers. TOP BEARING is a professional Du bush manufacturers, We could provide Du bushing replacement according to the international standards, and could also provide as per the customers' requests. With stable Du bushing replacement quality and best level of services, our products have been exported to dozens of countries and regions from Europe, the United States, and Southeast Asia, etc.

                                    Du bushing replacement made of metal-backed, PTFE-based (polytetrafluoroethylene) polymer bearing materials have a common structure, consisting of a metal backing bonded to a porous bronze sinter layer. This bronze sinter layer is impregnated and overlaid with the filled PTFE bearing lining.
                                    The metal backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bond between the backing and the bearing lining. This construction promotes dimensional stability and improves Du bushing replacement conductivity.


                                    Du bushing replacement, PTFE lined, steel backing, self-lubricating dry bearings

                                    PART NO. DIMENSIONS QTY
                                    54-DU-80 3.375” ID x 3.562” OD x 5.000” LG 400
                                    104-DU-72 6.500” ID x 6.687” OD x 4.500” LG 600
                                    84-DU-64 5.250” ID x 5.437” OD x 4.000” LG 800
                                    88-DU-80 5.500” ID x 5.687” OD x 5.000” LG 150
                                    128-DU-80 8.000” ID x 8.187” OD x 5.000” LG 800
                                    PTFE / Fibre + Bronze + Steel Backing + Copper Plating / Tin-Plating

                                    Sintered PTFE and Bronze on Steel Backing, surface with copper-plating or tin-platin



                                    Du bushing replacement Features

                                    TOP bearings Suit for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.



                                    Du bushing replacement’Structures

                                    1. PTFE/Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
                                    2. Sintered bronze powder thickness 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-Fibre mixture.
                                    3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
                                    4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.



                                    Du bushing replacement’Typical Applications

                                    TOP bearings‘material meets the demanding criteria for long life and trouble-free performance with or without lubrication.

                                    Automotive: tractors, combines, crop sprayers, earthmovers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...

                                    Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...

                                    Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...

                                    Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.



                                    PTFE bushings

                                    Technical parameter Unit Value
                                    Maximum load (static) psi 36259
                                    Temperature range °F -392 / +536
                                    Coefficient of friction 0.02 – 0.20
                                    Maximum sliding velocity ft/s 3.28
                                    Size range (inner dia.) inch 1/8 – 4



                                    Du bushings’ catalog

                                    DU Bushing Viiplus Nominal Diameter Width Wall Shaft Housing Installed Bushing ID Clearance
                                    Thickness Diameter ID
                                    Part Number Part Number ID OD Nominal min / max min / max min / max min / max min / max min / max
                                    02DU02 BUSHING 0202 1/8 3/16 1/8 0.115 0.0304 0.1236 0.1873 0.1253 0.001
                                    0.135 0.031 0.1243 0.1878 0.127 0.0034
                                    02DU03 BUSHING 0203 3/16 0.1775
                                    0.1975
                                      BUSHING 025025 5/32 7/32 5/32 0.14265 0.0304 0.1547 0.2186 0.1566 0.0012
                                    0.16625 0.031 0.1554 0.2191 0.1583 0.0036
                                      BUSHING 02504 1/4 0.24
                                    0.26
                                    03DU03 BUSHING 0303 3/16 1/4 3/16 0.1775 0.0304 0.1858 0.2497 0.1877 0.0012
                                    0.1975 0.031 0.1865 0.2503 0.1895 0.0037
                                    03DU04 BUSHING 0304 1/4 0.24
                                    0.26
                                    03DU06 BUSHING 0306 3/8 0.365
                                    0.385
                                    04DU04 BUSHING 0404 1/4 5/16 1/4 0.24 0.0304 0.2481 0.3122 0.2502 0.0012
                                    0.26 0.031 0.249 0.3128 0.252 0.0039
                                    04DU06 BUSHING 0406 3/8 0.365
                                    0.385
                                    05DU06 BUSHING 0506 5/16 3/8 3/8 0.365 0.0304 0.3106 0.3747 0.3127 0.0012
                                    0.385 0.031 0.3115 0.3753 0.3145 0.0039
                                    05DU08 BUSHING 0508 1/2 0.49
                                    0.51
                                    06DU06 BUSHING 0606 3/8 15/32 3/8 0.365 0.046 0.3731 0.4684 0.3752 0.0012
                                    0.385 0.0466 0.374 0.4691 0.3771 0.004
                                    06DU08 BUSHING 0608 1/2 0.49
                                    0.51
                                    06DU12 BUSHING 0612 3/4 0.74
                                    0.76
                                    07DU08 BUSHING 0708 7/16 17/32 1/2 0.49 0.046 0.4355 0.5309 0.4377 0.0012
                                    0.51 0.0466 0.4365 0.5316 0.4396 0.0041
                                    07DU12 BUSHING 0712 3/4 0.74
                                    0.76
                                    08DU06 BUSHING 0806 1/2 19/32 3/8 0.365 0.046 0.498 0.5934 0.5002 0.0012
                                    0.385 0.0466 0.499 0.5941 0.5021 0.0041
                                    08DU08 BUSHING 0808 1/2 0.49
                                    0.51
                                    08DU10 BUSHING 0810 5/8 0.615
                                    0.635
                                    08DU14 BUSHING 0814 7/8 0.865
                                    0.885
                                    09DU08 BUSHING 0908 9/16 21/32 1/2 0.49 0.046 0.5605 0.6559 0.5627 0.0012
                                    0.51 0.0466 0.5615 0.6566 0.5646 0.0041
                                    09DU12 BUSHING 0912 3/4 0.74
                                    0.76
                                    10DU08 BUSHING 1008 5/8 23/32 1/2 0.49 0.046 0.623 0.7184 0.6252 0.0012
                                    0.51 0.0466 0.624 0.7192 0.6272 0.0042
                                    10DU10 BUSHING 1010 5/8 0.615
                                    0.635
                                    10DU12 BUSHING 1012 3/4 0.74
                                    0.76
                                    10DU14 BUSHING 1014 7/8 0.865
                                    0.885
                                    11DU14 BUSHING 1114 11/16 25/32 7/8 0.865 0.046 0.6855 0.7809 0.6877 0.0012
                                    0.885 0.0466 0.6865 0.7817 0.6897 0.0042
                                    12DU08 BUSHING 1208 3/4 7/8 1/2 0.49 0.0614 0.7479 0.8747 0.7502 0.0011
                                    0.51 0.0623 0.7491 0.8755 0.7527 0.0048
                                    12DU12 BUSHING 1212 3/4 0.74
                                    0.76
                                    12DU16 BUSHING 1216 1 0.99
                                    1.01
                                    13DU12 BUSHING 1312 13/16 15/16 3/4 0.74 0.0614 0.8113 0.9372 0.8127 0.0002
                                    0.76 0.0623 0.8125 0.938 0.8152 0.0039
                                    13DU16 BUSHING 1316 1/1 0.99
                                    1.01
                                    14DU12 BUSHING 1412 7/8 1 3/4 0.74 0.0614 0.8729 0.9997 0.8752 0.0011
                                    0.76 0.0623 0.8741 1.0005 0.8777 0.0048
                                    14DU14 BUSHING 1414 7/8 0.865
                                    0.885
                                    14DU16 BUSHING 1416 1 0.99
                                    1.01
                                    15DU12 BUSHING 1512 15/16 1 1/16 3/4 0.74 0.0614 0.9363 1.0622 0.9377 0.0002
                                    0.76 0.0623 0.9375 1.063 0.9402 0.0039
                                    15DU16 BUSHING 1516 1/1 0.99
                                    1.01
                                    16DU12 BUSHING 1612 1 1 1/8 3/4 0.74 0.0614 0.9979 1.1247 1.0002 0.0011
                                    0.76 0.0623 0.9991 1.1255 1.0027 0.0048
                                    16DU16 BUSHING 1616 1/1 0.99
                                    1.01
                                    16DU24 BUSHING 1624 3/2 1.49
                                    1.51
                                    18DU12 BUSHING 1812 1 1/8 1 9/32 3/4 0.74 0.077 1.1226 1.2808 1.1252 0.0014
                                    0.76 0.0778 1.1238 1.2818 1.1278 0.0052
                                    18DU16 BUSHING 1816 1 0.99
                                    1.01
                                    20DU12 BUSHING 2012 1 1/4 1 13/32 3/4 0.74 0.077 1.2472 1.4058 1.2502 0.0014
                                    0.76 0.0778 1.2488 1.4068 1.2528 0.0056
                                    20DU16 BUSHING 2016 1 0.99
                                    1.01
                                    20DU20 BUSHING 2020 1 1/4 1.24
                                    1.26
                                    20DU28 BUSHING 2028 1 3/4 1.74
                                    1.76
                                    22DU16 BUSHING 2216 1 3/8 1 17/32 1 0.99 0.077 1.3734 1.5308 1.3752 0.0014
                                    1.01 0.0778 1.375 1.5318 1.3778 0.0056
                                    22DU22 BUSHING 2222 1 3/8 1.365
                                    1.385
                                    22DU28 BUSHING 2228 1 3/4 1.74
                                    1.76
                                    24DU16 BUSHING 2416 1 1/2 1 21/32 1 0.99 0.077 1.4972 1.6558 1.5002 0.0014
                                    1.01 0.0778 1.4988 1.6568 1.5028 0.0056
                                    24DU20 BUSHING 2420 1 1/4 1.24
                                    1.26
                                    24DU24 BUSHING 2424 1 1/2 1.49
                                    1.51
                                    24DU32 BUSHING 2432 2 1.99
                                    2.01
                                    26DU16 BUSHING 2616 1 5/8 1 25/32 1 0.99 0.077 1.6222 1.7808 1.6252 0.0014
                                    1.01 0.0778 1.6238 1.7818 1.6278 0.0056
                                    26DU24 BUSHING 2624 1 1/2 1.49
                                    1.51
                                    28DU16 BUSHING 2816 1 3/4 1 15/16 1 0.99 0.0923 1.7471 1.9371 1.7503 0.0016
                                    1.01 0.0934 1.7487 1.9381 1.7535 0.0064
                                    28DU24 BUSHING 2824 1 1/2 1.49
                                    1.51
                                    28DU28 BUSHING 2828 1 3/4 1.74
                                    1.76
                                    28DU32 BUSHING 2832 2 1.99
                                    2.01
                                    30DU16 BUSHING 3016 1 7/8 2 1/16 1 0.99 0.0923 1.8721 2.0621 1.8753 0.0016
                                    1.01 0.0934 1.8737 2.0633 1.8787 0.0066
                                    30DU30 BUSHING 3030 1 7/8 1.865
                                    1.885
                                    30DU36 BUSHING 3036 2 1/4 2.24
                                    2.26
                                    32DU16 BUSHING 3216 2 2 3/16 1 0.99 0.0923 1.9969 2.1871 2.0003 0.0016
                                    1.01 0.0934 1.9987 2.1883 2.0037 0.0068
