Product Description

As a professional high quality Flanged FB090 CuSn8P Plain Bush Bearing manufacturers, you can rest assured to buy Flanged FB090 CuSn8P Plain Bush Bearing and we will offer you the best after-sale service and timely delivery.

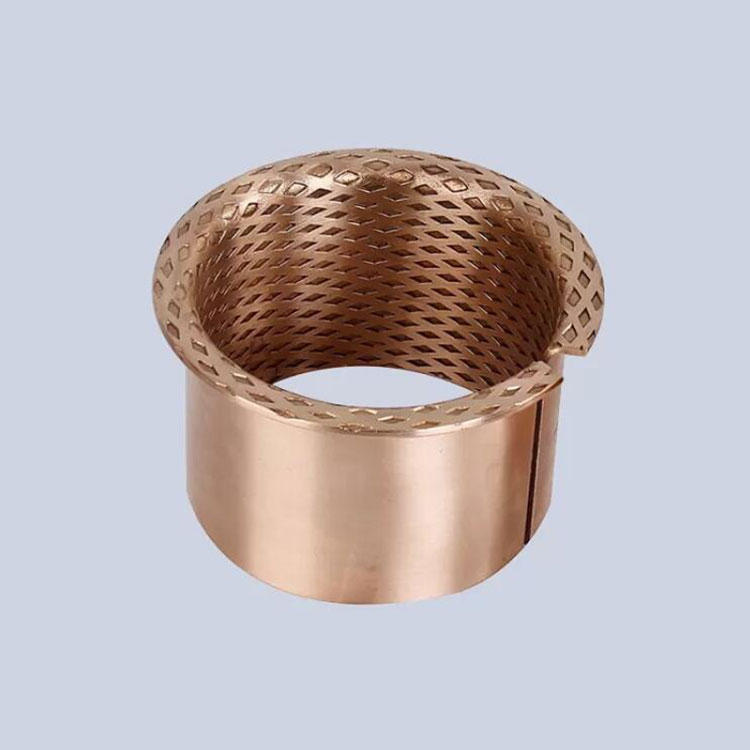

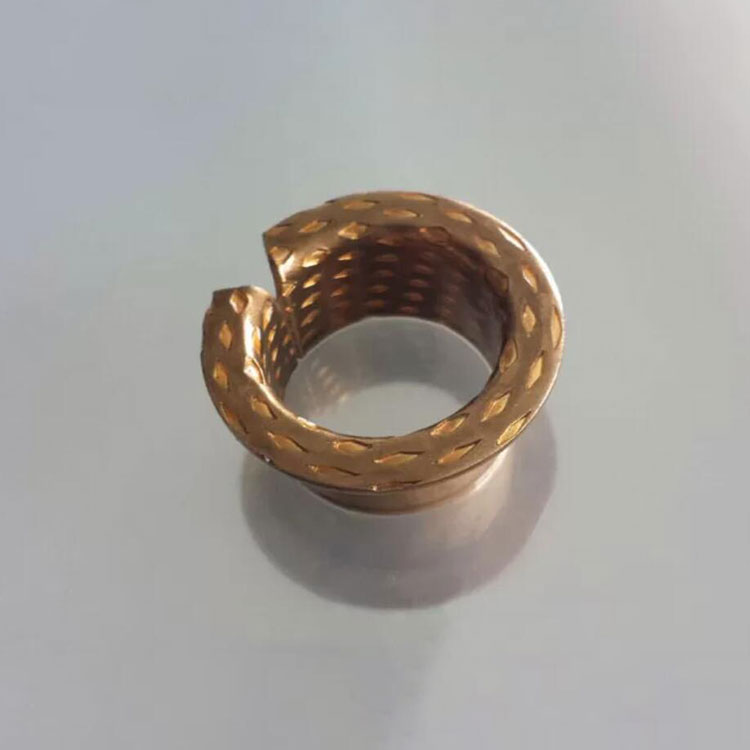

CuSn8P Wrapped Flanged FB090 Bearings is made of Tin-bronze CuSn8P with its surface punched with diamond or ball shape oil sockets which are preserved for oil saving. Tin-Bronze CuSn8P Wrapped Flanged FB090 Bearings are widely applied in conditions of heavier load but low running velocity, such as on agricultural, building and engineering machines, etc.

Tin-Bronze CuSn8P Wrapped Flanged FB090 Bearings has good anti-fatigue and load, anti-erosion and abrasion capacity.

Material:	Tin-Bronze CuSn8P	Types:	Wrapped Flanged Bearing
Application:	Agricultural, Building And Engineering Machines, Etc.	Max. Load Pressure:	100 N/mm²
Max. Working Temperature:	150℃	Hardness:	HB 90~150
High Light:	rod end bearing, plain bearing bush

Product NO.	Chemical Compositions
TOB 090	Cu	Sn	P
TOB 090	91.3	8.3	0.2

Physical and Mechanical Performance

Performance Index	Data	Performance Index		Data
Max. Load Pressure	100N/mm²	Mating Axis	Hardness	≥50 HRC
Max. Linear Velocity	2 m/s	Mating Axis	Roughness	Ra=0.4~1.0
Max. PV value	2.8N/mm²·m/s	Max. Working Temperature		150℃
Tensile Strength	460N/mm²	Friction Coefficient		μ 0.05~0.20
Yield Strength	260N/mm²	Heat Conducting Coefficient		58 W/(m*k)
Hardness	HB 90~150	Heat Expansion Coefficient		18.5 10^-6k^-
