                                    Miniature Radial Spherical Bearing Clearance Slide Type GE17ES

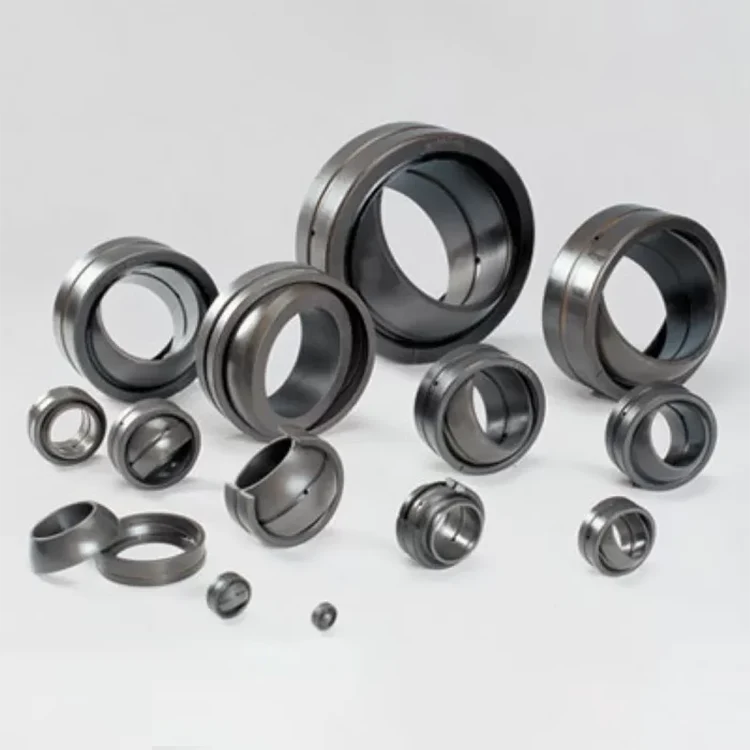

                                    • Miniature Radial Spherical Bearing Clearance Slide Type GE17ESMiniature Radial Spherical Bearing Clearance Slide Type GE17ES

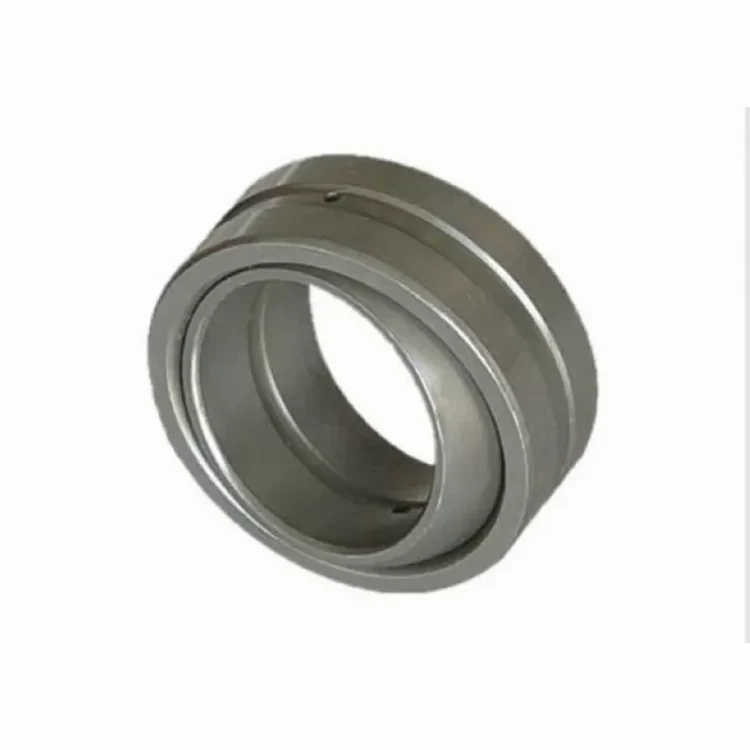

                                    • Miniature Radial Spherical Bearing Clearance Slide Type GE17ESMiniature Radial Spherical Bearing Clearance Slide Type GE17ES

                                    Miniature Radial Spherical Bearing Clearance Slide Type GE17ES

                                    Top Bearings is a leading China Miniature Radial Spherical Bearing Clearance Slide Type GE17ES manufacturers, suppliers and exporter.

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is a leading China Miniature Radial Spherical Bearing Clearance Slide Type GE17ES manufacturers, suppliers and exporter.


                                    Product Parameter

                                    Dimensions:

                                    120*180*85MM

                                    Basic Dynamic Load Rating, Radial:

                                    21300 N

                                    Basic Static Load Rating, Radial:

                                    106000 N

                                    Mass:

                                    0,039 Kg

                                    Material:

                                    Chrome Steel

                                    Application:

                                    In Hydraulic Engineering, Metal Forming Machine Tools, Engineering Machinery, Automation Equipment

                                    High Light:

                                    spherical thrust bearing, angular contact spherical plain bearing



                                    Description:

                                    Spherical Plain Bearing is a kind of silding bearing with special structure. Its structure is easier then roller bearing, which mainly makes up of inner race’s outer track and outer race’s inner track., it can bear bigger load, and according to the different style ng structure, it can bear radial load, axis load or united load. Joint bearing generally uses in undulatory motion with lower speed, because of the sliding surface is spherical, it also can do the slant movement in a range of the angle.



                                    Specifications:

                                    Spherical plain bearings GE17ES
                                    requiring maintenance, to DIN ISO 12 240-1
                                    d 17 mm Tolerance: 0 / -0,008
                                    D 30 mm Tolerance: 0 / -0,009
                                    B 14 mm Tolerance: 0 / -0,12
                                    0,04 - 0,082 mm Radial internal clearance
                                    CN
                                    Also available in groups C2 and C3
                                    C 10 mm Tolerance: 0 / -0,24
                                    Da min 24 mm
                                    da max 20,7 mm
                                    dK 25 mm No lubrication groove on spherical inner ring surface
                                    r1s min 0,3 mm Chamfer dimension
                                    r2s min 0,3 mm Chamfer dimension
                                    α 10 °
                                    m 0,039 kg Mass
                                    Cr 21300 N Basic dynamic load rating, radial
                                    C0r 106000 N Basic static load rating, radial



                                    Bearing

                                    No.

                                    weight





                                    Dimension

                                    (mm)







                                    Basic Load
                                      g d D B C Kgf Co Kgf
                                    GE 10ES 12 10 19 6 210 5760
                                    GE 12ES 17 12 22 7 300 7560
                                    GE 15ES 32 15 26 9 480 11900
                                    GE 17ES 49 17 30 10 600 15000
                                    GE 20ES 65 20 35 12 840 20900
                                    GE 25ES 115 25 42 16 1360 34100
                                    GE 30ES 160 30 47 18 1760 44000
                                    GE 35ES 258 35 55 20 2260 56400
                                    GE 40ES 315 40 62 22 2300 70000
                                    GE 45ES 413 45 68 25 3600 90000
                                    GE 50ES 560 50 75 28 4400 111000
                                    GE 60ES 1100 60 90 36 6910 173000
                                    GE 70ES 1540 70 105 40 8830 221000
                                    GE 80ES 2290 80 120 45 11300 284000
                                    GE 90ES 2840 90 130 50 13800 345000
                                    GE 100ES 4430 100 150 55 17200 429000
                                    GE 110ES 4940 110 160 55 18500 462000
                                    GE 120ES 8120 120 180 70 26900 672000
                                    GE 140ES 11300 140 210 70 30200 756000
                                    GE 160ES 14400 160 230 80 38400 960000
                                    GE 180ES 18900 180 260 80 43200 1080000
                                    GE 200ES 28100 200 290 100 60000 1500000
                                    GE 220ES 36100 220 320 100 66000 1650000
                                    GE 240ES 40400 240 340 100 72000 1800000



                                    Applications:

                                    Application Company Distributors, Retailers, End users
                                    Application Places Joint bearings are widely used in hydraulic engineering, metal forming machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industry



                                    Competitive Advantage:

                                    As for the great scale, We have became into a huge bearing group company. We have a great sales team and perfected distribution ship. Since established, we have cooperated with thousands of suppliers in Europe, Asia and America. Our sales people had been professional trained and have more than 20 years of working experiences. And the professional technical engineers will provide you the best and full support.We works closely with you to assess your current, emerging and future requirement. We strive to improve efficiency, increase uptime and reduce costs by assessing your application needs. Whether your project large or small, any question, please feel free to contact us. We promise to provide customers with technical services; high-quality service pre-market and after-sales.

                                    Miniature Radial Spherical Plain Bearing Clearance Slide Type GE17ES 0
