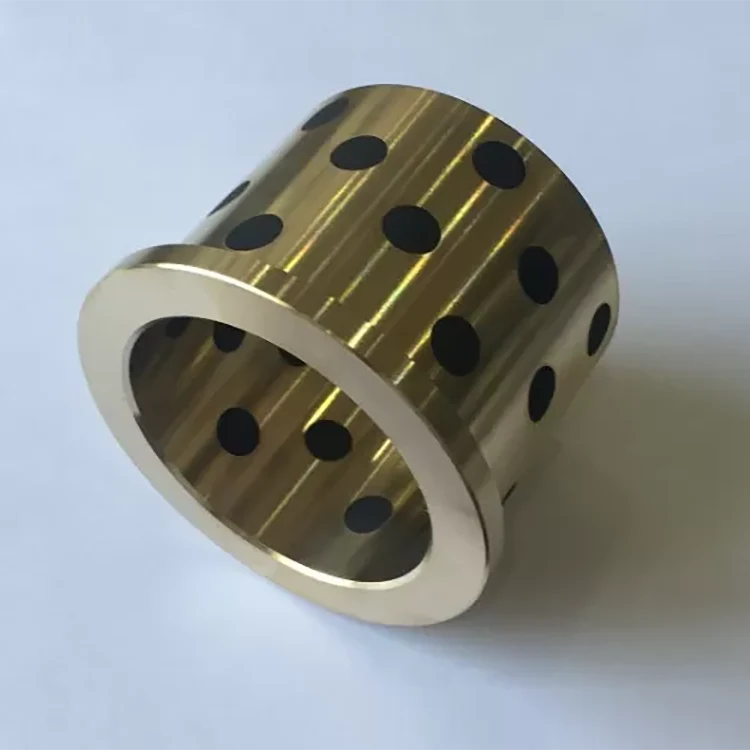

SOB Series SANKYO Standard Graphite Sleeve Bearings
Top Bearings is a professional leader China SOB Series SANKYO Standard Graphite Sleeve Bearings manufacturers with high quality and reasonable price. Welcome to contact us.
Send Inquiry
Product Description
Top Bearings is a professional leader China SOB Series SANKYO Standard Graphite Sleeve Bearings manufacturers with high quality and reasonable price. Welcome to contact us.
Product Parameter
|
Certification: |
SEA430B,C86300,DIN1709,FIBRO |
Supply Ability: |
CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers |
|
Material: |
Aluminum-Copper With Solid Lubricant Plugs |
Characteristics: |
Low-maintenance And Maintenance-free Plain Bearings |
|
Application: |
AUTOMOTIVE Core Boxes, Chillies And Dies,gasket |
Production Feature: |
Casting |
|
High Light: |
SANKYO Standard Graphite Sleeve Bearings , ISO 16949 Graphite Sleeve Bearings |
||
Tuleje SOB Series brąz z grafitem,Tuleje ślizgowe i tarcze prowadzące SANKYOW ofercie posiadamy szeroką gamę tulei prowadzących oraz tarczy ślizgowych.SIMILAR SOB,SOBF,SOBW,SOBB,SOST,SOSB
Technical Data
|
item |
ID |
OD |
L |
F |
R |
|
BRONZE GRAPHITE BSUHING 8-12-8 |
8 |
12 |
8 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 8-12-10 |
8 |
12 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 8-12-12 |
8 |
12 |
12 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 8-12-15 |
8 |
12 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 10-14-8 |
10 |
14 |
8 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 10-14-10 |
10 |
14 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 10-14-12 |
10 |
14 |
12 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 10-14-15 |
10 |
14 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 10-14-20 |
10 |
14 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-10 |
12 |
18 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-12 |
12 |
18 |
12 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-15 |
12 |
18 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-16 |
12 |
18 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-20 |
12 |
18 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-25 |
12 |
18 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 12-18-30 |
12 |
18 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 13-19-10 |
13 |
19 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 13-19-15 |
13 |
19 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 13-19-16 |
13 |
19 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 13-19-20 |
13 |
19 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 14-20-10 |
14 |
20 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 14-20-12 |
14 |
20 |
12 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 14-20-15 |
14 |
20 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 14-20-20 |
14 |
20 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 14-20-25 |
14 |
20 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 14-20-30 |
14 |
20 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-10 |
15 |
21 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-12 |
15 |
21 |
12 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-15 |
15 |
21 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-16 |
15 |
21 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-20 |
15 |
21 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-25 |
15 |
21 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 15-21-30 |
15 |
21 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-10 |
16 |
22 |
10 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-12 |
16 |
22 |
12 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-15 |
16 |
22 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-16 |
16 |
22 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-20 |
16 |
22 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-25 |
16 |
22 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-30 |
16 |
22 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-35 |
16 |
22 |
35 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 16-22-40 |
16 |
22 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-15 |
18 |
24 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-16 |
18 |
24 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-20 |
18 |
24 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-25 |
18 |
24 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-30 |
18 |
24 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-35 |
18 |
24 |
35 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 18-24-40 |
18 |
24 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-15 |
20 |
28 |
15 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-16 |
20 |
28 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-20 |
20 |
28 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-25 |
20 |
28 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-30 |
20 |
28 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-35 |
20 |
28 |
35 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-40 |
20 |
28 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-28-50 |
20 |
28 |
50 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-30-16 |
20 |
30 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-30-20 |
20 |
30 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-30-25 |
20 |
30 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-30-30 |
20 |
30 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-30-35 |
20 |
30 |
35 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 20-30-40 |
20 |
30 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-16 |
25 |
33 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-20 |
25 |
33 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-25 |
25 |
33 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-30 |
25 |
33 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-35 |
25 |
33 |
35 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-40 |
25 |
33 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-50 |
25 |
33 |
50 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-33-60 |
25 |
33 |
60 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-16 |
25 |
35 |
16 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-20 |
25 |
35 |
20 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-25 |
25 |
35 |
25 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-30 |
25 |
35 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-35 |
25 |
35 |
35 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-40 |
25 |
35 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 25-35-50 |
25 |
35 |
50 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 28-38-30 |
28 |
38 |
30 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 28-38-40 |
28 |
38 |
40 |
0,5 |
0,5 |
|
BRONZE GRAPHITE BSUHING 30-38-20 |
30 |
38 |
20 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-38-25 |
30 |
38 |
25 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-38-30 |
30 |
38 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-38-35 |
30 |
38 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-38-40 |
30 |
38 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-38-50 |
30 |
38 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-38-60 |
30 |
38 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-20 |
30 |
40 |
20 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-25 |
30 |
40 |
25 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-30 |
30 |
40 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-35 |
30 |
40 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-40 |
30 |
40 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-50 |
30 |
40 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 30-40-60 |
30 |
40 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 31,5-40-30 |
31,5 |
40 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 31,5-40-40 |
31,5 |
40 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 32-42-30 |
32 |
42 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 32-42-40 |
32 |
42 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-44-25 |
35 |
44 |
25 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-44-30 |
35 |
44 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-44-35 |
35 |
44 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-44-40 |
35 |
44 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-44-50 |
35 |
44 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-44-60 |
35 |
44 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-20 |
35 |
45 |
20 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-25 |
35 |
45 |
25 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-30 |
35 |
45 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-35 |
35 |
45 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-40 |
35 |
45 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-50 |
35 |
45 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 35-45-60 |
35 |
45 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 38-48-30 |
38 |
48 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 38-48-40 |
38 |
48 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-20 |
40 |
50 |
20 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-25 |
40 |
50 |
25 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-30 |
40 |
50 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-35 |
40 |
50 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-40 |
40 |
50 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-50 |
40 |
50 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-60 |
40 |
50 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-70 |
40 |
50 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-50-80 |
40 |
50 |
80 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-55-25 |
40 |
55 |
25 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-55-30 |
40 |
55 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-55-35 |
40 |
55 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-55-40 |
40 |
55 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-55-50 |
40 |
55 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 40-55-60 |
40 |
55 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-55-30 |
45 |
55 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-55-35 |
45 |
55 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-55-40 |
45 |
55 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-55-50 |
45 |
55 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-55-60 |
45 |
55 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-56-30 |
45 |
56 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-56-35 |
45 |
56 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-56-40 |
45 |
56 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-56-50 |
45 |
56 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-56-60 |
45 |
56 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-30 |
45 |
60 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-35 |
45 |
60 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-40 |
45 |
60 |
40 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-50 |
45 |
60 |
50 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-60 |
45 |
60 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-70 |
45 |
60 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 45-60-80 |
45 |
60 |
80 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-20 |
50 |
60 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-25 |
50 |
60 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-40 |
50 |
60 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-50 |
50 |
60 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-60 |
50 |
60 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-70 |
50 |
60 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-60-80 |
50 |
60 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-62-30 |
50 |
62 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-62-35 |
50 |
62 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-62-40 |
50 |
62 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-62-50 |
50 |
62 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-62-60 |
50 |
62 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-62-70 |
50 |
62 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-30 |
50 |
65 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-40 |
50 |
65 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-50 |
50 |
65 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-60 |
50 |
65 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-70 |
50 |
65 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-80 |
50 |
65 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 50-65-100 |
50 |
65 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 55-70-40 |
55 |
65 |
80 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 55-70-50 |
55 |
65 |
100 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 55-70-60 |
55 |
70 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 55-70-70 |
55 |
70 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-30 |
55 |
74 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-35 |
55 |
74 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-40 |
60 |
74 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-50 |
60 |
74 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-60 |
60 |
74 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-70 |
60 |
74 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-74-80 |
60 |
74 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-30 |
60 |
74 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-35 |
60 |
74 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-40 |
60 |
75 |
30 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-50 |
60 |
75 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-60 |
60 |
75 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-70 |
60 |
75 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-80 |
60 |
75 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 60-75-100 |
60 |
75 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 63-75-60 |
60 |
75 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 63-75-70 |
60 |
75 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 63-75-80 |
63 |
75 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 65-80-50 |
65 |
75 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 65-80-60 |
65 |
75 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 65-80-70 |
65 |
80 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 65-80-80 |
65 |
80 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-35 |
70 |
85 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-40 |
70 |
85 |
80 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-50 |
70 |
85 |
35 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-60 |
70 |
85 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-70 |
70 |
85 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-80 |
70 |
85 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-85-100 |
70 |
85 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-90-50 |
70 |
85 |
80 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-90-60 |
70 |
85 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-90-70 |
70 |
90 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 70-90-80 |
70 |
90 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-90-60 |
75 |
90 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-90-70 |
75 |
90 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-90-80 |
75 |
90 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-90-100 |
75 |
90 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-95-60 |
75 |
95 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-95-70 |
75 |
95 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-95-80 |
75 |
95 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 75-95-100 |
75 |
95 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-40 |
75 |
96 |
80 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-50 |
75 |
96 |
100 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-60 |
80 |
96 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-70 |
80 |
96 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-80 |
80 |
96 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-100 |
80 |
96 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-96-120 |
80 |
96 |
120 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-40 |
80 |
96 |
100 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-50 |
80 |
96 |
120 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-60 |
80 |
100 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-70 |
80 |
100 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-80 |
80 |
100 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-100 |
80 |
100 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-120 |
80 |
100 |
120 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 80-100-140 |
80 |
100 |
140 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 85-100-80 |
85 |
100 |
120 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 90-110-60 |
90 |
110 |
140 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 90-110-70 |
90 |
110 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 90-110-80 |
90 |
110 |
60 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 90-110-100 |
90 |
110 |
70 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 90-110-120 |
90 |
110 |
120 |
1 |
1 |
|
BRONZE GRAPHITE BSUHING 100-120-60 |
90 |
120 |
60 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 100-120-70 |
90 |
120 |
70 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 100-120-80 |
100 |
120 |
60 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 100-120-100 |
100 |
120 |
70 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 100-120-120 |
100 |
120 |
120 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 100-120-140 |
100 |
120 |
140 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 110-130-80 |
110 |
130 |
120 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 110-130-100 |
110 |
130 |
140 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 110-130-120 |
110 |
130 |
120 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 120-140-80 |
120 |
140 |
100 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 120-140-100 |
120 |
140 |
120 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 120-140-120 |
120 |
140 |
120 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 120-140-140 |
120 |
140 |
140 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 125-145-100 |
120 |
145 |
120 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 125-145-120 |
120 |
145 |
140 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 130-150-100 |
130 |
145 |
100 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 130-150-130 |
130 |
145 |
130 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 140-160-100 |
140 |
150 |
100 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 140-160-140 |
140 |
150 |
130 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 150-170-100 |
150 |
170 |
100 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 150-170-150 |
150 |
170 |
150 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 160-180-100 |
150 |
180 |
100 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 160-180-150 |
150 |
180 |
150 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 160-180-100 |
160 |
180 |
100 |
1,5 |
1,5 |
|
BRONZE GRAPHITE BSUHING 160-180-150 |
160 |
180 |
150 |
1,5 |
1,5 |
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
TOB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Material
CuZn25AI5Mn4Fe3
Characteristics
The solid lubricated bearing is a self-lubricated bearing made by inserting into the holes properly arranged and arranged on the friction surface of the metal base of the bearing a shaped solid lubricant with unique self-lubricating properties (the area of the solid lubricant is generally 25%-35% of the friction surface).The bearing combines the advantages of the metal matrix and the special lubricating material, and breaks through the limitation of the general bearing depending on oil film lubrication.JDB solid lubricated bearings are especially suitable for non-oil, high temperature, high load, low speed, anti-fouling, anti-corrosion, anti-radiation, and in the water or vacuum solution infiltration of the special conditions can not be used with lubricating film.
The products are widely used in metallurgical rolling equipment, filling equipment, water turbine, gas turbine, instrumentation and mining machinery, ship machinery, textile machinery, shipbuilding industry, aerospace navigation and other fields.At the same time also more and more widely used in other industrial and agricultural machinery.The matrix of JDB solid lubricated bearing shall be determined according to the working conditions of the bearing itself.More commonly used materials are high - strength brass, tin bronze, casting, etc.According to the working conditions of the bearing itself, the combination of different metal matrix and embedded solid lubricant can ensure that the product can meet the special needs of various working conditions such as temperature, load, movement and medium, and at the same time ensure stable and reliable work.
with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available.
TOB-50 Solid lubricating bearings
1. May work without any ol for long period2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Strusture
TOB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Availability
Hot Tags: SOB Series SANKYO Standard Graphite Sleeve Bearings, China, Manufacturers, Suppliers, Factory, Wholesale, Customized, In stock, Free Sample, Brand, Price
Related Category
Plain Bush Bearing
Bi Metal Bearings
Cast Bronze Bearings
Self Lubricating Bearings
Sintered Metal Bearings
Wrapped Bronze Bearing
POM Boundary Lubricating Bearings
Steel Roller Bearings
Rod End Bearing
Spherical Plain Bearings
Deep Groove Ball Bearings
Needle Roller Bearing
Linear Motion Bearings
Taper Roller Bearing
Plastic Plain Bearings
Ceramic Plain Bearings
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
