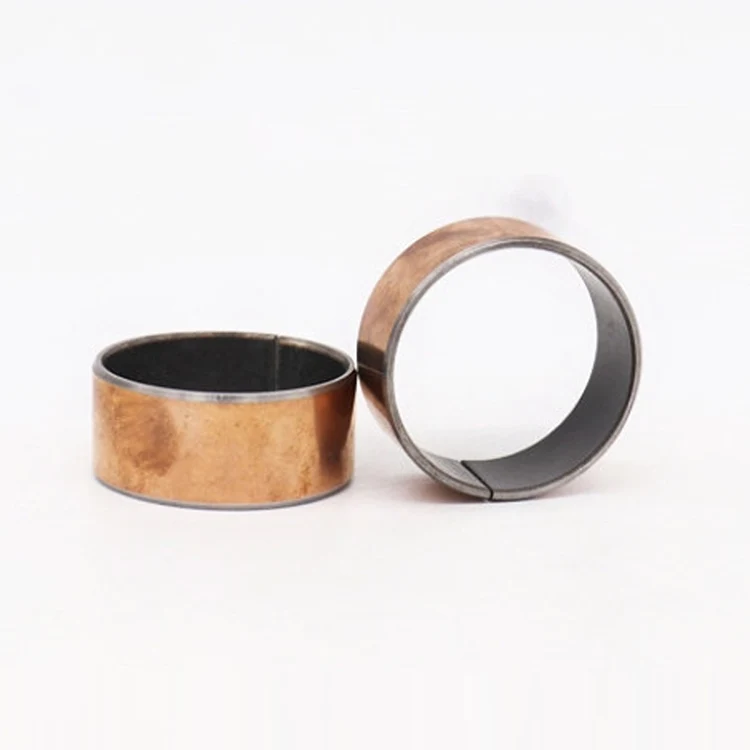

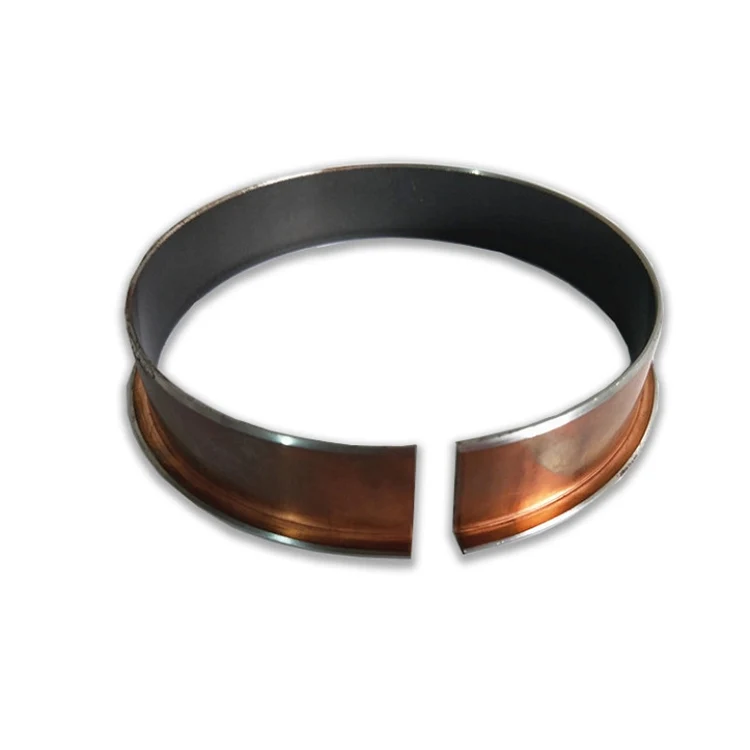

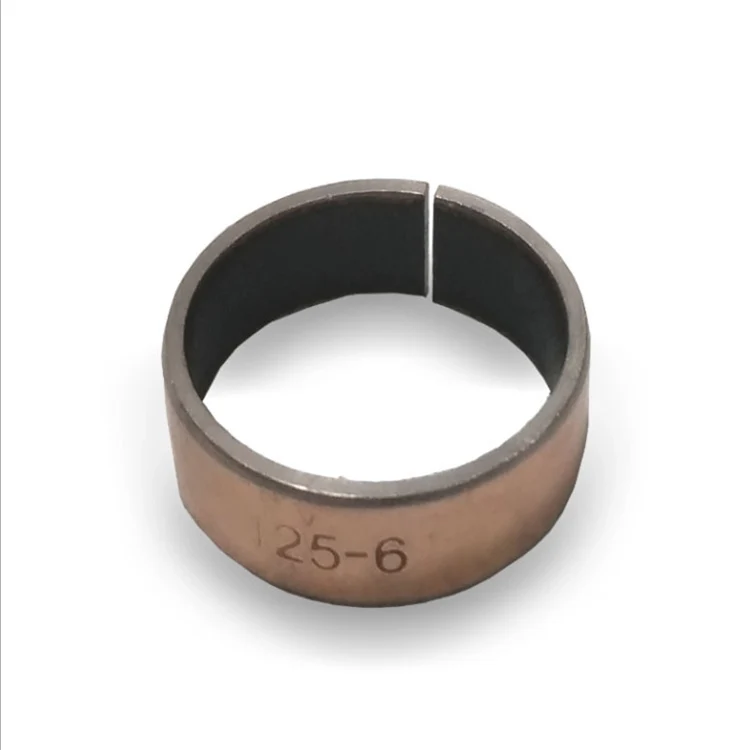

Steel Backed Ptfe Lined Oilless Lubricating Bushing

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Steel Backed Ptfe Lined Oilless Lubricating Bushing, Top Bearings looks forward to cooperating with you.

Send Inquiry

Product Description

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Steel Backed Ptfe Lined Oilless Lubricating Bushing, Top Bearings looks forward to cooperating with you.

Product Parameter

Material:	Stainless Steel + Bronze+ Ptfe	Supply Ability:	Pump Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Characteristic:	Low-maintenance And Maintenance-free Plain Bearings	Production Feature:	Bushes, Collar Bushes, Washers, Strips Or Special Designs
Certification:	STEEL BACKED BUSHING, DIN 1494 / ISO 3547, LOW-MAINTENANCE	Size:	Customized Size,Customized Request, All Standard, As Per Customer's Request
Lubricating:	Oilless	Packaging Details:	Export Standard Packing
High Light:	Steel Backed Ptfe Lined Bushing, Oilless Ptfe Lined Bushing, Steel Backed Self Lubricating Bearings

Steel Backed Ptfe Lined Bushing Inch Sleeve Bushings Composite Easy To Install, Highly Durable

We offers a comprehensive range of maintenance-free self--lubricating bronze bushings. A variety of available bearing surfaces allows us to offer you the right plain bearing for your applications and operating conditions.

Wrapped composite sliding steel backed bearing consist of metal backing bonded to a porous bronze sintered layer with a PTFE or thermoplastic based Polymer bearing lining layer.

bushings

Plastic Plain Bearings

It's made of bronze or iron powder, mold pressed in high pressure, sintered in high temperature and soaked in oil by vacuum. It's used in domestic electric appliances, electric tools, textiles machinery, chemical machinery and automobile industry, etc.

PTFE base material and Thermoplastic Bearings

Maintenance-free steel ptfe sleeve slding bearings Easy to install, highly durable.STEEL BACKED PTFE LINED BUSHINGS | Inch Sleeve Bushings Sleeve PTFE Composite.

Standard or specific products :

Cylindrical and flange bearings

Thrust washers

Sliding plates

Specific following enquiries

The product in a special recipe of high density copper alloy substrate, sintered porous bronze layer. Surface rolling a mixture of PTFE and Pb. It can provide good self-lubricating, wear resistance, low friction, such as performance, give full play to the advantages of metal and multi-element polymer. Products used in the industries of metallurgy, continuous casting and rolling mill, cement machinery, screw conveyor and so on.

Steel Backed PTFE Lined bushings

Lubrication Free with Excellent Wear Resistance

The TOP BEARINGS steel backed PTFE lined bushings is a low cost, general purpose bearing product that provides excellent wear characteristics at high loads, speeds over a wide temperature range.

Designed to be self-lubricating bushings they are rolled bushings composed of a steel backing, for structural strength, with bonded layers of sintered bronze and PTFE for a maintenance free bearing surface.

The thin wall bearing design, excellent performance features, and low cost make this product one of the most popular self lubricating bearings in the industrial global marketplace.

self lubricating bronze bushing

Inch Washers

Metric Washers

Inch Flanges

Metric Flanges

Inch Sleeves

Metric Sleeves

They are available from stock in a wide range of sizes in both inch and metric specifications. Standard stock items are produced in sleeve bearing, flange bearing, and washer designs.

Special size or modifications to stock items are welcomed and available without delay.

In the 1960's Glacier of the UK invented the steel-backed, sintered-bronze PTFE lined DU bearing. Like the DU bearings our VSB-10 bearings are also used in dry, semi lubricated enviroments. It can substitute a conventional bearing where saving space is desired. The VSB-10 Steel Backed Bushing provides superior shock and impact load resistance. The Steel Backed PTFE Lined bushing maintains a low coefficient of friction and is usable without lubrication at high load, low speed operations with excellent wear resistance.

Metal-Polymer Anti-Friction Plain Bearings

composite

plain bearings

Compact and maintenance-free

ROLLED DRY SLIDING BEARINGS (PTFE)

Steel + Bronze Powder + PTFE/Fibre(DU)

Wrapped PTFE Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with PTFE

Characteristics

TOB-10Self-Lubricating Multilayer Composite Bushing

Bushing material suitable for lubricated applications

self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

Anti-friction bearing suitable for linear, oscillating and rotating movements

Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. TOB-10 bushings will support rotary, linear and oscillating motion.

Wrapped composite sliding bearing, tin-plated steel/PTFE, DIN 1494/ISO 3547, Maintenance-free
TECHNICAL DETAILS
Specific load capacity static	≤ 250 [N/mm2]	Temperature strain	-200 [°C] to +280 [°C]
Specific load capacity dynamic	≤ 140 [N/mm2] at low sliding speed
Sliding speed	≤ 2.5 [m/s]	Max. PV-value	1.8 [N/mm² x m/s] 3.6 [N/mm² x m/s] for short time
Friction value	0.03 [µ] to 0.25 [µ]
MATERIALS
Support material	Steel tin-plated	Intermediate layer	Sintered bronze
Sliding layer	PTFE
TOLERANCE DETAILS
Housing Ø	H7	Shaft tolerance	f7 or h8
Bushing inner-Ø after mounting	H9
SHAFT MATERIAL
Steel, hardened or untempered.
Surface roughness ≤ Ra 0.8
PROPERTIES
It is a maintenance-free material due to the PTFE sliding layer. Outstanding sliding and wear performance. High load capacity and very versatile bushing.
RANGE OF APPLICATION
hydraulic cylinders, cranes and construction machinery, all sorts of production machinery, pumps and medial devices
MAINTENANCE
It is maintenance-free with a PTFE sliding layer. It is not necessary to lubricate this material, but basically possible!
MOUNTING ADVISE
Housing	Mounting bevel min. 1.5 mm x 15-45°
Shaft	Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.
Gluing	Adhesive should not contact the sliding surface!

Strusture

1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Technical Data

Carbon Steel + Copper Powder + (PTFE + Pb + Filler)

Structure And Composition

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead

Technical Data

Max. load	Static	250N/mm2
	Dynamic	140N/mm2
Max. speed	Dry	2m/s
	Lubrication	>2m/s
Max. PV (Dry)	Short-time	3.6N/mm2*·m/s
	Continuous	1.8N/mm2*·m/s
Temp.		-195℃~+280℃
Friction coefficient		0.03~0.20
Thermal conductivity		42W (m·k)-1
Coefficient of thermal expansion		11*10-6k-1

Availability

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

Type	Spec	Type	Spec
METAL POLYMER BUSHING	303	4.5～3～3	METAL POLYMER BUSHING	1309	15～13～9
METAL POLYMER BUSHING	304	4.5～3～4	METAL POLYMER BUSHING	1310	15～13～10
METAL POLYMER BUSHING	305	4.5～3～5	METAL POLYMER BUSHING	1312	15～13～12
METAL POLYMER BUSHING	404	5.5～4～4	METAL POLYMER BUSHING	1315	15～13～15
METAL POLYMER BUSHING	405	5.5～4～5	METAL POLYMER BUSHING	1410	16～14～10
METAL POLYMER BUSHING	406	5.5～4～6	METAL POLYMER BUSHING	1412	16～14～12
METAL POLYMER BUSHING	505	7～5～5	METAL POLYMER BUSHING	1415	16～14～15
METAL POLYMER BUSHING	506	7～5～6	METAL POLYMER BUSHING	1420	16～14～20
METAL POLYMER BUSHING	507	7～5～7	METAL POLYMER BUSHING	1422	16～14～22
METAL POLYMER BUSHING	510	7～5～10	METAL POLYMER BUSHING	1425	16～14～25
METAL POLYMER BUSHING	604	8～6～4	METAL POLYMER BUSHING	1508	17～15～8
METAL POLYMER BUSHING	605	8～6～5	METAL POLYMER BUSHING	1510	17～15～10
METAL POLYMER BUSHING	606	8～6～6	METAL POLYMER BUSHING	1512	17～15～12
METAL POLYMER BUSHING	608	8～6～8	METAL POLYMER BUSHING	1515	17～15～15
METAL POLYMER BUSHING	610	8～6～10	METAL POLYMER BUSHING	1518	17～15～18
METAL POLYMER BUSHING	705	9～7～5	METAL POLYMER BUSHING	1520	17～15～20
METAL POLYMER BUSHING	706	9～7～6	METAL POLYMER BUSHING	1525	17～15～25
METAL POLYMER BUSHING	708	9～7～8	METAL POLYMER BUSHING	1608	18～16～8
METAL POLYMER BUSHING	710	9～7～10	METAL POLYMER BUSHING	1610	18～16～10
METAL POLYMER BUSHING	715	9～7～15	METAL POLYMER BUSHING	1612	18～16～12
METAL POLYMER BUSHING	805	10～8～5	METAL POLYMER BUSHING	1615	18～16～15
METAL POLYMER BUSHING	806	10～8～6	METAL POLYMER BUSHING	1618	18～16～18
METAL POLYMER BUSHING	808	10～8～8	METAL POLYMER BUSHING	1620	18～16～20
METAL POLYMER BUSHING	810	10～8～10	METAL POLYMER BUSHING	1625	18～16～25
METAL POLYMER BUSHING	812	10～8～12	METAL POLYMER BUSHING	1708	19～17～8
METAL POLYMER BUSHING	815	10～8～15	METAL POLYMER BUSHING	1710	19～17～10
METAL POLYMER BUSHING	820	10～8～20	METAL POLYMER BUSHING	1712	19～17～12
METAL POLYMER BUSHING	908	11～9～8	METAL POLYMER BUSHING	1715	19～17～15
METAL POLYMER BUSHING	909	11～9～9	METAL POLYMER BUSHING	1718	19～17～18
METAL POLYMER BUSHING	910	11～9～10	METAL POLYMER BUSHING	1720	19～17～20
METAL POLYMER BUSHING	1005	12～10～5	METAL POLYMER BUSHING	1725	19～17～25
METAL POLYMER BUSHING	1006	12～10～6	METAL POLYMER BUSHING	1808	20～18～8
METAL POLYMER BUSHING	1008	12～10～8	METAL POLYMER BUSHING	1810	20～18～10
METAL POLYMER BUSHING	1009	12～10～9	METAL POLYMER BUSHING	1812	20～18～12
METAL POLYMER BUSHING	1010	12～10～10	METAL POLYMER BUSHING	1815	20～18～15
METAL POLYMER BUSHING	1012	12～10～12	METAL POLYMER BUSHING	1820	20～18～20
METAL POLYMER BUSHING	1015	12～10～15	METAL POLYMER BUSHING	1825	20～18～25
METAL POLYMER BUSHING	1020	12～10～20	METAL POLYMER BUSHING	1830	20～18～30
METAL POLYMER BUSHING	1108	13～11～8	METAL POLYMER BUSHING	2008	23～20～8
METAL POLYMER BUSHING	1109	13～11～9	METAL POLYMER BUSHING	2010	23～20～10
METAL POLYMER BUSHING	1110	13～11～10	METAL POLYMER BUSHING	2012	23～20～12
METAL POLYMER BUSHING	1112	13～11～12	METAL POLYMER BUSHING	2015	23～20～15
METAL POLYMER BUSHING	1206	14～12～6	METAL POLYMER BUSHING	2020	23～20～20
METAL POLYMER BUSHING	1208	14～12～8	METAL POLYMER BUSHING	2025	23～20～25
METAL POLYMER BUSHING	1210	14～12～10	METAL POLYMER BUSHING	2030	23～20～30
METAL POLYMER BUSHING	1212	14～12～12	METAL POLYMER BUSHING	2035	23～20～35
METAL POLYMER BUSHING	1214	14～12～14	METAL POLYMER BUSHING	2040	23～20～10
METAL POLYMER BUSHING	1215	14～12～15	METAL POLYMER BUSHING	2210	25～22～10
METAL POLYMER BUSHING	1216	14～12～16	METAL POLYMER BUSHING	2212	25～22～12
METAL POLYMER BUSHING	1220	14～12～20	METAL POLYMER BUSHING	2215	25～22～15
METAL POLYMER BUSHING	1225	14～12～25	METAL POLYMER BUSHING	2220	25～22～20
METAL POLYMER BUSHING	1308	15～13～8	METAL POLYMER BUSHING	2225	25～22～25
Type	Spec	Type	Spec
METAL POLYMER BUSHING	2230	25～22～30	METAL POLYMER BUSHING	3025	34～30～25
METAL POLYMER BUSHING	2235	25～22～35	METAL POLYMER BUSHING	3028	34～30～28
METAL POLYMER BUSHING	2238	25～22～38	METAL POLYMER BUSHING	3030	34～30～30
METAL POLYMER BUSHING	2240	25～22～40	METAL POLYMER BUSHING	3032	34～30～32
METAL POLYMER BUSHING	2245	25～22～45	METAL POLYMER BUSHING	3035	34～30～35
METAL POLYMER BUSHING	2250	25～22～50	METAL POLYMER BUSHING	3038	34～30～38
METAL POLYMER BUSHING	2410	27～24～10	METAL POLYMER BUSHING	3040	34～30～40
METAL POLYMER BUSHING	2412	27～24～12	METAL POLYMER BUSHING	3045	34～30～45
METAL POLYMER BUSHING	2415	27～24～15	METAL POLYMER BUSHING	3050	34～30～50
METAL POLYMER BUSHING	2420	27～24～20	METAL POLYMER BUSHING	3210	36～32～10
METAL POLYMER BUSHING	2425	27～24～25	METAL POLYMER BUSHING	3212	36～32～12
METAL POLYMER BUSHING	2428	27～24～28	METAL POLYMER BUSHING	3215	36～32～15
METAL POLYMER BUSHING	2430	27～24～30	METAL POLYMER BUSHING	3218	36～32～18
METAL POLYMER BUSHING	2432	27～24～32	METAL POLYMER BUSHING	3220	36～32～20
METAL POLYMER BUSHING	2435	27～24～35	METAL POLYMER BUSHING	3225	36～32～25
METAL POLYMER BUSHING	2438	27～24～38	METAL POLYMER BUSHING	3230	36～32～30
METAL POLYMER BUSHING	2440	27～24～40	METAL POLYMER BUSHING	3235	36～32～35
METAL POLYMER BUSHING	2450	27～24～50	METAL POLYMER BUSHING	3240	36～32～40
METAL POLYMER BUSHING	2510	28～25～10	METAL POLYMER BUSHING	3245	36～32～45
METAL POLYMER BUSHING	2512	28～25～12	METAL POLYMER BUSHING	3250	36～32～50
METAL POLYMER BUSHING	2515	28～25～15	METAL POLYMER BUSHING	3410	38*34～10
METAL POLYMER BUSHING	2520	28～25～20	METAL POLYMER BUSHING	3412	38*34～12
METAL POLYMER BUSHING	2525	28～25～25	METAL POLYMER BUSHING	3415	38*34～15
METAL POLYMER BUSHING	2528	28～25～28	METAL POLYMER BUSHING	3420	38*34～20
METAL POLYMER BUSHING	2530	28～25～30	METAL POLYMER BUSHING	3425	38*34～25
METAL POLYMER BUSHING	2532	28～25～32	METAL POLYMER BUSHING	3430	38*34～30
METAL POLYMER BUSHING	2535	28～25～35	METAL POLYMER BUSHING	3435	383435
METAL POLYMER BUSHING	2540	28～25～40	METAL POLYMER BUSHING	3440	38*34～40
METAL POLYMER BUSHING	2550	28～25～50	METAL POLYMER BUSHING	3445	38*34～45
METAL POLYMER BUSHING	2560	28～25～60	METAL POLYMER BUSHING	3510	39*35～10
METAL POLYMER BUSHING	2610	30～26～10	METAL POLYMER BUSHING	3512	39*35～12
METAL POLYMER BUSHING	2612	30～26～12	METAL POLYMER BUSHING	3515	39*35～15
METAL POLYMER BUSHING	2615	30～26～15	METAL POLYMER BUSHING	3520	39*35～20
METAL POLYMER BUSHING	2620	30～26～20	METAL POLYMER BUSHING	3525	39*35～25
METAL POLYMER BUSHING	2625	30～26～25	METAL POLYMER BUSHING	3530	39*35～30
METAL POLYMER BUSHING	2630	30～26～30	METAL POLYMER BUSHING	3535	39*35～35
METAL POLYMER BUSHING	2635	30～26～35	METAL POLYMER BUSHING	3540	39*35～40
METAL POLYMER BUSHING	2640	30～26～40	METAL POLYMER BUSHING	3545	39*35～45
METAL POLYMER BUSHING	2650	30～26～50	METAL POLYMER BUSHING	3550	39*35～50
METAL POLYMER BUSHING	2810	32～28～10	METAL POLYMER BUSHING	3610	40～36～10
METAL POLYMER BUSHING	2812	32～28～12	METAL POLYMER BUSHING	3612	40～36～12
METAL POLYMER BUSHING	2815	32～28～15	METAL POLYMER BUSHING	3615	40～36～15
METAL POLYMER BUSHING	2820	32～28～20	METAL POLYMER BUSHING	3620	40～36～20
METAL POLYMER BUSHING	2825	32～28～25	METAL POLYMER BUSHING	3625	40～36～25
METAL POLYMER BUSHING	2830	32～28～30	METAL POLYMER BUSHING	3630	40～36～30
METAL POLYMER BUSHING	2832	32～28～32	METAL POLYMER BUSHING	3635	40～36～35
METAL POLYMER BUSHING	2835	32～28～35	METAL POLYMER BUSHING	3640	40～36～40
METAL POLYMER BUSHING	2840	32～28～40	METAL POLYMER BUSHING	3645	40～36～45
METAL POLYMER BUSHING	3010	34～30～10	METAL POLYMER BUSHING	3650	40～36～50
METAL POLYMER BUSHING	3012	34～30～12	METAL POLYMER BUSHING	3812	42～38～12
METAL POLYMER BUSHING	3015	34～30～15	METAL POLYMER BUSHING	3815	42～38～15
METAL POLYMER BUSHING	3020	34～30～20	METAL POLYMER BUSHING	3820	42～38～20
Type	Spec	Type	Spec
METAL POLYMER BUSHING	3825	42～38～25	METAL POLYMER BUSHING	5020	55～50～20
METAL POLYMER BUSHING	3830	42～38～30	METAL POLYMER BUSHING	5025	55～50～25
METAL POLYMER BUSHING	3835	423835	METAL POLYMER BUSHING	5030	55～50～30
METAL POLYMER BUSHING	3840	42～38～40	METAL POLYMER BUSHING	5035	55～50～35
METAL POLYMER BUSHING	3845	42～38～45	METAL POLYMER BUSHING	5040	55～50～40
METAL POLYMER BUSHING	3850	42～38～50	METAL POLYMER BUSHING	5045	55～50～45
METAL POLYMER BUSHING	3855	42～38～55	METAL POLYMER BUSHING	5050	55～50～50
METAL POLYMER BUSHING	3860	42～38～60	METAL POLYMER BUSHING	5055	55～50～55
METAL POLYMER BUSHING	4012	44～40～12	METAL POLYMER BUSHING	5060	55～50～60
METAL POLYMER BUSHING	4015	44～40～15	METAL POLYMER BUSHING	5065	55～50～65
METAL POLYMER BUSHING	4020	44～40～20	METAL POLYMER BUSHING	5070	55～50～70
METAL POLYMER BUSHING	4025	44～40～25	METAL POLYMER BUSHING	5515	60～55～15
METAL POLYMER BUSHING	4030	44～40～30	METAL POLYMER BUSHING	5520	60～55～20
METAL POLYMER BUSHING	4035	44～40～35	METAL POLYMER BUSHING	5525	60～55～25
METAL POLYMER BUSHING	4040	44～40～40	METAL POLYMER BUSHING	5530	60～55～30
METAL POLYMER BUSHING	4045	44～40～45	METAL POLYMER BUSHING	5535	60～55～35
METAL POLYMER BUSHING	4050	44～40～50	METAL POLYMER BUSHING	5540	60～55～40
METAL POLYMER BUSHING	4055	44～40～55	METAL POLYMER BUSHING	5545	60～55～45
METAL POLYMER BUSHING	4060	44～40～60	METAL POLYMER BUSHING	5550	60～55～50
METAL POLYMER BUSHING	4212	46～42～12	METAL POLYMER BUSHING	5555	60～55～55
METAL POLYMER BUSHING	4215	46～42～15	METAL POLYMER BUSHING	5560	60～55～60
METAL POLYMER BUSHING	4220	46～42～20	METAL POLYMER BUSHING	5565	60～55～65
METAL POLYMER BUSHING	4225	46～42～25	METAL POLYMER BUSHING	5570	60～55～70
METAL POLYMER BUSHING	4230	46～42～30	METAL POLYMER BUSHING	6015	65～60～15
METAL POLYMER BUSHING	4235	46～42～35	METAL POLYMER BUSHING	6020	65～60～20
METAL POLYMER BUSHING	4240	46～42～40	METAL POLYMER BUSHING	6025	65～60～25
METAL POLYMER BUSHING	4245	46～42～45	METAL POLYMER BUSHING	6030	65～60～30
METAL POLYMER BUSHING	4250	46～42～50	METAL POLYMER BUSHING	6035	65～60～35
METAL POLYMER BUSHING	4255	46～42～55	METAL POLYMER BUSHING	6040	65～60～40
METAL POLYMER BUSHING	4260	46～42～60	METAL POLYMER BUSHING	6045	65～60～45
METAL POLYMER BUSHING	4412	48～44～12	METAL POLYMER BUSHING	6050	65～60～50
METAL POLYMER BUSHING	4415	48～44～15	METAL POLYMER BUSHING	6055	65～60～55
METAL POLYMER BUSHING	4420	48～44～20	METAL POLYMER BUSHING	6060	65～60～60
METAL POLYMER BUSHING	4425	48～44～25	METAL POLYMER BUSHING	6065	65～60～65
METAL POLYMER BUSHING	4430	48～44～30	METAL POLYMER BUSHING	6070	65～60～70
METAL POLYMER BUSHING	4435	48～44～35	METAL POLYMER BUSHING	6075	65～60～75
METAL POLYMER BUSHING	4440	48～44～40	METAL POLYMER BUSHING	6080	65～60～80
METAL POLYMER BUSHING	4445	48～44～45	METAL POLYMER BUSHING	6085	65～60～85
METAL POLYMER BUSHING	4450	48～44～50	METAL POLYMER BUSHING	6090	65～60～90
METAL POLYMER BUSHING	4455	48～44～55	METAL POLYMER BUSHING	6515	70～65～15
METAL POLYMER BUSHING	4460	48～44～60	METAL POLYMER BUSHING	6520	70～65～20
METAL POLYMER BUSHING	4515	50～45～18	METAL POLYMER BUSHING	6530	70～65～30
METAL POLYMER BUSHING	4520	50～45～20	METAL POLYMER BUSHING	6540	70～65～40
METAL POLYMER BUSHING	4525	50～45～25	METAL POLYMER BUSHING	6550	70～65～50
METAL POLYMER BUSHING	4530	50～45～30	METAL POLYMER BUSHING	6560	70～65～60
METAL POLYMER BUSHING	4535	50～45～35	METAL POLYMER BUSHING	6570	70～65～70
METAL POLYMER BUSHING	4540	50～45～40	METAL POLYMER BUSHING	6580	70～65～80
METAL POLYMER BUSHING	4545	50～45～45	METAL POLYMER BUSHING	6590	70～65～90
METAL POLYMER BUSHING	4550	50～45～50	METAL POLYMER BUSHING	7020	75～70～20
METAL POLYMER BUSHING	4555	50～45～55	METAL POLYMER BUSHING	7030	75～70～30
METAL POLYMER BUSHING	4560	50～45～60	METAL POLYMER BUSHING	7040	75～70～40
METAL POLYMER BUSHING	5015	55～50～15	METAL POLYMER BUSHING	7050	75～70～50
Type	Spec	Type	Spec
METAL POLYMER BUSHING	7060	75～70～60	METAL POLYMER BUSHING	10550	110～105～50
METAL POLYMER BUSHING	7070	75～70～70	METAL POLYMER BUSHING	10560	110～105～60
METAL POLYMER BUSHING	7080	75～70～80	METAL POLYMER BUSHING	10570	110～105～70
METAL POLYMER BUSHING	7090	75～70～90	METAL POLYMER BUSHING	10580	110～105～80
METAL POLYMER BUSHING	7530	80～75～30	METAL POLYMER BUSHING	10590	110～105～90
METAL POLYMER BUSHING	7540	80～75～40	METAL POLYMER BUSHING	105100	110～105～100
METAL POLYMER BUSHING	7550	80～75～50	METAL POLYMER BUSHING	105115	110～105～115
METAL POLYMER BUSHING	7560	80～75～60	METAL POLYMER BUSHING	11050	115～110～50
METAL POLYMER BUSHING	7570	80～75～70	METAL POLYMER BUSHING	11060	115～110～60
METAL POLYMER BUSHING	7580	80～75～80	METAL POLYMER BUSHING	11070	115～110～70
METAL POLYMER BUSHING	7590	80～75～90	METAL POLYMER BUSHING	11080	115～110～80
METAL POLYMER BUSHING	8030	85～80～30	METAL POLYMER BUSHING	11090	115～110～90
METAL POLYMER BUSHING	8040	85～80～40	METAL POLYMER BUSHING	110100	115～110～100
METAL POLYMER BUSHING	8050	85～80～50	METAL POLYMER BUSHING	110115	115～110～115
METAL POLYMER BUSHING	8060	85～80～60	METAL POLYMER BUSHING	11550	120～115～50
METAL POLYMER BUSHING	8070	85～80～70	METAL POLYMER BUSHING	11560	120～115～60
METAL POLYMER BUSHING	8080	85～80～80	METAL POLYMER BUSHING	11570	120～115～70
METAL POLYMER BUSHING	8090	85～80～90	METAL POLYMER BUSHING	11580	120～115～80
METAL POLYMER BUSHING	80100	85～80～100	METAL POLYMER BUSHING	11590	120～115～90
METAL POLYMER BUSHING	8530	90～85～30	METAL POLYMER BUSHING	115100	120～115～100
METAL POLYMER BUSHING	8540	90～85～40	METAL POLYMER BUSHING	115115	120～115～115
METAL POLYMER BUSHING	8550	90～85～50	METAL POLYMER BUSHING	12050	125～120～50
METAL POLYMER BUSHING	8560	90～85～60	METAL POLYMER BUSHING	12060	125～120～60
METAL POLYMER BUSHING	8570	90～85～70	METAL POLYMER BUSHING	12070	125～120～70
METAL POLYMER BUSHING	8580	90～85～80	METAL POLYMER BUSHING	12080	125～120～80
METAL POLYMER BUSHING	8590	90～85～90	METAL POLYMER BUSHING	12090	125～120～90
METAL POLYMER BUSHING	85100	90～85～100	METAL POLYMER BUSHING	120100	125～120～100
METAL POLYMER BUSHING	9030	95～90～30	METAL POLYMER BUSHING	120120	125～120～120

Hot Tags: Steel Backed Ptfe Lined Oilless Lubricating Bushing, China, Manufacturers, Suppliers, Factory, Wholesale, Customized, In stock, Free Sample, Brand, Price

Product Tag

Send Inquiry

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Steel Backed Ptfe Lined Oilless Lubricating Bushing

Send Inquiry

Product Description

Product Parameter

Plastic Plain Bearings

Standard or specific products :

Steel Backed PTFE Lined bushings

Inch Washers

Metal-Polymer Anti-Friction Plain Bearings

Characteristics

Strusture

Technical Data

Availability

Product Tag

Related Category

Plain Bush Bearing

Bi Metal Bearings

Cast Bronze Bearings

Self Lubricating Bearings

Sintered Metal Bearings

Wrapped Bronze Bearing

POM Boundary Lubricating Bearings

Steel Roller Bearings

Rod End Bearing

Spherical Plain Bearings

Deep Groove Ball Bearings

Needle Roller Bearing

Linear Motion Bearings

Taper Roller Bearing

Plastic Plain Bearings

Ceramic Plain Bearings

Send Inquiry

Related Products

Metal Tin Plating Self Lubricating Bearings With Inch Sizes

Slitted Type PTFE Flanged Bearing Carbon Steel Tin Plating

Self Lubricating Bearings Hydraulic Components

Flanged Pump Bushing Wall Thickness 1mm

Du Bearings For Garlock Flange Customized Size

Double Mass Flywheel Slide Bushing Stainless Steel
