Home > Products > Cast Bronze Bearings > 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208
                                    500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208
                                    • 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208
                                    • 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208
                                    • 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208
                                    • 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208

                                    500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208

                                    Top Bearings is a professional China 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208 manufacturers and suppliers, if you are looking for the best 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208 with low price, consult us now!

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is a professional China 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208 manufacturers and suppliers, if you are looking for the best 500SP1 SL1 Oilless Bronze Bushing Bearing SPB 081208 with low price, consult us now!


                                    Product Parameter

                                    Features:

                                    Good Physical Performance And Good Capability For Casting

                                    Lubrication:

                                    Graphite Embedded Brass Bushing

                                    Supply Ability:

                                    Plug Graphite Bearings, China, Manufacturers, Suppliers, Factory, Wholesale, Metal Journal Bearing, DU Self Lubricating Bearing,

                                    Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

                                    Base Material:

                                    Bronze ASTM B505 C86300 Bushing

                                    High Light:

                                    500SP1-SL1 Bronze Bushing Bearing

                                    Oilless Bronze Bushing Bearing

                                    SPB Bronze Sleeve Bushings

                                    500SP1-SL1, Oilless Bushing ( SPB ) ( SPB-081208 ) Straight Type

                                    500SP1-SL1, Bushing (SPB) (SPB-081208) ,The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs.

                                    Configured Specifications oilless bushing drawing #500SP1-SL1, Bushing (SPB) (SPB-081208) Model (OIL...



                                    dimensions, tolerances, and material specs for the bushing and solid lubricant.

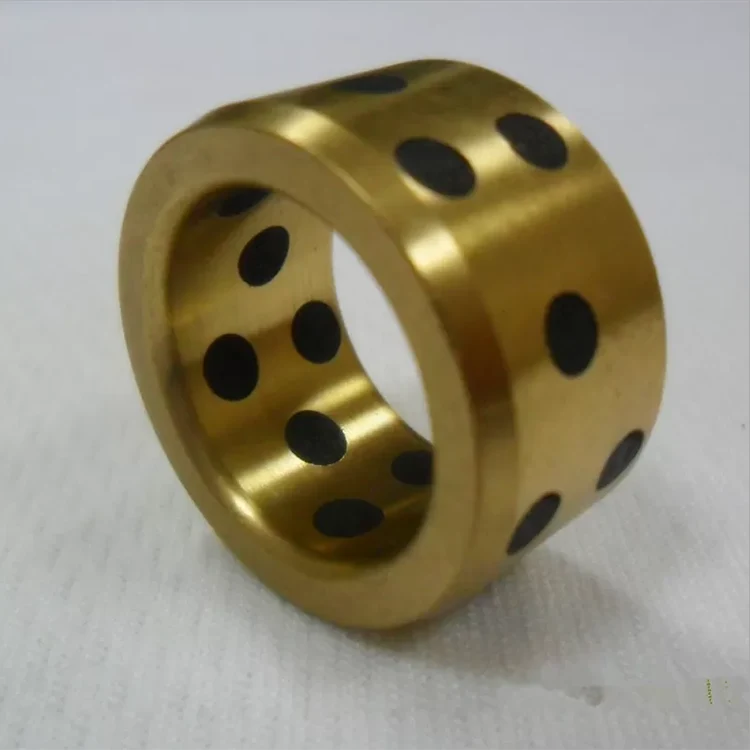

                                    Graphite embedded brass bushing



                                    Type

                                    Straight Type

                                    Metal Type

                                    High tensile brass based

                                    Operating Environment

                                    Standard / Heat Resistant / Foreign object Resistance

                                    Inner Dia. d(Ø)

                                    8

                                    Outer Dia. D(Ø)

                                    12

                                    L(mm)

                                    8

                                    Maximum Allowable PV Value Range(N/mm2•m/s)

                                    1.1~2.0

                                    Maximum Allowable PV Value(N/mm2•m/s)

                                    1.65

                                    Maximum Allowable Surface Pressure P(N/mm2)

                                    29

                                    Maximum Allowable Velocity V(m/s)

                                    0.5

                                    Length Type

                                    Single

                                    Fitting axis

                                    e7

                                    self-lubricating bush material



                                    Features

                                    ●Self lubricating bearings that can be used oil free.
                                    ●Demonstrate high performance at high load/low speed motion.

                                    Specification

                                    ●Q'ty Per Bag(piece): 1
                                    ●Working Temperature Range: -40 to 300°C

                                    Materials

                                    ●High-Strength Brass Castings (solid lubricant embedded)

                                    Basic Information

                                    Type

                                    Straight Type

                                    Metal Type

                                    High tensile brass based

                                    Operating Environment

                                    Standard / Heat Resistant / Foreign object Resistance

                                    Maximum Allowable PV Value Range(N/mm2•m/s)

                                    1.1~2.0

                                    Maximum Allowable PV Value(N/mm2•m/s)

                                    1.65

                                    Maximum Allowable Surface Pressure P(N/mm2)

                                    29

                                    Maximum Allowable Velocity V(m/s)

                                    0.5

                                    Length Type

                                    Single

                                    Fitting axis

                                    e7

                                    Housing Fitting

                                    H7

                                    Lubrication

                                    Non-Lubricated


                                    Please check the type/dimensions/specifications of the part SPB-081208 in the #500SP1-SL1, Bushing (SPB) series.

                                    CuZn25Al5Mn4Fe3-C. is a high tensile brass bearings; It is an extremely hard material, especially suited for machine elements submitted to the die & mould.



                                    high tensile brass bushing

                                    It is an extremely hard material, especially suited for machine elements submitted to the highest demands.

                                    The closest international standard is the ASTM B505 C86300

                                    VTOP BEARING has a large stock of rectangular bars and round solid and hollow bars with immediate availability.

                                    An overview of the High Tensile Brass Bronze Cuzn25al5mn4fe3 ASTM B505 C86300 Bushings
                                    A variety of alloys consisting of more than two elements are called special brasses. Such as aluminum, lead, tin, manganese, nickel, iron, silicon composed of copper alloy, high force brass is one of them. High strength brass has strong wear resistance, high strength brass, hardness, strong chemical corrosion resistance. There are machining mechanical properties are also very superior. High strength brass is often used to manufacture sheet, bar, bar, pipe, casting parts, etc.


                                    Chemical composition



                                    % min.

                                    % máx

                                    Al

                                    3,0

                                    7,0

                                    Cu

                                    60,0

                                    67,0

                                    Fe

                                    1,5

                                    4,0

                                    Mn

                                    2,5

                                    5,0

                                    Ni



                                    3,0

                                    Zn

                                    Remainder



                                    P



                                    0,03

                                    Pb



                                    0,2

                                    Sb



                                    0,03

                                    Si



                                    0,1

                                    Sn



                                    0,2



                                    Application domain editor

                                    Colliers brass application is very extensive, the casting made of bearing and bushing, domestic mainly made of high strength brass for matrix solid lubrication oil-free bearings (hereinafter referred to as solid embellish bearing), is to use brass Gao Ligao strength as matrix, and embedded radial arranged orderly cylindrical polymer filler for friction materials (general graphite, molybdenum disulfide, ptfe, such as oil lubricant), its superiority lies in its made of copper alloy and non-metallic antifriction material has the respective complementary advantages, not only has high bearing capacity, and break through the boundaries of generally depends on the oil film bearing grease lubrication, achieve no oil lubrication, The embedded solid lubrication is easy to form lubrication film, which plays a great role in improving the friction and wear performance, and is stable, reliable and cost-effective. Compared with the composite oil-free bearing, it has the advantages of good machinability, high precision, strong bearing capacity and good wear resistance. The self-lubricating guide bush guide can be used in many fields such as: engineering machinery joints, such as excavator, mining scraper, the rotating drill, concrete pump truck, rock drill machine, hoist, port cranes, etc., and metallurgical machinery casting machinery, water conservancy machinery, transportation machinery, rolling mill, bottle blowing machine blown film machine, injection molding machine cross clamping differential, tire vulcanizer, trailer balance beam, vacuum switch, etc.
