                                    Anti Erosion Coating Low Carbon Steel Bearings

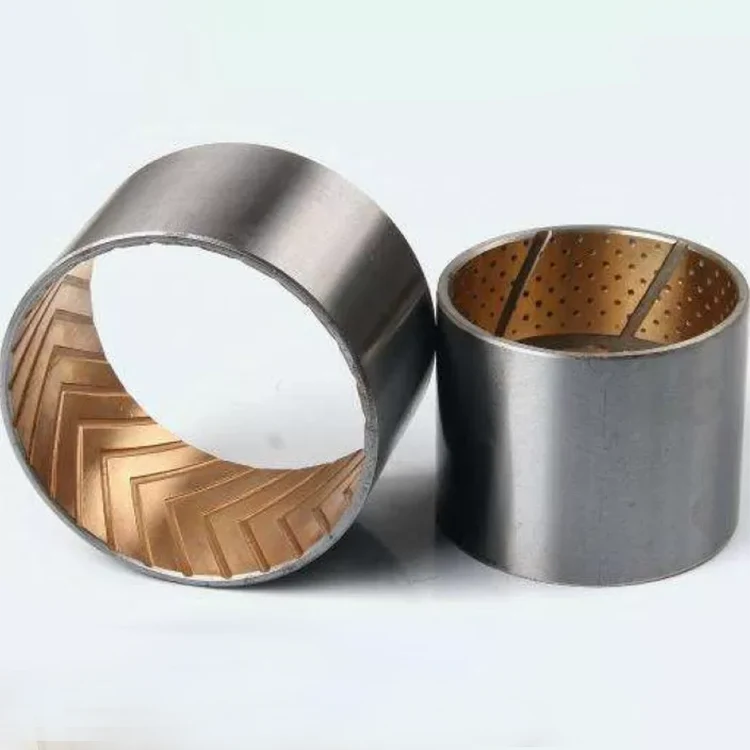

                                    • Anti Erosion Coating Low Carbon Steel BearingsAnti Erosion Coating Low Carbon Steel Bearings
                                    • Anti Erosion Coating Low Carbon Steel BearingsAnti Erosion Coating Low Carbon Steel Bearings
                                    • Anti Erosion Coating Low Carbon Steel BearingsAnti Erosion Coating Low Carbon Steel Bearings

                                    Anti Erosion Coating Low Carbon Steel Bearings

                                    Top Bearings is a leading China Anti Erosion Coating Low Carbon Steel Bearings manufacturers, suppliers and exporter.

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is a leading China Anti Erosion Coating Low Carbon Steel Bearings manufacturers, suppliers and exporter.


                                    Product Parameter

                                    Material:

                                    Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10)

                                    Types:

                                    Wrapped Bushes, Thrust Washer And Bushes On Connecting Rod Level Of Gas Engine, Etc.

                                    Application:

                                    Con-rod Of Automobile Engines, Transmission Gear-box, Construction & Agriculture Machinery Etc.

                                    Alloy Hardness:

                                    HB 60~90

                                    Max. Load:

                                    150N/mm²

                                    Max. Working Temperature:

                                    Grease Lubrication Is 150℃, Oil Lubrication Is 250℃

                                    High Light:

                                    steel flange bearing

                                    bimetal bearings


                                    Bimetal Bearings , Low Carbon Steel Wth CuSn10Pb10

                                    CuSn10Pb10 Bimetal Bearings is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuSn10Pb10) sintered on its surface. To effectively decrease abrasion, CuSn10Pb10 Bimetal Bearings' alloy surface can be machined with ball oil sockets for easier oil storage. When necessary, an anti-erosive coating can be plated on the steel back. CuSn10Pb10 Bimetal Bearings can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. In mechanical application, CuSn10Pb10 Bimetal Bearings is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine, etc.



                                    Physical and Mechanical Performance

                                    Performance Index

                                    Data

                                    Performance Index

                                    Data

                                    Max. Load

                                    150N/mm²

                                    Mating Axis

                                    Hardness

                                    ≥53 HRC

                                    Linear Velocity

                                    Grease Lubrication

                                    2.5 m/s

                                    Roughness

                                    Ra=0.13~0.63

                                    Oil Lubrication

                                    5 m/s

                                    Max. Working Temperature

                                    Grease Lubrication

                                    150℃

                                    Max. PV value

                                    Grease Lubrication

                                    2.8N/mm²·m/s

                                    Oil Lubrication

                                    250℃

                                    Oil Lubrication

                                    10N/mm²·m/s

                                    Friction Coefficient

                                    0.05~0.15

                                    Anti-tensile Strength

                                    185 N/mm²

                                    Heat-conducting Coefficient

                                    47 W/(m*k)

                                    Alloy hardness

                                    HB 60~90

                                    Heat-expansion Coefficient

                                    18*10^-6k



                                    Alloy Chemical Compositions

                                    Content

                                    Cu

                                    Pb

                                    Sn

                                    Zn

                                    P

                                    Fe

                                    Ni

                                    Sb

                                    Others

                                    Remainder

                                    9-11

                                    9-11

                                    0.5

                                    0.1

                                    0.7

                                    0.5

                                    0.2

                                    0.5

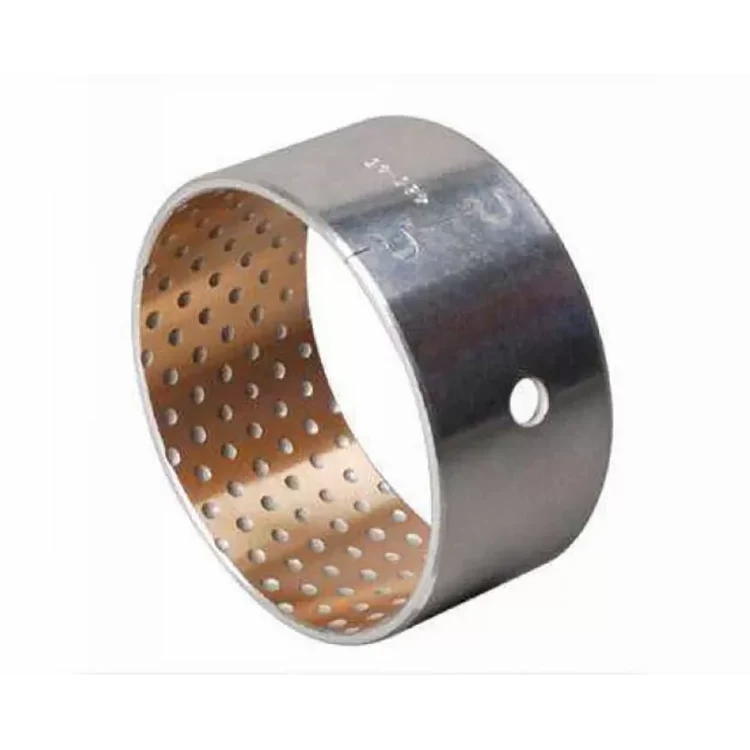

                                    Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets 0

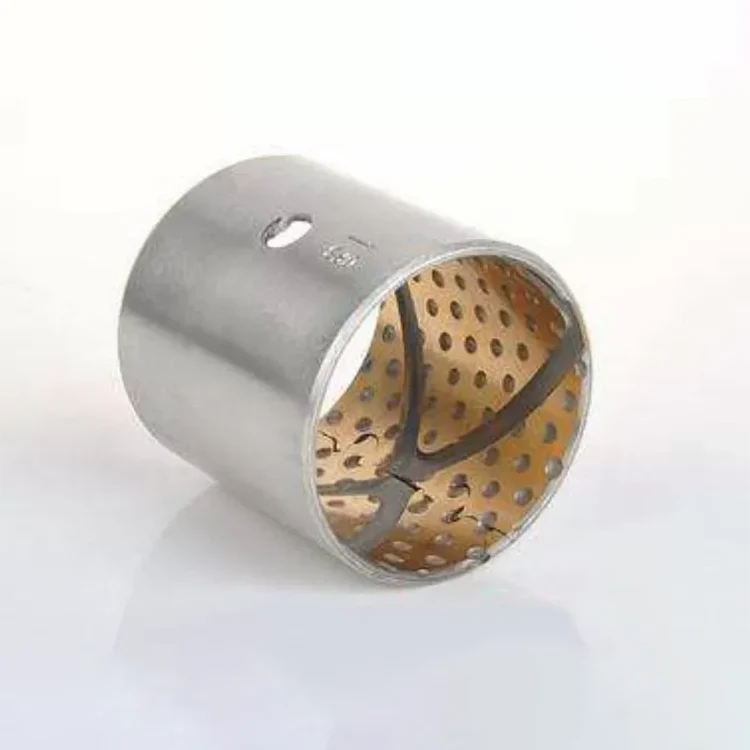

                                    Anti Erosion Coating Low Carbon Steel Bearings Machined With Ball Oil Sockets 2
