Bronze Bushings Tin Bronze For Metallurgy Drying Machine
High quality Bronze Bushings Tin Bronze For Metallurgy Drying Machine is offered by China manufacturers Top Bearings. Buy Bronze Bushings Tin Bronze For Metallurgy Drying Machine which is of high quality directly with low price.
Send Inquiry
Product Description
High quality Bronze Bushings Tin Bronze For Metallurgy Drying Machine is offered by China manufacturers Top Bearings. Buy Bronze Bushings Tin Bronze For Metallurgy Drying Machine which is of high quality directly with low price.
Product Parameter
|
Material: |
Tin-Bronze With Solid Lubricant |
Application: |
On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th |
|
Types: |
Slide Block |
Name: |
JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings |
|
Hardness: |
≥60 HB |
Working Temperature Limits: |
-40~+300℃ |
|
High Light: |
solid lubricant bearings , aluminum bronze bearings |
||

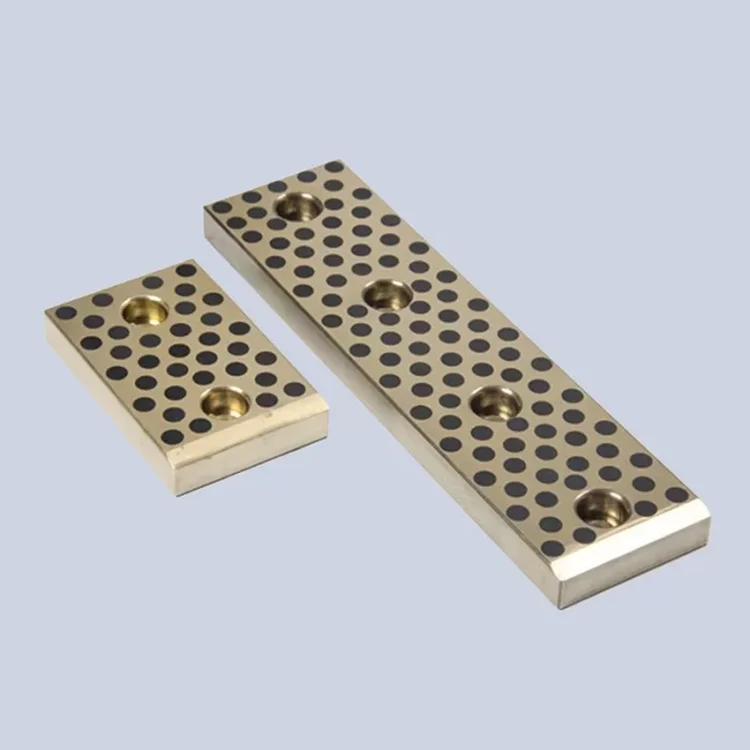

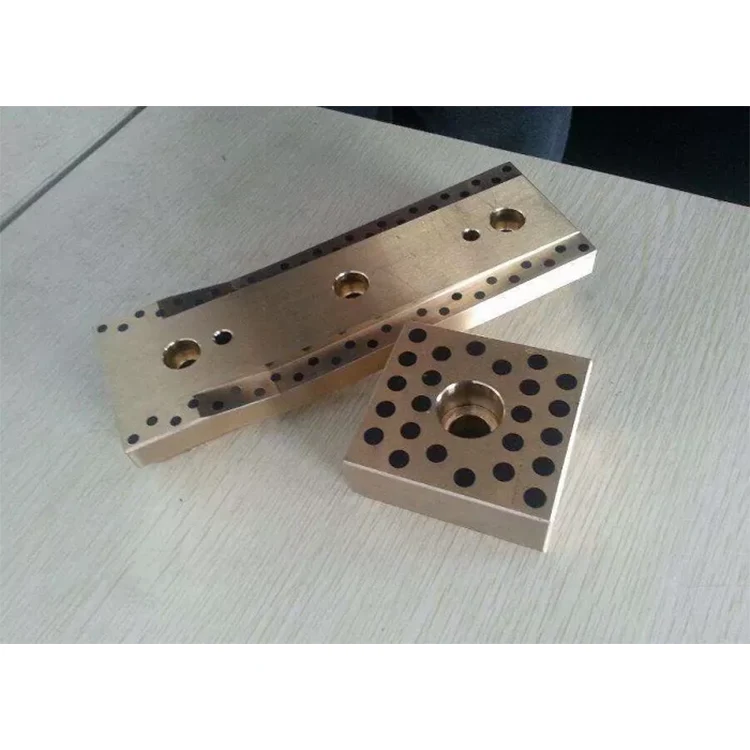

Tin-Bronze With Solid Lubricant Casting Bronze Slide Block
JDB Bronze Slide Block is backed with Tin-Bronze. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. OILES 500# Bronze Slide Block is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.
By made mid-sized holes in order and then insert the solid lubricant into the holes in the bronze bushing to apply the bushings under oil-free conditions.
For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.
Chemical Compositions
|
Product NO. |
Chemical Compositions |
|||||||||
|
TOB 052 |
Cu |
Sn |
Pb |
Zn |
Al Si |
S |
Fe |
P |
Ni |
Sb |
|
83~88 |
4.0~6.0 |
4.0~6.0 |
4.0~6.0 |
<0.01 |
<1.0 |
<0.3 |
<0.1 |
<2.0 |
<0.2 |
|
Physical and Mechanical Performance
|
Performance Index |
Data |
Performance Index |
Data |
|||
|
Density |
g/cm³ |
8.7 |
Hardness |
HB |
≥60 |
|
|
Linear Expansion Coefficient |
10^-5/℃ |
1.6-1.8 |
Flexibility Coefficient |
KN/mm² |
85-115 |
|
|
Heat-conducting Coefficient |
W/(m·k) |
46-63 |
Tensility |
% |
≥15 |
|
|
Tensile Strength |
N/mm² |
≥240 |
Friction |
Oil Lubrication |
μ |
0.03 |
|
Anti-compact Tenacity |
≥KJ/m^3 |
100-200 |
Dry Friction |
0.16 |
||
Application Condition Limits
|
Lubrication Conditions |
Non- Lubrication |
Periodical Lubrication |
Consecutive Lubrication |
|
|
Working Temperature Limits |
℃ |
-40~+300 |
-40~+150 |
-40~+150 |
|
Max. Load pressure |
N/mm² |
40 |
40 |
40 |
|
Max. Linear Velocity |
m/s |
0.40 |
0.85 |
1.00 |
|
Max. PV Value |
N/mm²·m/s |
1.00 |
1.65 |
2.00 |
