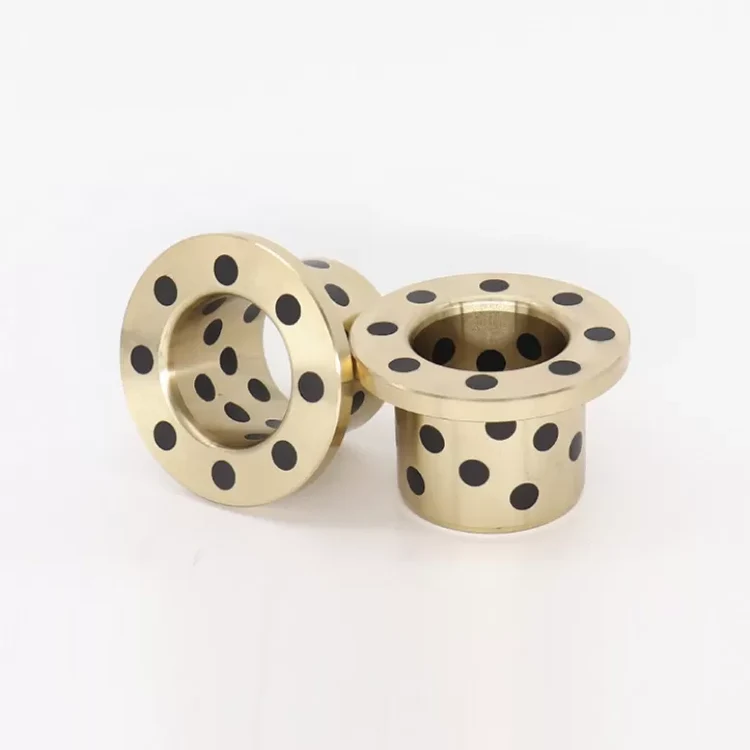

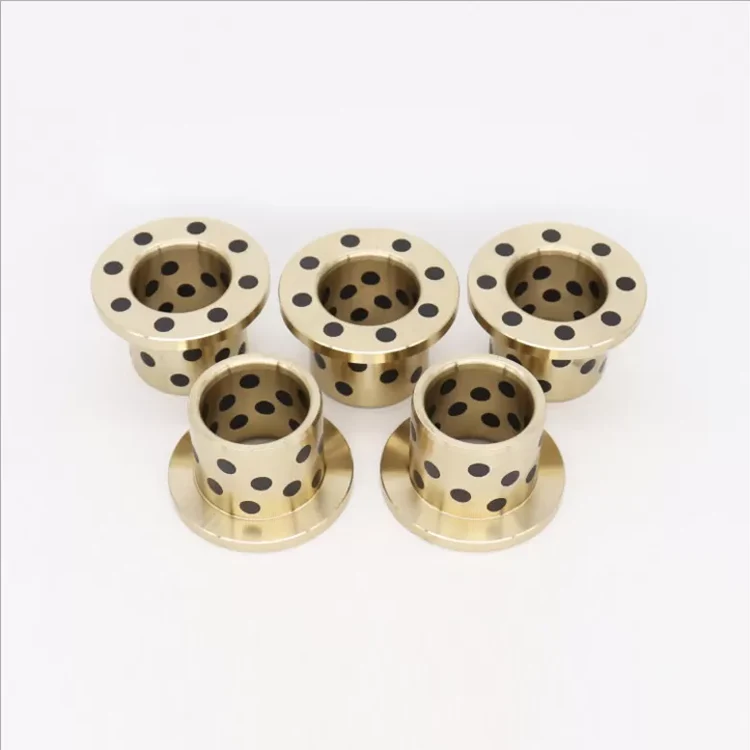

                                    C86300 SAE430B Manganese Bronze Flange Bushings
                                    • C86300 SAE430B Manganese Bronze Flange BushingsC86300 SAE430B Manganese Bronze Flange Bushings
                                    • C86300 SAE430B Manganese Bronze Flange BushingsC86300 SAE430B Manganese Bronze Flange Bushings
                                    • C86300 SAE430B Manganese Bronze Flange BushingsC86300 SAE430B Manganese Bronze Flange Bushings

                                    C86300 SAE430B Manganese Bronze Flange Bushings

                                    Find a huge selection of C86300 SAE430B Manganese Bronze Flange Bushings from China at Top Bearings.

                                    Send Inquiry

                                    Product Description

                                    Find a huge selection of C86300 SAE430B Manganese Bronze Flange Bushings from China at Top Bearings.


                                    Product Parameter

                                    Model Number:

                                    Cylinder Bearings,Cylinder Bearings With Flange

                                    Application:

                                    Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

                                    Certification:

                                    FIBRO Standard

                                    Supply Ability:

                                    Bronze Sleeve Bushings, China, Manufacturers, Suppliers, Factory, Wholesale, Metallic Self Lubricating Bushings,

                                    Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

                                    Bushing Material:

                                    CuZn25Al5 Bronze +Graphite,Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3

                                    Bushing Application:

                                    Parts Repair And Fabrication Services (Heavy Equipments, Automotive, Shipping Industry, Machinery, Etc)

                                    High Light:

                                    C86300 Manganese Bronze Bushings

                                    Centrifugal Casting Bronze Flange Bushings

                                    SAE430B Bronze Flange Bushings


                                    C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting

                                    Graphite Plugged Solid Lubricant Bearings Extremely High Load Capacity. Graphite Plugged Bushings Bronzebuchsen Gleitlager Custom Parts & Cast Bronze Bushings Selbstschmierende Gleitlager

                                    brass bushing, tin bronze bushing, national standard tin bronze bearing, has a wealth of production experience, has many years of production experience, manufacturers direct sales, good technology, reasonable price, high quality and low price.



                                    Graphite Plugged Products are a complete line self lubricated products that excel whenever standard lubrication is impractical, including heavy load, high temperature applications. They are manufactured from a variety of copper alloys including Aluminum Bronze (CDA 954), Bearing Bronze (CDA 932) and Manganese Bronze (CDA 863).



                                    Available as Graphite Plugged Bearings, Washers and Self Lubricated Wear plates.C86300 Manganese Bronze Cast Graphite Bushings are a high-strength, non-heat-treatable copper alloy designed for use in applications requiring a good combination of outstanding wear characteristics and high load carrying capacity at high loads and low speeds.



                                    Flange Solid Bronze Metallic Self-lubricating Bearings

                                    Copper Cast Bronze Bearings / Flanged Bronze Bearings

                                    Cast Bronze Bearing with Graphite Plugs

                                    graphite plugged bronze bushings



                                    CuZn25Al5 C86300 UNS, mechanical properties as manufactured.Very high strength values. Bearings at high load and low sliding speed.C86300 Manganese Bronze Bushings To find and order parts online from the china factory, simply type the part number from our Solid Bronze Bushes catalog.
                                    Centrifugal Casting Bushing C86300 Bronze Metallic Self-Lubricating Bushings / Plain Bearings Cast Bronze with solid lubricant plugs - Metric Engineered for a Longer More Reliable Service Life

                                    C86300* Manganese Bronze Flange Bushings

                                    C93200* Leaded Tin BronzeSleeve Bushings

                                    C95400* Aluminum Bronze Bushings Material

                                    c86300 bronze bushing

                                    Cast C86300 Manganese Bronze Bushings a solid copper alloy bearing bushing casting produced by centrifugal casting, and belongs to the machining field.
                                    Centrifugal casting is a technique and method of injecting liquid metal into a high-speed rotating casting mold so that the liquid metal moves in centrifugal motion and fills the mold and forms the casting.Because of the centrifugal movement, the liquid metal can well fill the mold and form the free surface of the casting in the radial direction.Cylindrical inner hole can be obtained without core.Helps to remove gases and inclusions from the liquid metal;It affects the crystallization process of metal and improves the mechanical and physical properties of casting.


                                    Manganese bronze alloys can operate under very high loads and speeds. However, bearing applications require reliable lubrication. Besides excellent mechanical qualities, these alloys have good corrosion resistance. The standard alloy in this group is high tensile C86300, which is comprised of copper, manganese, aluminum and iron. This combination raises the tensile strength to over 110,000 KSI.
                                    Symbol:C86300 BRONZE BUSHINGS
                                    Category:ASTM Casting Copper Alloy
                                    Type:Lead Free Brass
                                    Hot Selling Graphite Copper Oiles Bearing Metal Sleeve Guide bushing 500# Self Lubricated Bush


                                    Chemical Composition (%max., unless shown as range or min.)

                                    Chemical Composition mass/%

                                    Cu

                                    Sn

                                    Al

                                    Fe

                                    Mn

                                    Ni

                                    Pb

                                    Si

                                    P

                                    Zn

                                    60-66

                                    0.2

                                    5.0-7.5

                                    2.0-4.0

                                    2.5-5.0

                                    1

                                    0.2

                                    _

                                    _

                                    _



                                    Mechanical properties

                                    Tensile strength Mpa(Min)

                                    Yield strength MPa(Min)

                                    Elongation %

                                    Brinell hardness(HB)

                                    758

                                    427

                                    14

                                    225



                                    Note

                                    1, In Chemical Composition, Single values represent maximums.
                                    2, Mechanical performance of hardness value is only for reference

                                    Solid Bronze Metallic CuZn25AI5Mn4Fe3 Plug Graphite Cast Bronze Bearings pile driver
                                    TOB-50 Solid Bronze Metallic Self-lubricating Bearings Cast Bronze Bearing with Graphite Plugs




                                    Material:CuZn25AI5Mn4Fe3

                                    Structure Characteristics and Applications


                                    TOB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.



                                    Characteristics

                                    with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available

                                    TOB-50 Solid lubricating bearings
                                    1. May work without any ol for long period
                                    2. Extremely high load capacity, good anti-wear and lower friction
                                    3. Particularly appropriate for low speed and high load
                                    4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
                                    5. Good chemical resistant and anti-corrosion characteristics
                                    6. Can b€ used in wide range of temperature from -40℃-+300℃



                                    Strusture

                                    TOB-50 Solid Lubricant Sliding Bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



                                    Technical Data

                                    Grade

                                    50#

                                    50S1

                                    50S2

                                    50S3

                                    650S5

                                    Material

                                    CuZn25AI5Mn4Fe3

                                    CuSn5Pb5Zn5

                                    CuAI10Ni5Fe5

                                    CuSn12

                                    CuZn25AI5Mn4Fe3

                                    Density

                                    8

                                    8.9

                                    7.8

                                    8.9

                                    8

                                    Hardness

                                    ≥210

                                    ≥70

                                    ≥150

                                    ≥75

                                    ≥235

                                    Tensile strength

                                    ≥750

                                    ≥250

                                    ≥500

                                    ≥270

                                    ≥800

                                    Yield strength

                                    ≥450

                                    ≥90

                                    ≥260

                                    ≥150

                                    ≥450

                                    Elongation

                                    ≥12

                                    ≥13

                                    ≥10

                                    ≥5

                                    ≥8

                                    Coefficient o linear expansion

                                    1.9×10-5/℃

                                    1.8×10-5/℃

                                    1.6×10-5/℃

                                    1.8×10-5/℃

                                    1.9×10-5/℃

                                    Max.Temp.

                                    -40~+300℃

                                    -40~+400℃

                                    -40~+400℃

                                    -40~+400℃

                                    -40~+300℃

                                    Max.dynamic load

                                    100

                                    60

                                    50

                                    70

                                    120

                                    Max.speed(Dry)

                                    15

                                    10

                                    20

                                    10

                                    15

                                    N/mm²*m/s(Lubrication)

                                    200

                                    60

                                    60

                                    80

                                    200

                                    Compression deformation

                                    < 0.01 mm

                                    < 0.05mm

                                    < 0.04mm

                                    < 0.05mm

                                    < 0.005mm



                                    Chemical Compositions

                                    Product NO.

                                    Chemical Compositions

                                    TOB-50

                                    Cu

                                    Zn

                                    Al

                                    Fe

                                    Mn

                                    Si

                                    Ni

                                    Sn

                                    Pb

                                    60~66

                                    22~28

                                    5.0~8.0

                                    2.0~4.0

                                    2.5~5.0

                                    <0.1

                                    <0.5

                                    <0.2

                                    <0.2


                                    China C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting wholesale



                                    Hot Tags: C86300 SAE430B Manganese Bronze Flange Bushings, China, Manufacturers, Suppliers, Factory, Wholesale, Customized, In stock, Free Sample, Brand, Price
