Flanging Sleeve Shoulder Type Oil Free Bushing
Top Bearings is Flanging Sleeve Shoulder Type Oil Free Bushing manufacturers and suppliers in China who can wholesale Flanging Sleeve Shoulder Type Oil Free Bushing. We can provide professional service and better price for you. If you interested in Flanging Sleeve Shoulder Type Oil Free Bushing, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Send Inquiry
Product Description
Top Bearings is Flanging Sleeve Shoulder Type Oil Free Bushing manufacturers and suppliers in China who can wholesale Flanging Sleeve Shoulder Type Oil Free Bushing. We can provide professional service and better price for you. If you interested in Flanging Sleeve Shoulder Type Oil Free Bushing, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Product Parameter
|
Supply Ability: |
Plug Graphite Bearings, China, Manufacturers, Suppliers, Factory, Wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Application: |
Engineering Machinery，mould Bronze Bushing |
|
Certification: |
DIN G-CuSn 7 ZnPb |
Packaging Details: |
STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE |
|
Bushing Material: |
High Tensile With Graphite |
Bushing Application: |
Parts Repair And Fabrication Services (Heavy Equipments, Automotive, Shipping Industry, Machinery, Etc) |
|
High Light: |
Sleeve Type Oil Free Bushing , Sleeve Type Oilless Bushings , Oil Free Bushing Self Lubricating |
||

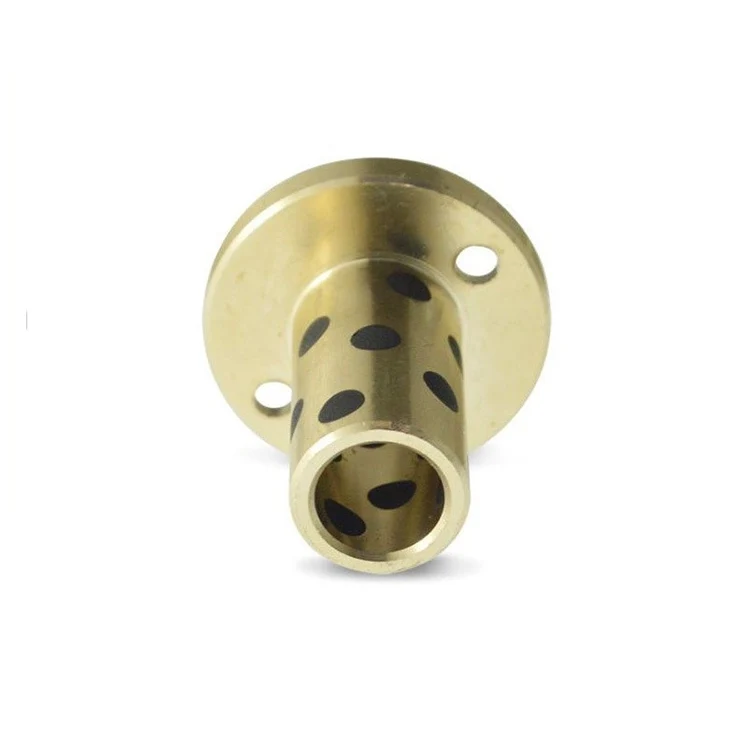

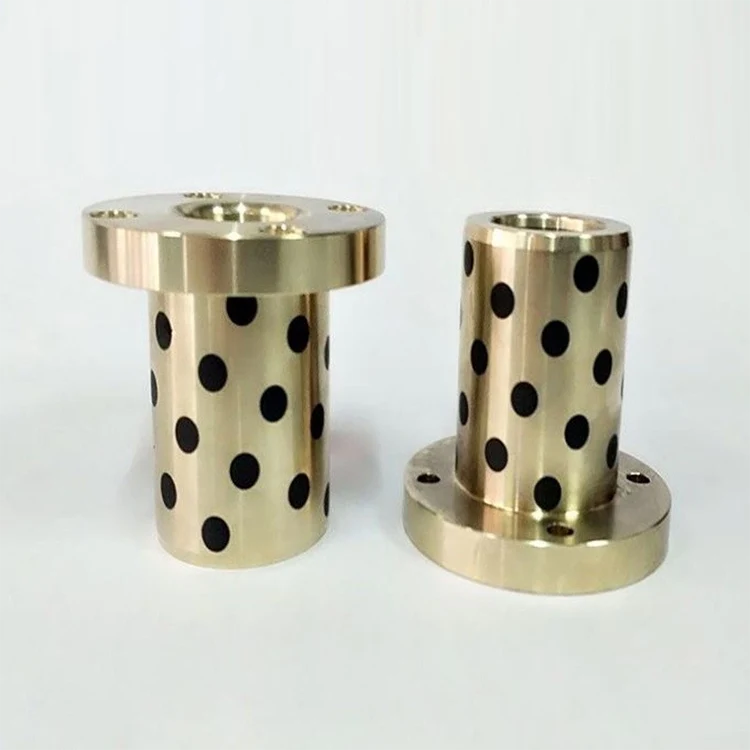

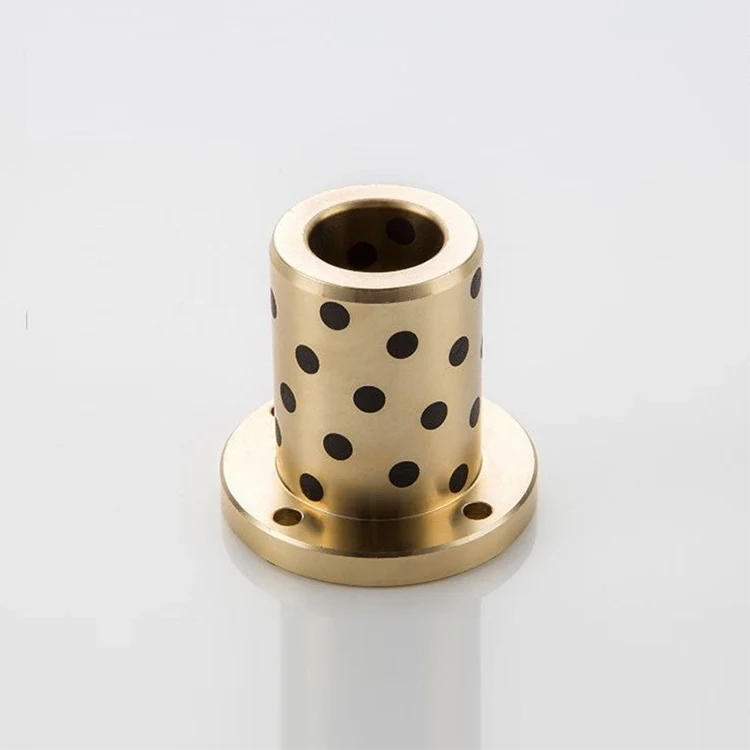

Flanging Sleeve Shoulder Type Oil Free Bushing Self Lubricating
JFB Self-Lubricating Flanging Sleeve/Shoulder Type Oil-Free Bushing
Bronze Oilless Bush MPFZ40/45/50 Equivalent
Solid Lubricant Inlaid Bearing,JFB self-lubricating flanging sleeve/shoulder type oil-free bushing wear-resistant guide sleeve graphite copper sleeve MPFZ40/45/50, Oilless Bronze bushing with graphite
Oilless Bushings Equivalent Bronze bearings, Flange Bushings
65*5/40*50*20【MPFZ4020】
65*5/40*50*25【MPFZ4025】
65*5/40*50*30【MPFZ4030】
65*5/40*50*35【MPFZ4035】
65*5/40*50*40【MPFZ4040】
65*5/40*50*45【MPFZ4045】
65*5/40*50*50【MPFZ4050】
65*5/40*50*60【MPFZ4060】
70*5/45*55*30【MPFZ4530】
70*5/45*55*35【MPFZ4535】
70*5/45*55*40【MPFZ4540】
70*5/45*55*50【MPFZ4550】
70*5/45*55*60【MPFZ4560】
75*5/50*60*30【MPFZ5030】
75*5/50*60*35【MPFZ5035】
75*5/50*60*40【MPFZ5040】
75*5/50*60*50【MPFZ5050】
75*5/50*60*60【MPFZ5060】
Introduction of material
1. The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2. The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.
3. Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.
Bronze Oilless Bush SPB Sankyo Oilless Bushings Equivalent. Oilless Bush Catalog.Manufacturer of Oilless Bush - Oilless Bronze Bushes, Oilless Guide Bushing, Oilless Bushing, and Brass Bushes offered by bronzegleitlager.com Graphite Bronze Bushes online.oilless bushes material is made of strong cast bronze based metal with special solid lubricants graphite embedded. The base metal with stands high load and the solid lubricants provide for self-lubrication ...
|
Company Type |
ZHEJIANG TOP BEARINGS CO., LIMITED |
|
Material |
Brass, Tin bronze, Lead bronze,Aluminum bronze,ect |
|
Standard |
ISO 2008,SGS,CE |
|
Fearture |
1. High load capacity Cood anti-wearing |
|
Process |
Centrifugal casting,sand casting,Machining,Injection |
|
Quality assurance |
2D Projector, Height Gague,Micrometer,Roughness Tester, |
|
Tolerance |
Roundness::+/- 0.01mm. |
|
Payment |
L/c ,T/T,Paypal,Western Union,Ali Credit insurance |
|
Port |
CHINESE |
|
Drawing |
Yes |
|
Sample |
Available |
|
MOQ |
50KG |
|
Lead time |
According to required time |
|
Bronze Bushing Technology |
|||||||
|
Type |
JDB-1 |
JDB-2 |
JDB-3 |
JDB-4 |
JDB-5 |
|
|
|
Base material |
CuZn24Al6 |
CuSn6Zn6Pb3 |
CuSn6Zn6Pb3 |
HT-250 |
CuCr15 |
|
|
|
Base Hardness |
Hb230 |
HB 90 |
HB 80 |
HB 210 |
HB 60 |
|
|
|
(Hb270) |
|
|
|||||
|
Friction coef(u) |
<0.16 |
<0.15s |
<0.14 |
<0.17 |
<0.17 |
|
|
|
Temperature limit |
300℃ |
350℃ |
300℃ |
400℃ |
350℃ |
|
|
|
Dynamic Load Limit |
100 N/mm2 |
60 N/mm2 |
70 N/mm2 |
60 N/mm2 |
250 N/mm2 |
|
|
|
Load LImit Under 1m/min |
25 N/mm2 |
15 N/mm2 |
20 N/mm2 |
15 N/mm2 |
70 N/mm2 |
|
|
|
Speed limit |
0.40 m/s 5 m/s |
2 m/s |
2 m/s |
0.5 m/s |
0.1 m/s |
|
|
|
PV Limt |
3.8 N/mm2·m/s |
0.5 N/mm2·m/s |
0.6 N/mm2·m/s |
0.8 N/mm2·m/s |
2.5 N/mm2·m/s |
|
|
|
|
|||||||
|
Load Applied |
62N/mm2 |
24.5N/mm2 |
14.7N/mm2 |
||||
|
Item |
Wear Depth |
Time |
Wear Depth |
Time |
Wear Depth |
Time |
|
|
Type |
Lubrication |
(mm) |
(hrs) |
(mm) |
(hrs) |
(mm) |
(hrs) |
|
CuSn6Zn6Sn3 |
Oil |
0.098 |
10 |
0.125 |
100 |
0.1 |
100 |
|
JDB-1 |
dry friction |
0.075 |
100 |
0.015 |
100 |
0.012 |
100 |
|
JDB-2 |
dry friction |
0.025 |
30 |
0.065 |
100 |
0.025 |
100 |
|
JDB-3 |
dry friction |
0.03 |
30 |
0.12 |
100 |
0.015 |
100 |
|
JDB-4 |
dry friction |
0.03 |
10 |
0.25 |
20 |
0.011 |
100 |
|
JDB-5 |
dry friction |
0.022 |
100 |
.0.13 |
100 |
0.01 |
100 |
