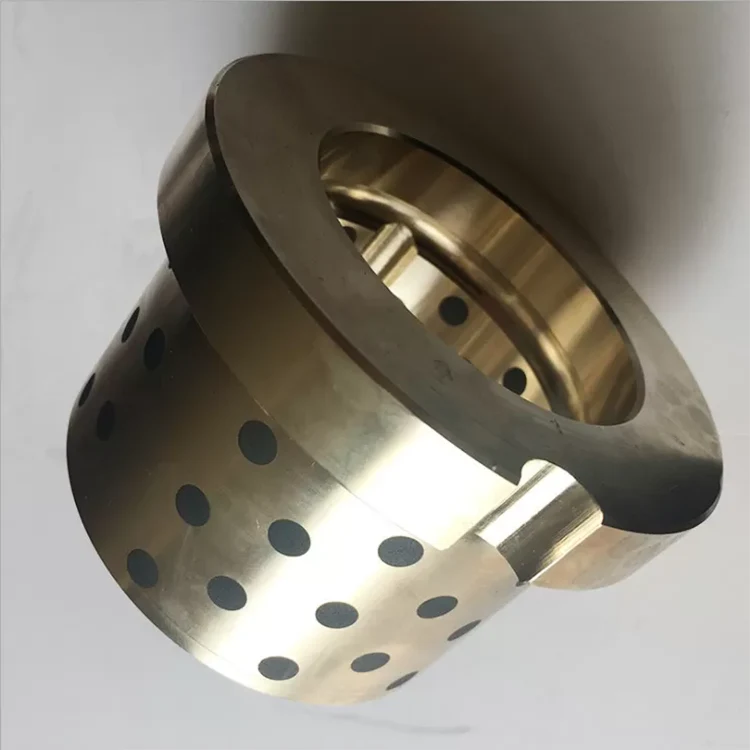

Graphite Inlaid Oiless Gunmetal Cast Bronze Bearings
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Graphite Inlaid Oiless Gunmetal Cast Bronze Bearings looks forward to cooperating with you.
Send Inquiry
Product Description
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Graphite Inlaid Oiless Gunmetal Cast Bronze Bearings looks forward to cooperating with you.
Product Parameter
|
Certification: |
SEA430B,C86300,DIN1709,FIBRO |
Supply Ability: |
CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers |
|
Material: |
Tin Phosphorus Bronze |
Characteristics: |
Wear Resistance And Corrosion Resistance |
|
High Light: |
gunmetal cast bronze bearings , oilless cast bronze bearings , graphite inlaid cast bronze bearings |
||
Maintenance-free plain bearings with lubricating plugs MADE IN CHINA
NORMAL METRIC BUSHING Graphite Inlaid Oiless Gunmetal Bearing for prototype machine
Self-lubricating bearing
Product features:1.No need to install oil, tank for processing falling holes
2. Lower operating costs
3. Shortening desin time
4. recycling of lubricating oils and environmental protection
Tin bronze graphite inlaid bearing is made of tin bronze as the base material. According to the working condition, according to a certain proportion, holes are machined in its working face and filled with solid lubricant.Solid bronze bearing is a standard item of our company. This type self-lubricating bearing is also called solid metal bearing,graphite plugged bearing,solid lubricating bearing,guide bushes,cast bronze bushing, #500 oilless bearing,oiles flange bearing and solid sliding bearing.
Material Structure
Material: CuSn6Zn6Pb3 + graphite or MOS2.
Characteristics
● Special suitable for low loads and middle velocity operations, also perform well at high temperature;
● Excellent resistance to chemical attack and corrosion;
● Maintenance free.
Availability
● Cylindrical oiles bushing, flanged oiless bearing, thrust washer and oiles slide plate are standard fabrication;
● Special designs and material can be made according to your design;
● Special material such as CuZn5Sn5Pb5, CuSn10Pb10 or CuSn12 can be made based on your requirement.
Application
Solid bronze bearing is widely used in fire place door, convey way of the baking furnace, rubber machinery, light industrial machinery, machine tool industry and etc.
Technical Data
|
Max. dynamic load |
60N/mm2 |
|
Max. Temperature |
350 |
|
Base Hardness |
HB80-100 |
|
Friction coefficient |
<0.15 |
|
Highest sliding speed |
2m/s |
|
Material |
CuZn25Al5 |
CuSn5Pb5Zn5 |
CuAl10Ni5Fe5 |
CuSn12 |
CuZn32Al5Ni3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
HB hardness |
>210 |
>70 |
>150 |
>95 |
>280 |
|
Tensile strength N/mm2 |
>750 |
>200 |
>600 |
>260 |
>540 |
|
Yeild strength N/mm2 |
>450 |
>90 |
>260 |
>150 |
>450 |
|
Elongation % |
>12 |
>15 |
>10 |
>8 |
>0.3 |
|
Coefficient of |
1.9x10-5/°C |
1.8x10-5/°C |
1.6x10-5/°C |
1.8x10-5/°C |
1.8x10-5/°C |
|
Max. temp. |
-40~+300 |
-40~+400 |
-40~+400 |
-40~+400 |
-40~+150 |
|
Max. load N/mm2 |
100 |
60 |
50 |
70 |
150 |
|
Max. speed (Dry) m/min |
15 |
10 |
20 |
10 |
15 |
|
Max. PV |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
<0.01mm |
<0.05mm |
<0.04mm |
<0.05mm |
<0.005mm |
