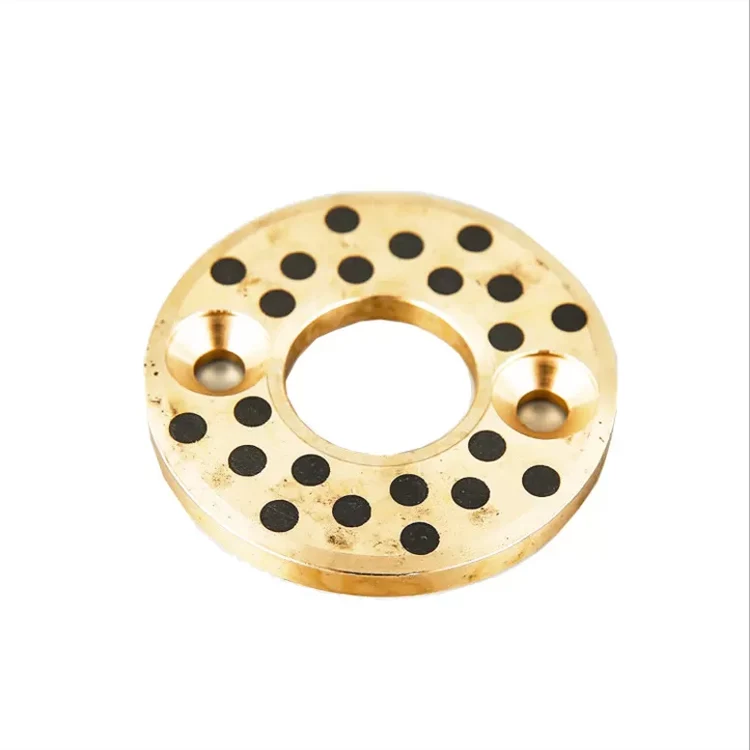

Oil Free Bronze Graphite Sliding Plate OILES 500SP
High quality Oil Free Bronze Graphite Sliding Plate OILES 500SP is offered by China manufacturers Top Bearings. Buy Oil Free Bronze Graphite Sliding Plate OILES 500SP which is of high quality directly with low price.
Send Inquiry
Product Description
High quality Oil Free Bronze Graphite Sliding Plate OILES 500SP is offered by China manufacturers Top Bearings. Buy Oil Free Bronze Graphite Sliding Plate OILES 500SP which is of high quality directly with low price.
Product Parameter
|
Model Number: |
Bronze Wear Plate |
Application: |
Manufacturing Plant, Machinery Repair Shops, FarmsManufacturing Plant, Machinery Repair Shops, Farms |
|
Certification: |
ISO 9001 |
Supply Ability: |
7000000 Piece/Pieces One Week |
|
Bushing Material: |
Bronze Graphite |
Bushing Application: |
Parts Repair And Fabrication Services (Heavy Equipments, Automotive, Shipping Industry, Machinery, Etc) |
|
High Light: |
Oil Free Graphite Bronze Bushing , 500SP Sliding Plate Bearing , Self Lube Sliding Plate Bearing |
||
Oil Free Bronze Graphite Self Lube Wear Plates OILES 500SP Bearing
Oil-Free Slide Plates Wear Plate OILES 500SP Bearing
Oil-free Slide Plates Wear Plate,
Materials OILES #500SP
Shop China for all your Oil-Free Slide Plates and Oil-free Slide Plates needs. we offer free CAD download, short lead times, competitive pricing
Wear Plates, Strips, Liners and Shoes | Bi-Metal, Cam Dwell, L-Gibs, V-Blocks, Custom Designed
Oilless Bronze Graphite Copper Washers Sliding plate Bearing Bushing
The future is here
The opportunities are limitless
|
Size |
Customized |
||||
|
Material |
CuZn25AI5Mn4Fe3 |
||||
|
Color |
Natural |
||||
|
Certification |
ISO9001, TS16949 |
||||
|
Density |
8g/cm³ |
||||
|
Hardness |
>210HB |
||||
|
Tensile strength |
>750N/mm² |
||||
|
Yeild strength |
>340N/mm² |
||||
|
Elongation |
>12% |
||||
|
Coefficient of linear expansion |
2.2*10-5/℃ |
||||
|
Heat-conducting Coefficient |
38~55W(/m.k) |
||||
|
Flexibility Coefficient |
100~140KN/mm² |
||||
|
Temp. Limits |
-40~+200℃ |
||||
|
Max. Dynamic Load |
98 N/mm² |
||||
|
Max.speed |
Dry Lubrication 0.3m/s,Oil Lubrication 1m/s |
||||
|
Max.PV |
Dry Lubrication 1.65N/mm²*m/s,Oil Lubrication 3.25N/mm²*m/s |
||||
|
Friction |
Dry Lubrication 0.12~0.16,Oil Lubrication 0.03~0.08 |
||||
|
Application |
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine |
||||
|
Standard No |
W |
L |
a |
b |
Sketch |
|
SWP -18*50 |
18 |
50 |
- |
20 |
A |
|
SWP -18*75 |
75 |
45 |
|||
|
SWP -18*100 |
100 |
70 |
|||
|
SWP -18*150 |
150 |
60 |
B |
||
|
SWP -28*50 |
28 |
50 |
- |
20 |
A |
|
SWP -28*75 |
75 |
45 |
|||
|
SWP -28*100 |
100 |
70 |
|||
|
SWP -28*150 |
150 |
60 |
B |
||
|
SWP -38*50 |
38 |
50 |
- |
20 |
A |
|
SWP -38*75 |
75 |
45 |
|||
|
SWP -38*100 |
100 |
70 |
|||
|
SWP -38*150 |
150 |
60 |
B |
||
|
SWP -48*75 |
48 |
75 |
- |
45 |
A |
|
SWP -48*100 |
100 |
70 |
|||
|
SWP -48*125 |
125 |
95 |
|||
|
SWP -48*150 |
150 |
60 |
B |
||
|
SWP -75*75 |
75 |
75 |
45 |
45 |
C |
|
SWP -75*100 |
100 |
70 |
|||
|
SWP -75*125 |
125 |
95 |
|||
|
SWP -75*150 |
150 |
60 |
D |
||
|
SWP -100*100 |
100 |
100 |
70 |
70 |
C |
|
SWP -100*125 |
125 |
95 |
|||
|
SWP -100*150 |
150 |
60 |
D |
||
|
|
OILES 500SP Bearing |
|
Content |
SPB,SPF,SPFG,SPW,SGF,SGB,SWP,SLP,SLC,SLI,JEGB, |
|
Size |
METRIC SIZE |
