Rolling Machines Casting Bronze Sleeve Bearings
As a professional high quality Rolling Machines Casting Bronze Sleeve Bearings manufacturers, you can rest assured to buy Rolling Machines Casting Bronze Sleeve Bearings from Top Bearings and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
As a professional high quality Rolling Machines Casting Bronze Sleeve Bearings manufacturers, you can rest assured to buy Rolling Machines Casting Bronze Sleeve Bearings from Top Bearings and we will offer you the best after-sale service and timely delivery.
Product Parameter
|
Material: |
High Strength Copper With Solid Lubricant |
Application: |
Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Injection Molders And Auto Molds, Etc. |
|
Types: |
Cylinder Bearings, Thrust Washer, Slide Block, Etc. |
Name: |
JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings |
|
Hardness: |
≥260 HB |
Working Temperature Limits: |
-40~+300℃ |
|
High Light: |
solid lubricant bearings , aluminum bronze bearings |
||
High Strength Bronze Alloy With Solid Lubricant Casting Bronze Bearings

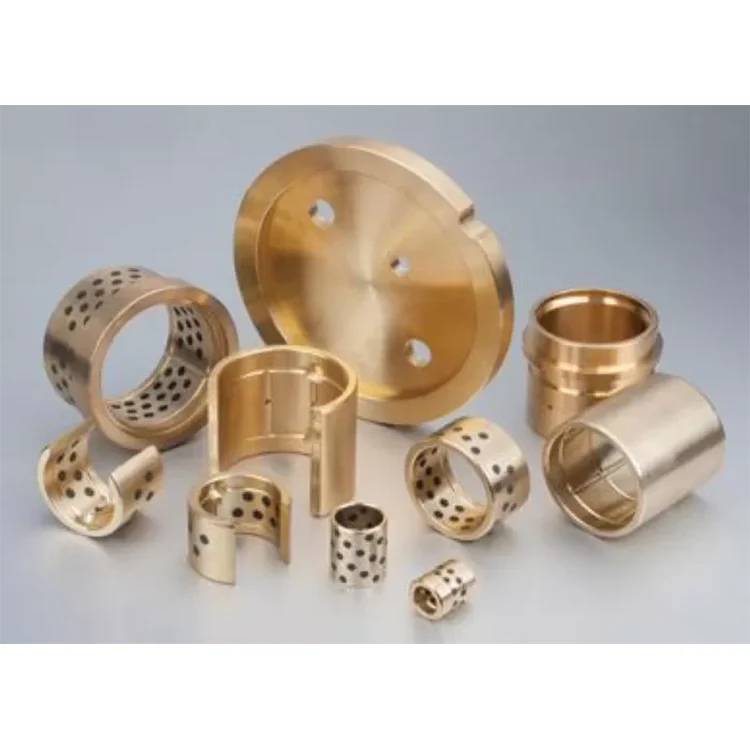

High Strength Bronze Alloy With Solid Lubricant Casting Bronze Bearings is backed with high strength copper alloy. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. High Strength Bronze Alloy With Solid Lubricant Casting Bronze Bearings is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, injection molders and auto molds, etc.

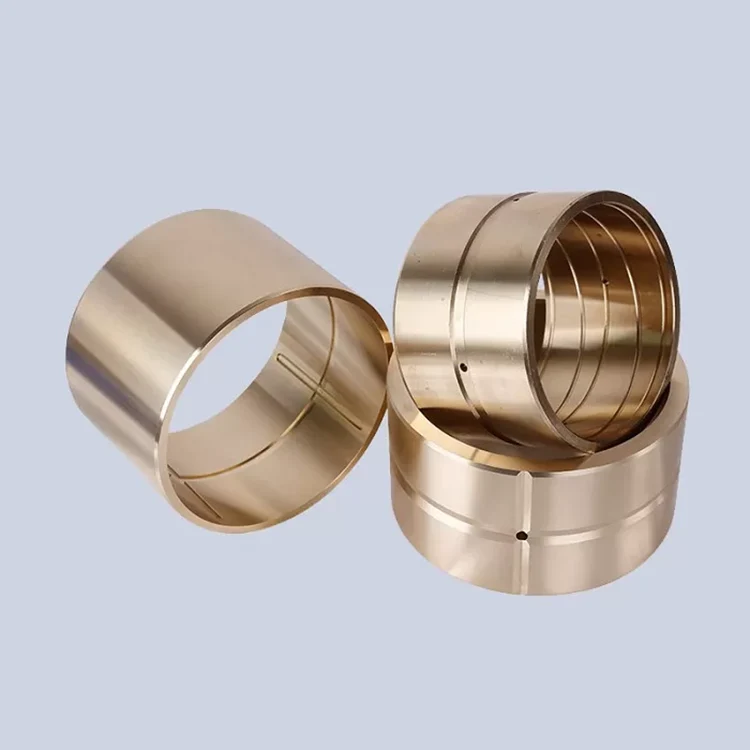

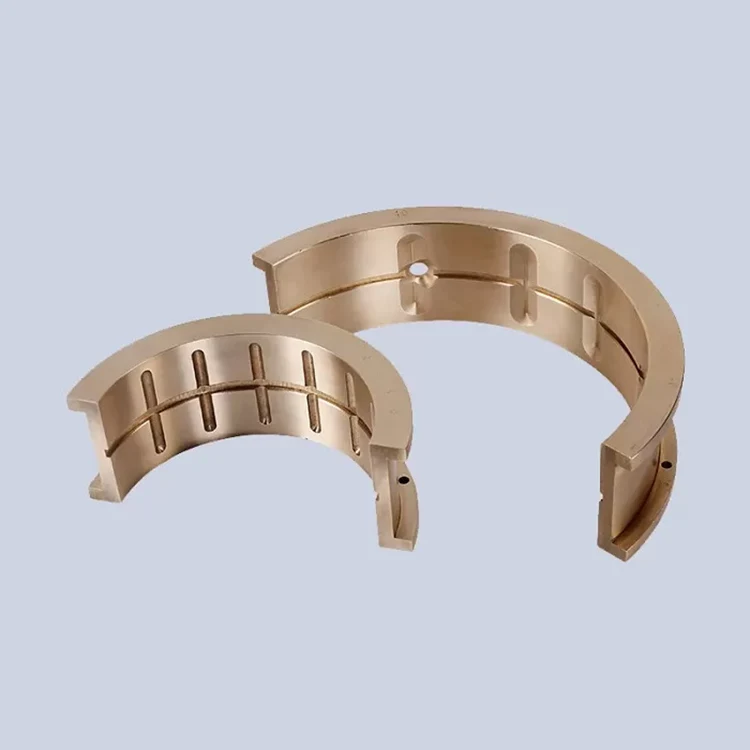

Bronze based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect. By made mid-sized holes in order and then insert the solid lubricant into the holes in the bronze bushing to apply the bushings under oil-free conditions.
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
TOB 051 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~65 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Physical and Mechanical Performance
|
Performance Index |
Data |
Performance Index |
Data |
|||
|
Density |
g/cm³ |
8.2 |
Hardness |
HB |
≥260 |
|
|
Linear Expansion Coefficient |
10^-5/℃ |
1.6-2.0 |
Flexibility Coefficient |
KN/mm² |
80-120 |
|
|
Heat-conducting Coefficient |
W/(m·k) |
38-55 |
Tensility |
% |
≥2 |
|
|
Tensile Strength |
N/mm² |
≥850 |
Friction |
Oil Lubrication |
μ |
0.03 |
|
Anti-compact Tenacity |
≥KJ/m^3 |
300-400 |
Dry Friction |
0.16 |
||
Application Condition Limits
|
Lubrication Conditions |
Non- Lubrication |
Periodical Lubrication |
Consecutive Lubrication |
|
|
Working Temperature Limits |
℃ |
-40~+300 |
-40~+150 |
-40~+150 |
|
Max. Load pressure |
N/mm² |
130 |
130 |
130 |
|
Max. Linear Velocity |
m/s |
0.30 |
0.80 |
1.25 |
|
Max. PV Value |
N/mm²·m/s |
1.65 |
3.25 |
3.25 |
