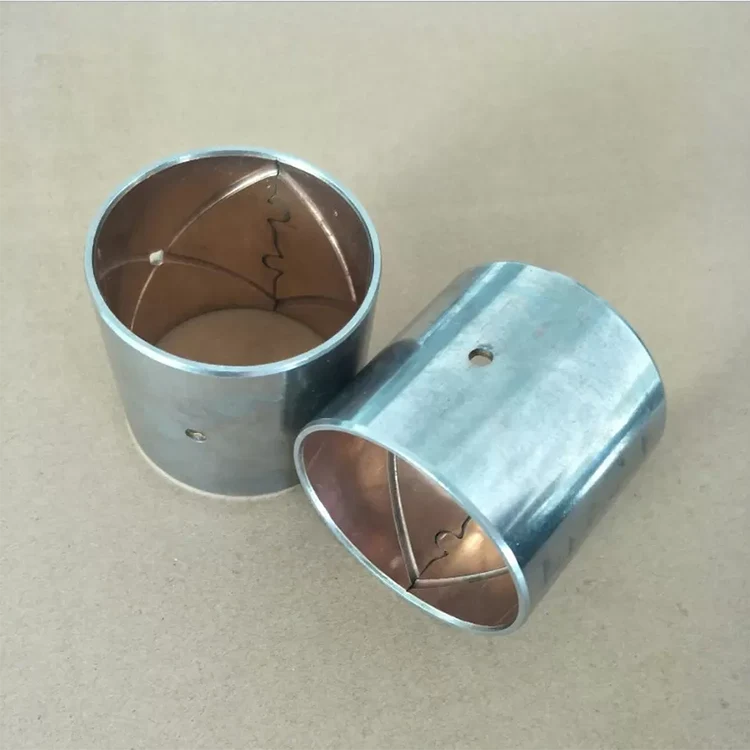

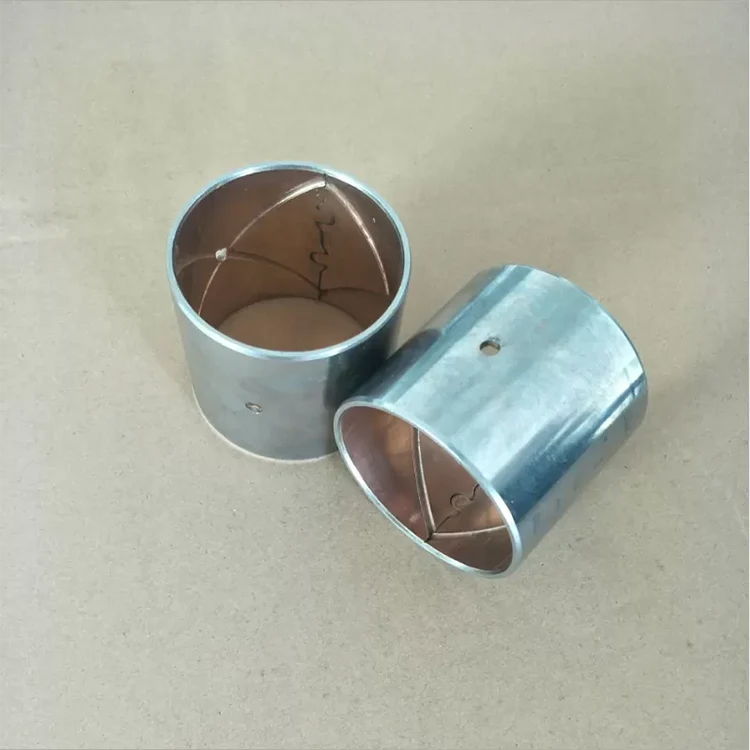

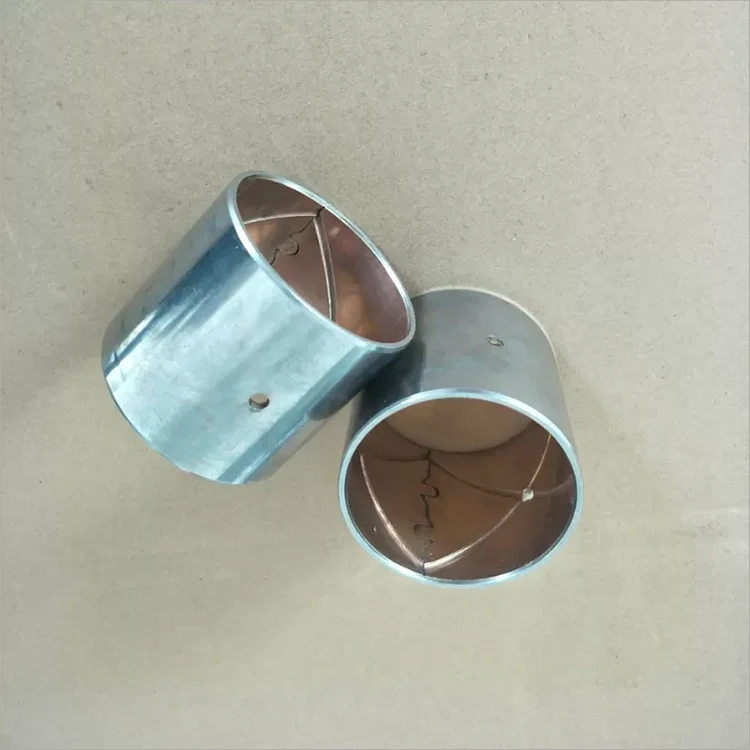

Sintered Bronze Rocker Arm Bimetal Bearing

High quality Carbon Sintered Bronze Rocker Arm Bimetal Bearing is offered by China manufacturers Top Bearings. Buy Sintered Bronze Rocker Arm Bimetal Bearing which is of high quality directly with low price.

Product Parameter

Rocker Arm Bushing

We are the professional Rocker arm bush producers. Our products perform well under high load conditions. Our bushings maintain tight dimensional tolerances, have an excellent surface finish, are machine-friendly, and have a tapered wire at each end for easy installation.

Rocker Arm Bushing

Two available Materials:

Copper Lead

· High-quality general polish

· Minimal relief between bearing layer and steel backing to facilitate the assessment of the bond integrity.

· Fully developed and polished islands of Lead to ensure consistency of comparative analysis with standards.

Aluminium Tin

· High-quality general polish.

· Minimal relief between bearing layer, intermediate foil, and steel backing in order to facilitate the assessment of

the bond integrity.

· Also to ensure consistent comparative analysis of type, size, and distribution of different

phases present in the range of alloys.

Find here online price details of bimetal bushings which are produced from bimetallic strips with sintered copper-lead-bronze coating and steel as support material.The steel back provides extra strength, while the sintered bronze coating provides a bearing surface which results in reduced friction and wear. Bimetal bushings are widely used for applications with vibrating loads, impacts and friction area.

Types of Oil Pockets for bimetal bushings

Sintered Bimetal Bearings SAE799 Layer + Steel Backed Bushings + Copper Plating / Tin-Plating

Bimetal bearing is a steel-backed bushing plate as the matrix, the surface of sintered CuPb24Sn4 alloy material products. The bimetal bushings have good anti-fatigue strength and bearing capacity. Suitable for medium speed medium load. There are occasions for oil sliding. When the surface is plated with soft alloy, it can be used as bearing and connecting rod bushing for the high-speed internal combustion engines to achieve good wear resistance and fatigue resistance.

Technical parameters

Thickness tolerance between inner hole machining and non-machining for bimetal bearings

Bimetallic boundary lubricated bearings, engine bearings

Manufacturer of Self Lubricating Bushing - Self Lubricating Graphite Bush, Self Lubricating Bimetal Bushings

We take quality as the core value of the enterprise.

Bimetal Bearing Material

Bimetal composite bearings with high-quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy CuPb24Sn4 as wear-resisting layer of bearing.

Bimetal Bearing Raw material to produce

Bimetal Bearing Design

We can design bimetal bearings according to the operating conditions of copper alloy surface processing of various types of oil tank, oil hole, hole, etc., in order to suit cannot continue to go hard or go occasion. Good bonding strength and optimum bearing capacity can be obtained by secondary sintering and secondary extrusion.

Types of Oil Pockets for bimetal bushings

Oil Holes Form

Diamond Form

Smooth (No Oil Pocket)

Types of Oil Grooves for bimetal bushings

Types of Butt Jionts for bimetal bushings (Slit & Clinch)

Bimetal Bearings Bushings Buckle Form

The Bimetal Bearings Bushing Solution

For every industry in the world
High quality self - lubricating products are available at the same time
Professional solutions Bimetal Bearing constantly improve the quality of

products and services, to meet the challenges of The Times!

The Bimetal Bearings Bushing Solution

Bimetal Bearings Design

Manufacture based on clients’ drawings

Integrated production

International service experience

product advantages
