Solid Lubricant Embedded Thrust Bearing Washer

Top Bearings is a professional leader China Solid Lubricant Embedded Thrust Bearing Washer manufacturers with high quality and reasonable price. Welcome to contact us.

Product Parameter

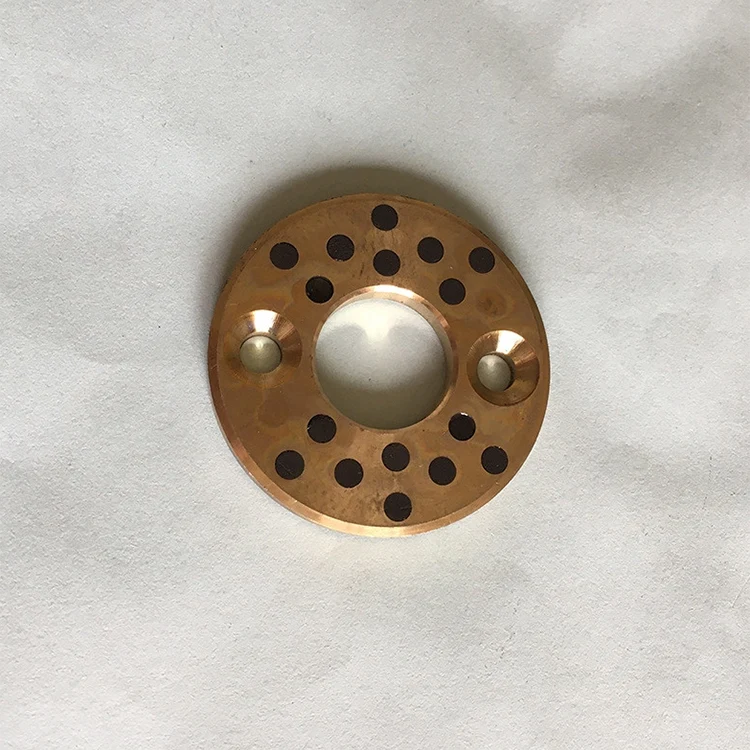

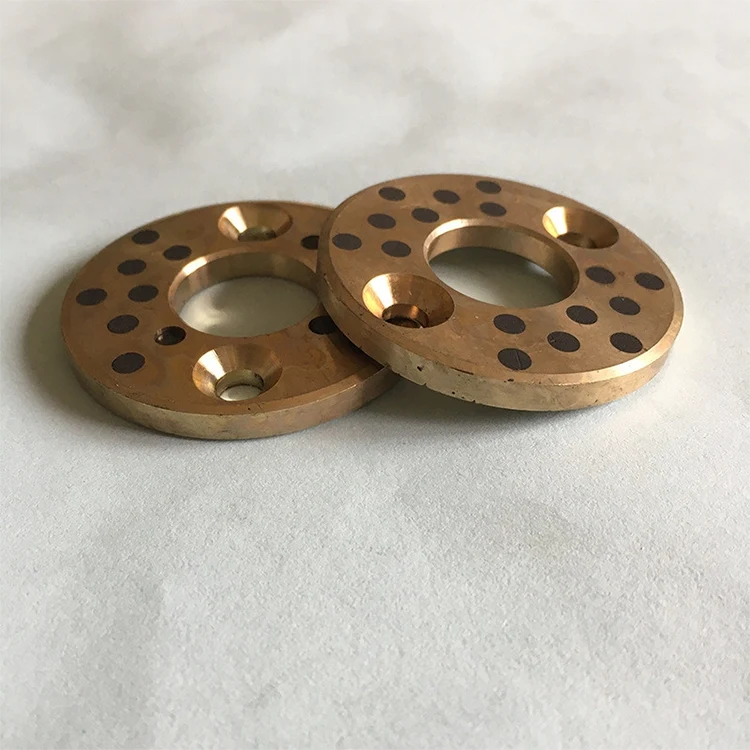

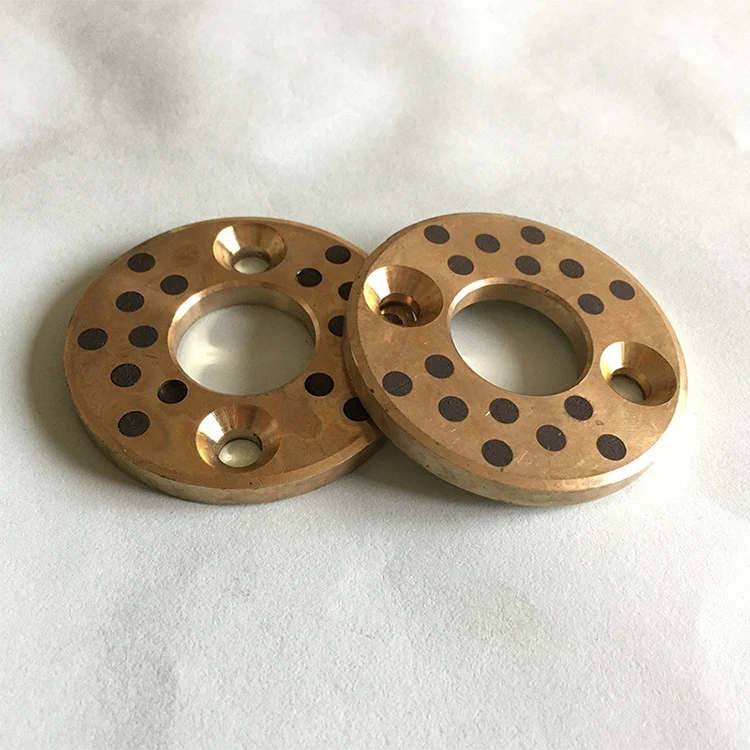

Solid Lubricant Embedded JTW-10 Thrust Bearing Washer

Thrust Bearing Washer JTW-10 ZCuZn25Al6Fe3Mn3

Gasket JTW thrust gasket copper base solid inlaid self lubricating gasket graphite inlaid bearing bush

Thrust Bearing Washer JTW-10, Solid lubricant embedded thrust bearing washer is a new type made from strong brass and homogeneously embedded with solid lubricant in its body. It breaks through the limit of general bearing whose lubrication depends on an oil film. So it is suitable for high temperature, heavy-duty, anti-corrosion, or where oil is hard to be introduced. It's performance doubles both on hardness and wear-friction.

Graphite Thrust Bearing Washer is mechanically forced into the holes/grooves under extreme pressure. A film of lubricant is transferred to the shaft as it begins to turn. These bearings offer continuous lubrication over long periods without maintenance.

Material: ZCuZn25Al6Fe3Mn3

bronze thrust washer the size is based on bronze washer with graphite, which is Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.

Bronze thrust bearing support the axial load on the shaft in order to protect the more valuable bottom parts. They are designed to prevent movement along the axis of the shaft. bronze thrust bearing can be grooved to provide additional lubrication distribution.

Material Features

Allows maintenance-free and long-life operation;
Suitable for high static and dynamic loads;
With low and smoothly coefficient of friction and without stick-slip effects;
Suitable for dirty, corrosion, impact load and edge loading;
The base material provided a good shock-absorbing capacity;
Can be used over a large temperature range;
Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
With low wear rate and long life service.

Applications

continuous casting rolling machine

mining machinery

shipping machinery

turbine

injection machinery

auto mould and so on...

Service

Under technical dry running conditions, the bearing surface is designed with thick running-in film which enables the solid lubricant to be transferred to the counter material at the first contact.
