                                    Solid Lubricant Plugs Casting Copper Metric Bearings
                                    • Solid Lubricant Plugs Casting Copper Metric BearingsSolid Lubricant Plugs Casting Copper Metric Bearings

                                    Solid Lubricant Plugs Casting Copper Metric Bearings

                                    Top Bearings is a leading China Solid Lubricant Plugs Casting Copper Metric Bearings manufacturers, suppliers and exporter.

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is a leading China Solid Lubricant Plugs Casting Copper Metric Bearings manufacturers, suppliers and exporter.


                                    Product Parameter

                                    Material:

                                    Tin-Copper With Solid Lubricant Plugs

                                    Application:

                                    On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th

                                    Types:

                                    Cylinder Bearings With Flange

                                    Name:

                                    JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings

                                    Hardness:

                                    ≥60 HB

                                    Working Temperature Limits:

                                    -40~+300℃

                                    High Light:

                                    solid lubricant bearings

                                    flanged bronze bearings



                                    Tin-Copper With Solid Lubricant Casting Plugs Bronze Bearings with Flange

                                    Tin-Copper With Solid Lubricant Plugs Casting Bronze Bearings with Flange is backed with Tin-Copper. The surface is regularly and finely machined with sockets in which particular solid lubricant plugs is filled.

                                    Embedded in the falnge part because there is no lubricant, not axial load.



                                    JDB Bearings Copper based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate shaft using fresh products.



                                    JDB Bearings with Flange is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.



                                    Chemical Compositions

                                    Product NO.

                                    Chemical Compositions

                                    TOB 052

                                    Cu

                                    Sn

                                    Pb

                                    Zn

                                    Al Si

                                    S

                                    Fe

                                    P

                                    Ni

                                    Sb

                                    83~88

                                    4.0~6.0

                                    4.0~6.0

                                    4.0~6.0

                                    <0.01

                                    <1.0

                                    <0.3

                                    <0.1

                                    <2.0

                                    <0.2


                                    Physical and Mechanical Performance

                                    Performance Index

                                    Data

                                    Performance Index

                                    Data

                                    Density

                                    g/cm³

                                    8.7

                                    Hardness

                                    HB

                                    ≥60

                                    Linear Expansion Coefficient

                                    10^-5/℃

                                    1.6-1.8

                                    Flexibility Coefficient

                                    KN/mm²

                                    85-115

                                    Heat-conducting Coefficient

                                    W/(m·k)

                                    46-63

                                    Tensility

                                    %

                                    ≥15

                                    Tensile Strength

                                    N/mm²

                                    ≥240

                                    Friction

                                    Oil Lubrication

                                    μ

                                    0.03

                                    Anti-compact Tenacity

                                    ≥KJ/m^3

                                    100-200

                                    Dry Friction

                                    0.16



                                    Application Condition Limits

                                    Lubrication Conditions

                                    Non- Lubrication

                                    Periodical Lubrication

                                    Consecutive Lubrication

                                    Working Temperature Limits

                                    -40~+300

                                    -40~+150

                                    -40~+150

                                    Max. Load pressure

                                    N/mm²

                                    40

                                    40

                                    40

                                    Max. Linear Velocity

                                    m/s

                                    0.40

                                    0.85

                                    1.00

                                    Max. PV Value

                                    N/mm²·m/s

                                    1.00

                                    1.65

                                    2.00

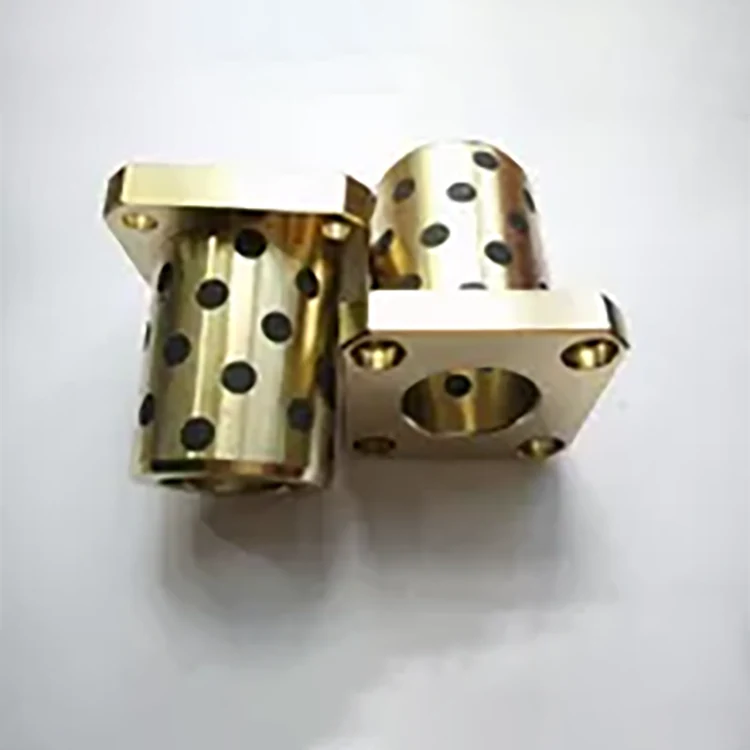

                                    Solid Lubricant Plugs Casting Copper Metric Bronze Sleeve Bearings With Flange 0



                                    Solid Lubricant Plugs Casting Copper Metric Bronze Sleeve Bearings With Flange 1
