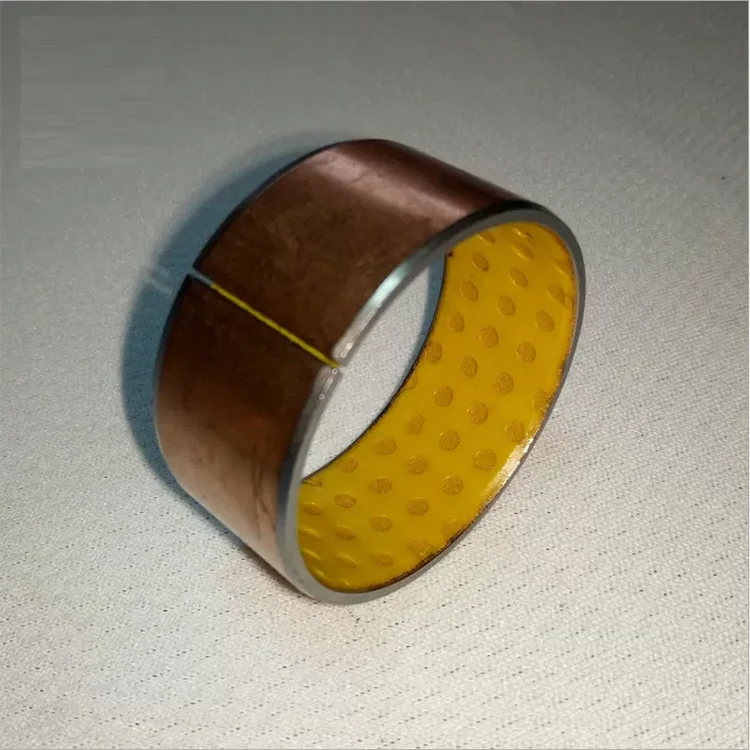

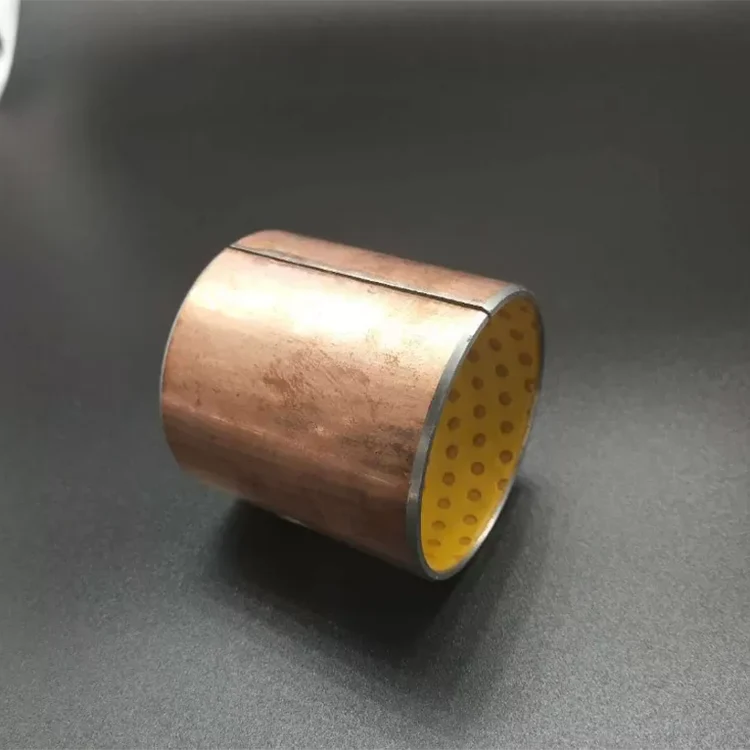

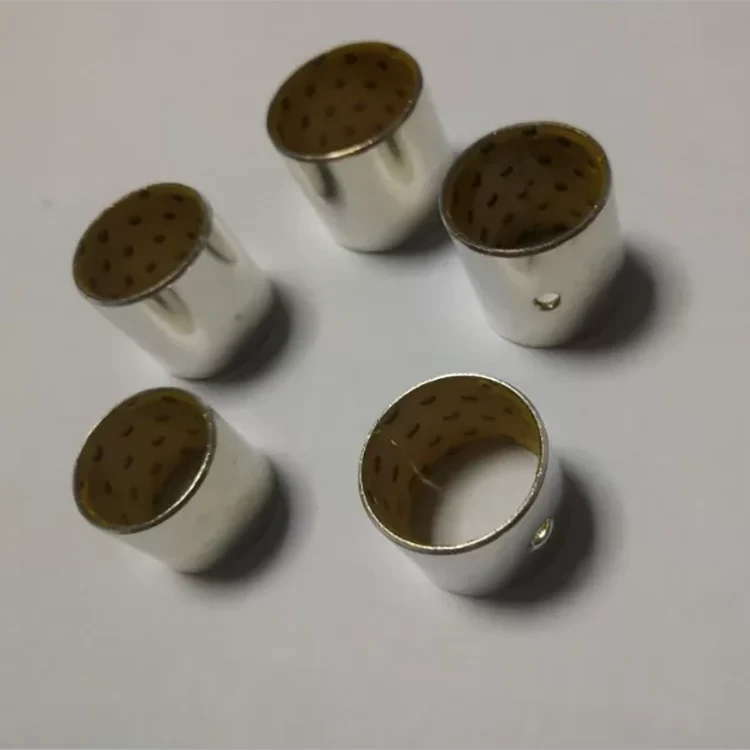

Steel Backing Composite Polymer Bearings

Composite Polymer Plain Bearings / Tribology Technology Material Strips
Composite Technology Bushing & Plain Bearings Sourcing Online Bushing


Surface Technology

Electroplating: copper, tin, zinc, etc.

Brand	TOP BEARINGS
SKU	pom bushing
Base material	Steel/Bronze
Maximum temperaturet	-40°C-300°C
Max Load Capacity P	70-250N/mm²
Coefficient of friction u	0.05-0.20u



Application Feature

Good load capacity and anti-wear.

It is used in high load capacities and low speed with rotational,oscillating or frequent stop-start motion.

It can work for a long time without oil in the condition of boundary lubrication,under oil or grease lubrication interval,the working-life will be longer.

It is machinable for the thicker of POW.

The bushes can be applied in auto chassis,forging machine,metallurgical,civil engineering,power station,strip rolling industries etc.

It is widely used in the machine where Lead is unacceptable.



Material organization


Advantages

• agricultural equipment

• construction machinery

• material handling equipment

• home appliances and consumer goods


Lubrication
POM composite plain bearings are designed to operate under marginal lubrication conditions. The sliding surface of these plain bearings contains grease reservoirs which should be filled prior to installation. It is not necessary to relubricate these plain bearings, but the presence of a lubricant can extend the plain bearing service life considerably. To protect the mating surface against corrosion, grease can be applied periodically.

Characteristics
Permissible load (dyn/stat), N/mm2: 120 (v ≤ 0,02) / 250
Permissible sliding velocity, m/s: 2,5 (p ≤ 1,0)1)
Friction coefficient m: 0,02 .. 0,20
Temperature range, °C: –40 .. +110
Shaft tolerance: f7 – h8
Housing tolerance: H7
Shaft roughness Ra, mm: 0 .. 0,8
Shaft hardness, HB: 150 – 60
0

Tribology is the science of friction, wear and lubrication between moving surfaces.Material technology and material surface engineering play a key role in solving friction problems.

Steel + Cu + polymer

Steel + copper

Copper + polymer

Steel+polymer

Polymer and polymer

Heat treatment: phosphating frequency quenching etc.

Spray: POM MoS2

Integrated Condition Test

Motion mode: rotary motion, swing motion, reciprocating motion

Test load: 1-100mpa

Test speed: 1-10000rpm

Lubrication condition dry friction oil lubrication water lubrication

Composite Polymer Plain Bearings is used steel-backing as its structure, sintered porous bronze as its interlayer, surface inlaid the modified POM. Suitable for marginally lubricated and dry operation on the conditions of lubrication indents grease. It has been widely applied to metallurgical machinery, Mine machinery, water conservancy machinery, vapor locomotive, building machinery, agriculture machinery, steel rolling industry etc.
