Strengthening Copper Metric Bronze Bushings
Top Bearings is Strengthening Copper Metric Bronze Bushings manufacturers and suppliers in China who can wholesale Strengthening Copper Metric Bronze Bushings. We can provide professional service and better price for you. If you interested in Strengthening Copper Metric Bronze Bushings, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Send Inquiry
Product Description
Top Bearings is Strengthening Copper Metric Bronze Bushings manufacturers and suppliers in China who can wholesale Strengthening Copper Metric Bronze Bushings. We can provide professional service and better price for you. If you interested in Strengthening Copper Metric Bronze Bushings, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Product Parameter
|
Material: |
Strengthening Copper With Solid Lubricant Plugs |
Application: |
Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Etc. |
|
Types: |
Slide Block |
Name: |
JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings |
|
Hardness: |
≥210 HB |
Working Temperature Limits: |
-40~+300℃ |
|
High Light: |
aluminum bronze bearings , flanged bronze bearings |
||

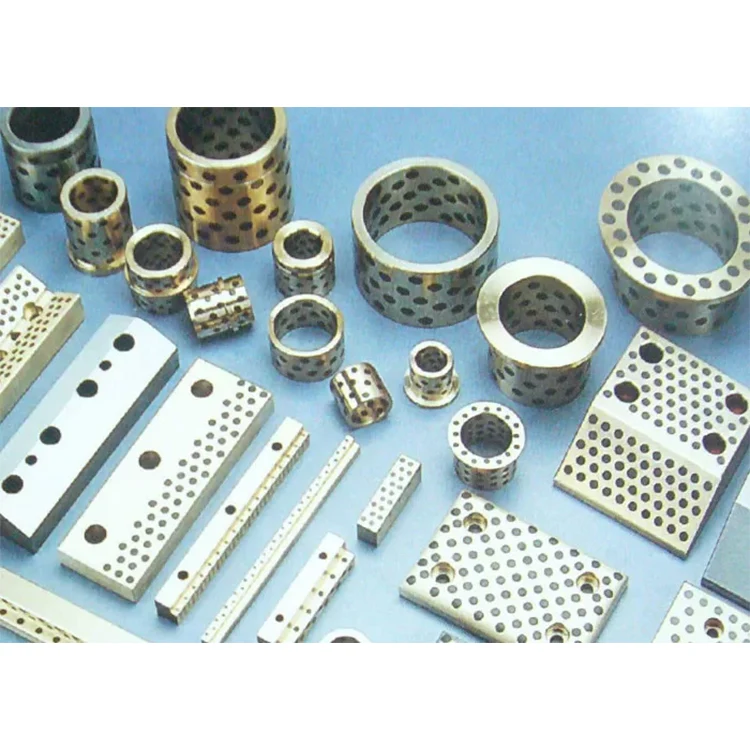

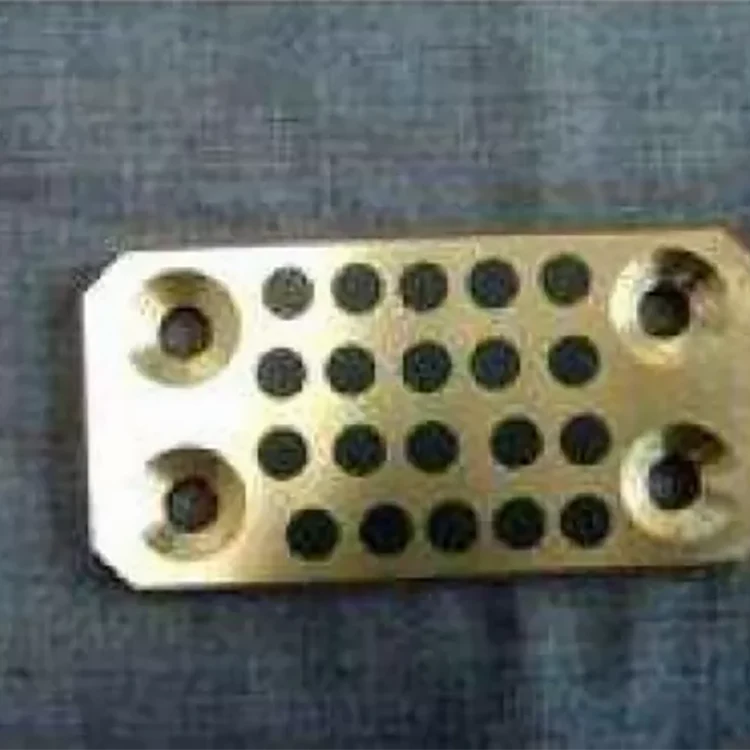

Strengthening Copper With Solid Lubricant Plugs Casting Bronze Slide BlockJDB Slide Block is backed with high strength copper-based that has good physical performance and good capability for casting.
Copper based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.JDB Copper Bearings is a special formulation of high strength copper-based body surface at a certain angle and density of embedded solid lubricant specially formulated by precision machining.
Both vertical and horizontal direction of motion direction.
By made mid-sized holes in order and then insert the solid lubricant Plugs into the holes in the Copper bushing to apply the bushings under oil-free conditions.Strengthening Copper + Solid Lubricant Plugs Slide Block is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.
What’s more, the Copper backing has pretty good anti-erosion ability in air, fresh water and seawater. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled.OILES 500# Slide Block can be used with rotary, reciprocating shaking motion and movement.
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
TOB 050 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Physical and Mechanical Performance
|
Performance Index |
Data |
Performance Index |
Data |
|||
|
Density |
g/cm³ |
8.2 |
Hardness |
HB |
≥210 |
|
|
Linear Expansion Coefficient |
10^-5/℃ |
1.6-2.0 |
Flexibility Coefficient |
KN/mm² |
120-140 |
|
|
Heat-conducting Coefficient |
W/(m·k) |
38-55 |
Tensility |
% |
≥12 |
|
|
Tensile Strength |
N/mm² |
≥755 |
Friction |
Oil Lubrication |
μ |
0.03 |
|
Anti-compact Tenacity |
≥KJ/m^3 |
400-500 |
Dry Friction |
0.16 |
||
Application Condition Limits
|
Lubrication Conditions |
Non- Lubrication |
Periodical Lubrication |
Consecutive Lubrication |
|
|
Working Temperature Limits |
℃ |
-40~+300 |
-40~+150 |
-40~+150 |
|
Max. Load pressure |
N/mm² |
100 |
100 |
100 |
|
Max. Linear Velocity |
m/s |
0.50 |
1.00 |
1.50 |
|
Max. PV Value |
N/mm²·m/s |
1.65 |
3.25 |
3.25 |
