DX POM Polymer Plain Bearings With Oil Groove

High quality DX POM Polymer Plain Bearings With Oil Groove is offered by China manufacturers Top Bearings. Buy DX POM Polymer Plain Bearings With Oil Groove which is of high quality directly with low price.

Product Parameter

Material:	Low-Carbon Steel + Porous Bronze + Yellow POM	Model Number:	High Performance Pom Oil-free Self-lubricating Bearings
Application:	For Klift, Trucks & Other Platforms.	Meterial:	Carton Steel , Bronze , POM Multilayer Material Type DU DX
Characteristic:	Low-maintenance And Maintenance-free Plain Bearings
High Light:	POM Polymer Plain Bearings, DX Polymer Plain Bearings, DX POM Bushing

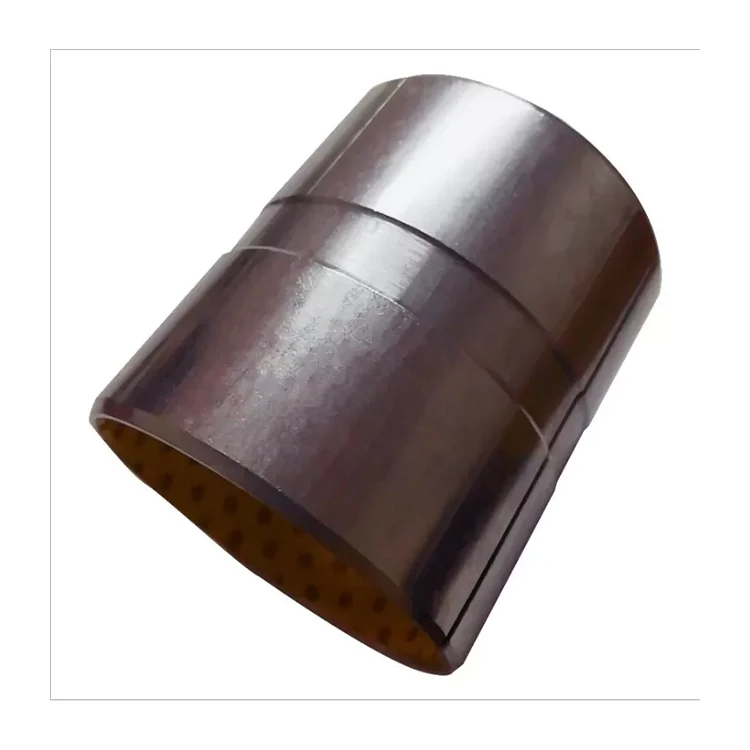

Dx Pom Polymer Plain Bearings With Oil Groove for klift, trucks & other platforms.An extensive inventory of bronze bushings offering customers direct delivery service. Fast direct delivery service for quality products.DX POM bushings were developed for lubricated applications and consist of three layers: a steel mantle and a sintered bronze layer impregnated and covered with a polyacetal (POM) bearing material.


Standard DX bush Components available from stock
Metal-Polymer Composite Bushing Material
Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents

• Lightly lubricated DX bushings for grease or oil lubricated applications

• Standard parts contain grease marks in the slip layer; single sliding layer available on request

• Optimal performance under relatively high loads and low speeds

• Suitable for linear, oscillating and rotary movements

• Wide range of parts available from stock

Bearing forms available in standard dimensions

• Cylindrical bushes

• Flanged bushes

• Thrust washers

• Sliding plates

POM Composite Bearing, Replacement DX Bush Bearing | Self-lubricating Composite Bushings

• • maintenance-free operation

• • very good frictional properties

• • high load capacity

• • high sliding speed

• • low working clearance

POM Composite Bearing Benefits

applications
• Standard parts contain grease indents in the sliding layer; plain
sliding layer available by request
• Optimum performance under relatively high loads and low speeds
• Suitable for linear, oscillating and rotating movements
• Wide range of parts available from stock


Pom Composite bushing Characteristics

 • DX provides maintenance free operation • DX has a high pv capability • DX exhibits low wear rate • Seizure resistant • Suitable for temperatures from -40 to +120 °C • High static and dynamic load capacity • Good frictional properties • No water absorption and therefore dimensionally stable • Compact and light • Suitable for rotating, oscillating, reciprocating and sliding movements • DX bearings are prefinished and require no machining after assembly

These DX Bush Bearings are widely used in the Machinery Industry

(Inside Diameter x Outside Diameter x Length)

POM composite bushings are referred to as prelubricated because their material is designed to operate with marginal lubrication. These bushing type effectively fills the gap between fully lubricated and dry sliding bushings.We offer a wide range of straight POM composite bushings. The advantages of these sleeves are:

• Marginally lubricated bearing material for grease or oil lubricated

Pom Composite lubricated bushing can be used for grease or oil lubrication applications, or in an oil-free environment

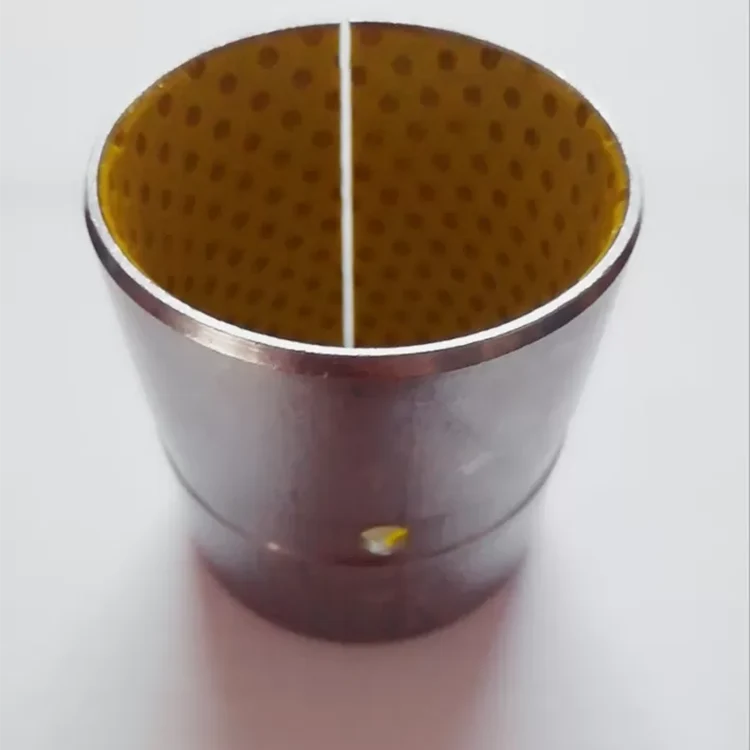

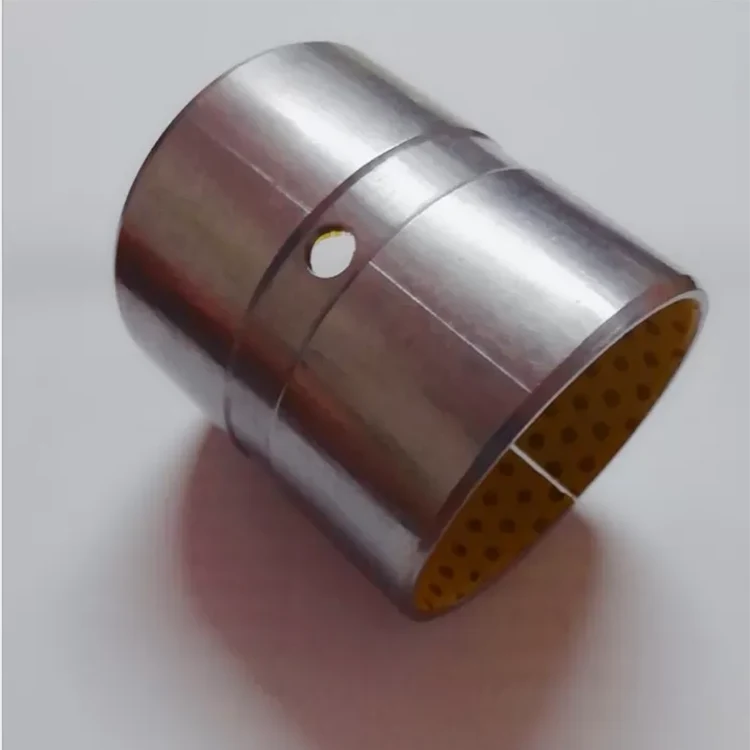

The standard parts contain grooves in the sliding layer of the contact parts, which can store grease or friction debris.

Smooth sliding layer can be designed and provided upon request

Composite bearing sleeve has the best performance under relatively high load and low speed, and the highest relative life

Composite bearings are used in environments of linear, oscillating and rotational motion

All kinds of bearing parts are available from stock



A brief introduction to polyformaldehyde (POM) materials

1. With high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
4. Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.

8. with their own lubrication, good wear to hold;

9. Excellent dime



Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C

Wrapper Bronze Bearing characteristics

Performance indicators		Date
Maximum load	Static load	250N/mm²
	Dynamic load	150N/mm²
Maximum linear velocity V	Grease lubrication	2.5m/s
High PV value	Grease lubrication	2.8N/mm²・m/s
Coefficient of friction	Grease lubrication	0.05~0.25
The use of temperature		-40℃～+130℃
Coefficient of thermal conductivity		4W/m・K
Coefficient of thermal expansion		12×10-6/K

Logistics and transportation equipment applications

The noise of traditional bearing, short maintenance cycle and service life, and high maintenance cost limit the normal operation time of equipment, especially transportation equipment and field operation equipment. The application of VIiPlUS POM BUSHING self-lubricating bearing can not only solve these problems, but also improve the comfort level of equipment operation.For example, the use of lubricating oil or one-time painting can solve the process maintenance and high shutdown costs, while avoiding environmental pollution.Reliable, light and excellent bearing solutions Pom Composite Bushing,Pom Bushings,Pom Sleeve Bushing



Pom Composite Bushing are widely used in logistics applications

he railway, The inter-city rail, shipbuilding, space, Forklift truckT



Today, our light and maintenance-free bearings are used by all major commercial and military aircraft manufacturers and tier 1 suppliers for fixed and rotary wing aircraft. Our bearing solutions are used in a wide range of aeronautical applications, from the landing gear, to flight control and engines, to a variety of customized applications in the passenger and aerospace seats sector.Our aircraft bearing solutions are used in a variety of aerospace applications from landing gear, flight control and engines to passenger seats, as well as in a wide variety of customizations for the aerospace industry

shaft									housing							ID				OD				Wall thickness						Oil hole						L 0 -0.40
h8									H7							d				D				T						h-						10									12							15							20							25				30
10					0 -0.022				12			+0.018 0				10				12				0.980 0.955						4						1010									1012							1015							1020
12					0 -0.027				14			"				12				14				"						"						1210									1212							1215							1220							1225
14					"				16			"				14				16				"						"																						1415							1420							1425
15					"				17			"				15				17				"						"						1510									1512							1515														1525
16					"				18			"				16				18				"						"																						1615							1620							1625
18					"				20			+0.021 0				18				20				"						"																						1815							1820							1825
20					0 -0.033				23			"				20				23				1.475 1.445						"																						2015							2020							2025				2030
22					"				25			"				22				25				"						6																						2215							2220							2225				2230
24					"				27			"				24				27				"						"																						2415							2420							2425				2430
25					"				28			"				25				28				"						"																						2515							2520							2525				2530
28					"				32			+0.025 0				28				32				1.970 1.935						"																													2820							2825				2830
30					"				34			"				30				34				"																																			3020											3030
32					0 -0.039				36			"				32				36				"						"																													3220											3230
35					"				39			"				35				39				"						"																													3520											3530
36					"				40			"				36				40				"						"
37					"				41			"				37				41				"						"																													3720
40					"				44			"				40				44				"						8																													4020											4030
45					"				50			"				45				50				2.460 2.415						"																													4520											4530
50					"				55			+0.030 0				50				55				"						"
55					0 -0.046				60			"				55				60				"						"																													5520
60					"				65			"				60				65				"						"
