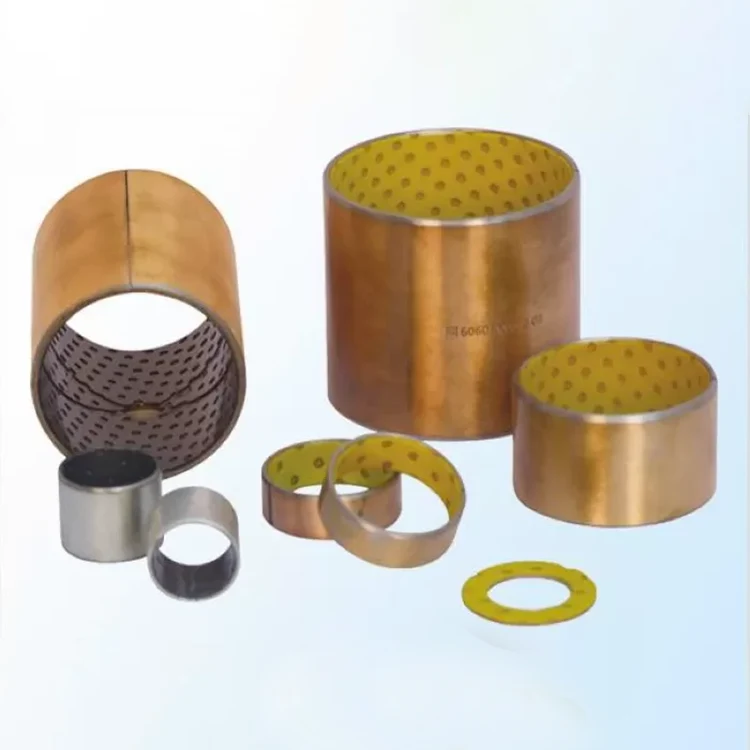

                                    DX Self Lubricating Sleeve Metal Bush
                                    • DX Self Lubricating Sleeve Metal BushDX Self Lubricating Sleeve Metal Bush
                                    • DX Self Lubricating Sleeve Metal BushDX Self Lubricating Sleeve Metal Bush

                                    DX Self Lubricating Sleeve Metal Bush

                                    Top Bearings is China manufacturers & suppliers who mainly produces DX Self Lubricating Sleeve Metal Bush with many years of experience. Hope to build business relationship with you.

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is China manufacturers & suppliers who mainly produces DX Self Lubricating Sleeve Metal Bush with many years of experience. Hope to build business relationship with you.


                                    Product Parameter

                                    Material:

                                    Low-Carbon Steel + Porous Bronze + Yellow POM

                                    Types:

                                    Wrapped Bushes, Thrust Washer

                                    Application:

                                    Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc.

                                    Hardness:

                                    >270 HB

                                    Working Temperature:

                                    -40~+120℃

                                    Max. PV Value:

                                    Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s

                                    High Light:

                                    pom bearing, sleeve bearing bushing

                                    DX Bushing, self-lubricating Bearing, sleeve Bearing, General Type Boundary Lubricating Bush


                                    Structure:

                                    1. POM with lead 0.3~0.5mm
                                    2. Porous bronze 0.2~0.3mm
                                    3. Steel backing 0.4~2.2mm
                                    4. Copper plating 0.008mm
                                    Characteristics:
                                    good load capacity & wear-resistant
                                    Suitable for linear, oscillating and rotating movements
                                    Optimum performance under relatively high loads and low speeds

                                    Availability:

                                    Standard cylindrical bushings, thrust washers, flanged bushing and strips are available
                                    Special designs are produced at short time
                                    Applications:
                                    Automotive: Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
                                    Industrial: Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.


                                    TOB020X Structure
                                        1.POM with lead 0.3~0.5mm
                                    2.Porous bronze 0.2~0.3mm
                                    3.Steel backing 0.4~2.2mm
                                    4.Copper plating 0.008mm
                                    Characteristics
                                    good load capacity & wear-resistant
                                    Suitable for linear, oscillating and rotating movements
                                    Optimum performance under relatively high loads and low speeds
                                    Availability
                                    Standard cylindrical bushings, thrust washers, flanged bushing and strips are available
                                    Special designs are produced at short time
                                    Applications

                                    Automotive: Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.

                                    Industrial: Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.



                                    Performance index Data Performance index Data
                                    Load capacity P
                                    (Dry friction)
                                    Static load 250 PV value limit Oil lubrication 2.8
                                    Dynamic load 140 Friction coef u Oil lubrication 0.05~0.25
                                    Max line speed V Oil lubrication 2.5m/s Thermal conductivity 4W/mk
                                    Working temperature -40~+130 Coefficient of linear expansion 12*10/K



                                    DX Self - Lubricating Sleeve Bearing Bushing , General Type Boundary Lubricating Metal Bush 0
