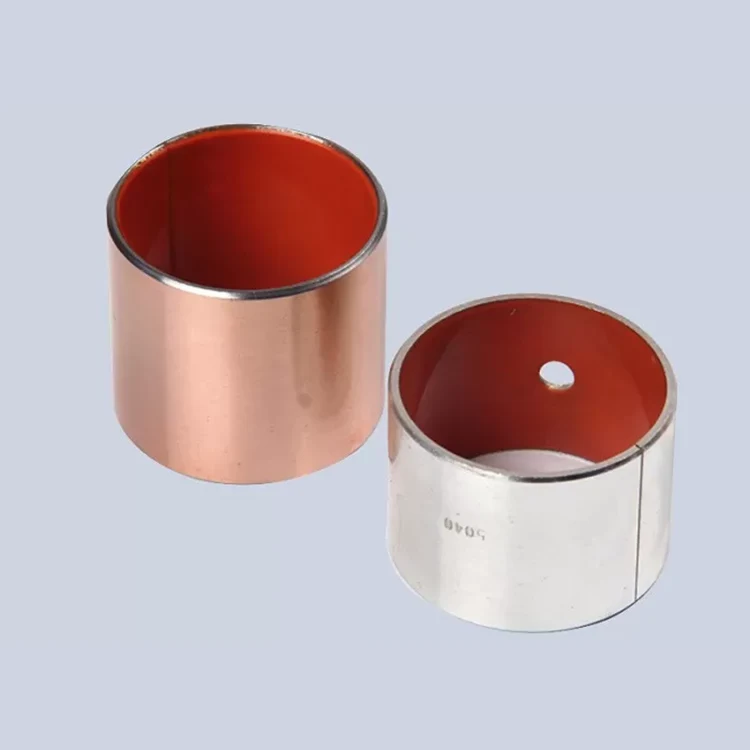

                                    Orange POM Boundary Lubricating Bearings
                                    • Orange POM Boundary Lubricating BearingsOrange POM Boundary Lubricating Bearings

                                    Orange POM Boundary Lubricating Bearings

                                    Top Bearings is China manufacturers & suppliers who mainly produces Orange POM Boundary Lubricating Bearings with many years of experience. Hope to build business relationship with you.

                                    Send Inquiry

                                    Product Description

                                    Top Bearings is China manufacturers & suppliers who mainly produces Orange POM Boundary Lubricating Bearings with many years of experience. Hope to build business relationship with you.


                                    Product Parameter

                                    Material:

                                    Low-Carbon Steel + Porous Bronze + Orange POM

                                    Types:

                                    Wrapped Bushes, Thrust Washer

                                    Application:

                                    Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling Steel Industry, Etc.

                                    Roughness:

                                    Ra=0.4~1.25

                                    Working Temperature:

                                    -40~+120℃

                                    Heat-conducting Coefficient:

                                    52 W/(m*k)

                                    High Light:

                                    boundary lubrication bearin,, pom bearing



                                    TOB-20 Marginal Bearings Steel + Bronze Powder + PTFE Layer Cojinetes DX
                                    Product Overview: Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviors, good resistance to shock loads.
                                    The TOB-20 composite bearing is constructed from steel backed POM/PEEK coated bronze.
                                    Its base plate is derived from premium low-carbon steel, and its middle part is sintered with a porous spherical copper powder layer.
                                    Surface of the compound bearing adopts wear-resistant lubricant that mainly consists of modified poly formaldehyde (POM) or polyether-ether- (PEEK).
                                    2. The oil holes on surface can not only store grease, but also effectively bury dust to extend the service life of the composite bearing. This product provides outstanding mechanical load-carrying capacity. Its copper powder layer can timely transfer heat produced in operation, while simultaneously increasing the binding strength of plastic layer and base plate.
                                    3. The POM or PEEK-based surface is wear-resistant and applicable for grease lubrication condition. Oil holes which can store grease are regularly arranged on surface, so that the optimum lubricant distribution on the whole bearing surface can be guaranteed.



                                    Application Characteristics

                                    1. With superb load-carrying and wear-resisting properties, the composite bearing is particularly applicable to the heavy-load, low-speed rotational motion, rocking motion, and the parts where fluid lubrication is not easily caused under load.
                                    2. This product can be used for a long time without refueling and maintenance under condition of boundary lubrication. Refueling allows the lifespan of the composite bearing to be extended.
                                    3. No lead or other high-pollution chemical substances are found in the wear-resistant material, which is fully compliant with the RoHS standard.
                                    4. A plastic layer on the surface of our product can leave a certain margin when a bush is machined. Automatic machining after punching is available so as to achieve better assembly dimensions.



                                    Structural Style of Manufactured Goods
                                    1. Standard structured products include the bushings, thrust washers, and the slide plates.
                                    2. Other non-standard products can be made on basis of the drawings provided by clientele.


                                    Description
                                    TOB-20 POM coated bearing is a standard item of our company. This type self-lubricating bushing has same material structure with other DX bushing. It's also called boundary lubricating bearing, DX bearing,SF-2 oilless bearing, plain sliding bearing and dry bushes.

                                    Material structure:
                                    POM 0.3~0.5mm
                                    Porous bronze 0.2~0.3mm
                                    Steel backing 0.4~2.2mm
                                    Copper plating 0.008mm


                                    Characteristics:
                                    Good load capacity & wear-resistant
                                    Suitable for linear, oscillating and rotating movements
                                    Optimum performance under relatively high loads and low speeds
                                    Lead free bushing can meet environment protection requirement


                                    Availability:
                                    Standard cylindrical DX bushing, DX thrust washers and DX strips are available
                                    Special designs are produced at short time


                                    Applications:
                                    TOB-20 self-lubricating bearing is widely used in the machine that Lead free is unacceptable, such as textile machines, auto operating parts auto chassis, forging machine, metallurgical and so on.
                                    Automotive Industry
                                    The bearing for automotive industry can be used in the pedal assembly, balance bush, brake caliper, kingpin bush, and the truck tailgate bush, etc.
                                    Logistics Machinery
                                    This product is ideal for use in the vans, vehicle-mounted cranes, forest machinery, packaging machinery, and more.

                                      Static 250N/mm2

                                    Max.Load
                                    Dynamic 140N/mm2
                                      Oscillating 60N/mm2
                                      Dry 2.8N/mm2.m/s
                                    PV limit Oil 22N/mm2.m/s
                                    Temp.limit -40℃∽+130℃


                                    Friction Coeff. 0.05∽0.25
                                    Speed limit 0.25m/s
                                    Thermal conductivity 2.03Kcal/M.br.c
                                    Coeff. Of linear expansion 51×10-6per℃
                                    Initial pre-lubrication at assembly required


                                    The oil holes on surface can not only store grease, but also effectively bury dust to extend the service life of the composite bearing. This product provides outstanding mechanical load-carrying capacity. Its copper powder layer can timely transfer heat produced in operation, while simultaneously increasing the binding strength of plastic layer and base plate. The TOB-20 composite bearing is constructed from steel backed POM coated bronze. Its base plate is derived from premium low-carbon steel, and its middle part is sintered with a porous spherical copper powder layer. Surface of the compound bearing adopts wear-resistant lubricant that mainly consists of modified poly formaldehyde (POM).
