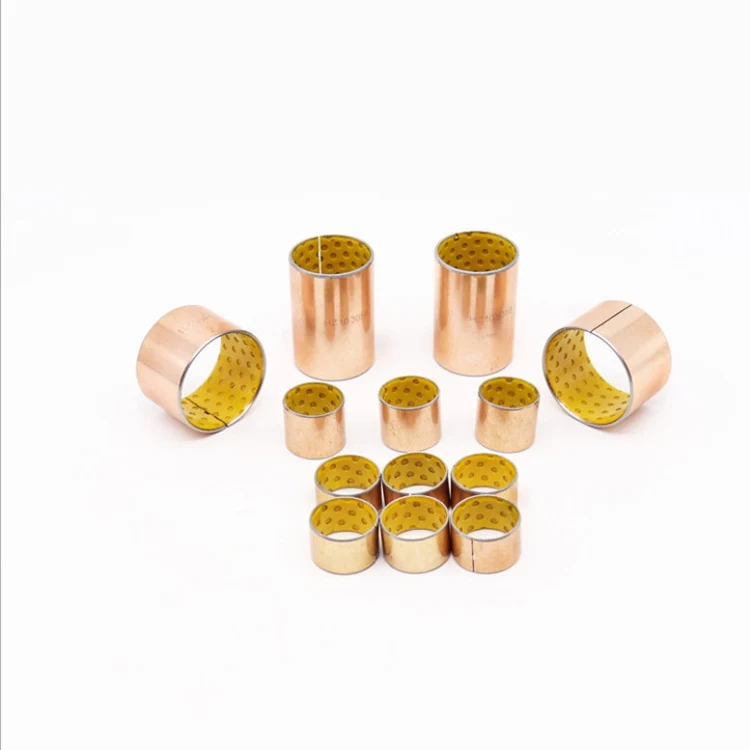

                                    Rolled Bronze Yellow POM Bearings Flanged Sleeve
                                    • Rolled Bronze Yellow POM Bearings Flanged SleeveRolled Bronze Yellow POM Bearings Flanged Sleeve
                                    • Rolled Bronze Yellow POM Bearings Flanged SleeveRolled Bronze Yellow POM Bearings Flanged Sleeve
                                    • Rolled Bronze Yellow POM Bearings Flanged SleeveRolled Bronze Yellow POM Bearings Flanged Sleeve

                                    Rolled Bronze Yellow POM Bearings Flanged Sleeve

                                    High quality Rolled Bronze Yellow POM Bearings Flanged Sleeve is offered by China manufacturers Top Bearings. Buy Rolled Bronze Yellow POM Bearings Flanged Sleeve which is of high quality directly with low price.

                                    Send Inquiry

                                    Product Description

                                    High quality Rolled Bronze Yellow POM Bearings Flanged Sleeve is offered by China manufacturers Top Bearings. Buy Rolled Bronze Yellow POM Bearings Flanged Sleeve which is of high quality directly with low price.


                                    Product Parameter

                                    Material:

                                    Metric Plain Bushings Of Triple-layer POM Composite Material

                                    Types:

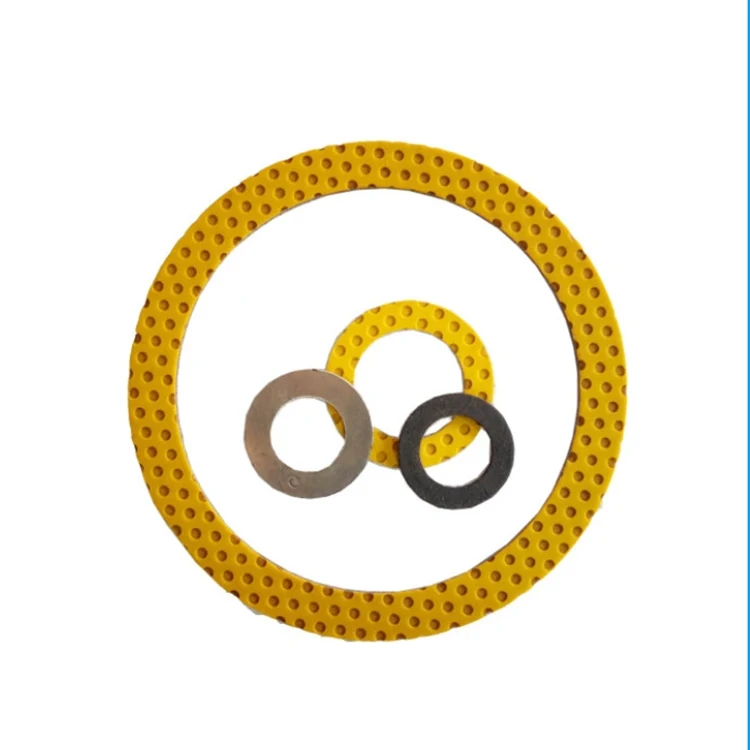

                                    Wrapped Bushes, Thrust Washer

                                    Application:

                                    Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc.

                                    Supplu Ability:

                                    Self-lubricating Dimensions Tolerance • Custom Bushings Assembly • Sliding Bearings Suppliers

                                    Working Temperature:

                                    -40~+120℃

                                    Max. PV Value:

                                    Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s

                                    High Light:

                                    Yellow POM Boundary Lubricating Bearings, Flanged POM Boundary Lubricating Bearings, Rolled POM Boundary Lubricating Bearings



                                    Rolled Bronze Yellow Pom Flanged Sleeve Bushing Boundary - Lubricating
                                    Rolled Bronze Bushings | Yellow Pom Bushings


                                    Suitable for grease or oil lubrication and all kinds of movement, good load capacity, robust and insensible to dirt.

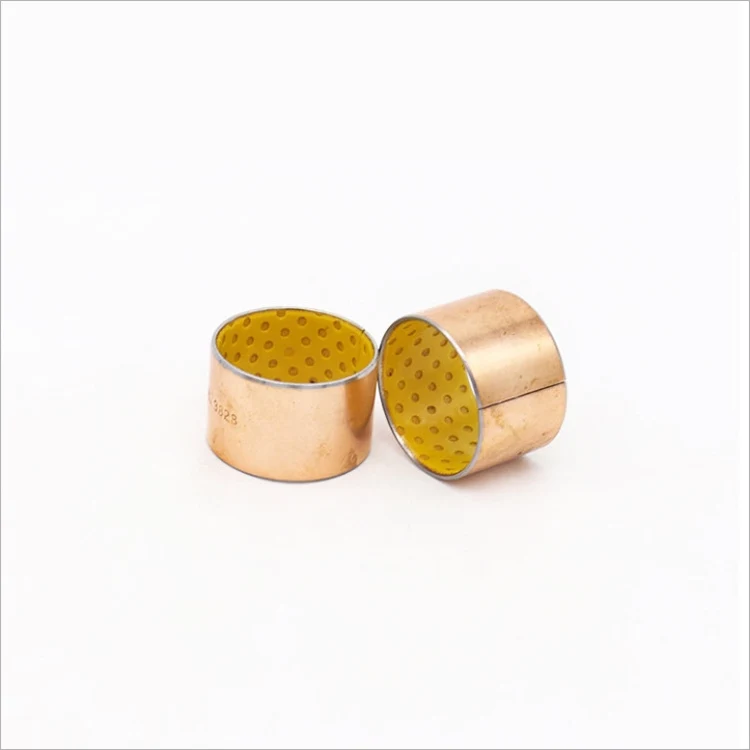

                                    Rolled Bronze Bushings with Indents

                                    TOP BEARINGS of rolled (wrapped) bushings is produced with diamond shaped lubrication indents on the bearing surface(s). These bushings are ideally suited for thin wall applications. The indents provide lubricant reservoirs that allow for excellent and prolonged service.For applications that are sealed or difficult to maintain, we also manufacture this product with self-lubricating graphite filled diamond or circular indents.They are light-weight and compact and are available as sleeve bushings, flange bearings, washers and plates. They are produced in both inch and metric sizes.


                                    Characteristics

                                    TOB-20 Boundary lubrication bearing High Quality DX Bushing POM Bush Chinese supplier
                                    · marginally lubricated bushings for grease or oil lubricated applications
                                    · Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
                                    · Optimum performance under relatively high loads and low speeds
                                    · Suitable for linear, oscillating and rotating movements
                                    · Wide range of parts available from stock
                                    Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.


                                    du bushing size chart

                                      Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
                                    0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
                                    0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
                                    0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
                                    0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
                                    0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
                                    0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
                                    0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
                                    0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
                                    0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
                                    0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
                                    0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
                                    0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
                                    0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
                                    0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
                                    0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
                                    0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
                                    0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
                                    0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
                                    0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
                                    0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
                                    0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
                                    0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
                                    1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
                                    1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
                                    1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
                                    1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
                                    1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
                                    1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
                                    1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
                                    1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
                                    1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
                                    1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
                                    1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
                                    1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
                                    1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
                                    1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
                                    1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
                                    1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
                                    1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
                                    1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
                                    1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
                                    1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
                                    1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
                                    1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
                                    1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
                                    1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
                                    1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
                                    1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
                                    1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
                                    1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
                                    1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
                                    1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
                                    1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
                                    1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
                                    1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
                                    1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
                                    1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
                                    2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
                                    2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
                                    2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
                                    2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
                                    2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
                                    2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
                                    2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
                                    2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
                                    2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
                                    2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
                                    2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
                                    2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
                                    2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
                                    2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
                                    2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
                                    2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
                                    2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
                                    2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
                                    2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
                                    2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
                                    2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
                                    2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
                                    3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
                                    3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
                                    3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
                                    3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
                                    3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
                                    3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
                                    3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
                                    3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
                                    3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
                                    3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
                                    3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
                                    3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
                                    3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
                                    3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
                                    3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
                                    4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
                                    4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
                                    4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
                                    4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
                                    4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
                                    4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
                                    4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
                                    4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
                                    4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
                                    5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
                                    5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
                                    5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
                                    5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
                                    5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
                                    5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
                                    5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
                                    5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
                                    5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
                                    5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
                                    5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
                                    5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
